N95 masks against Coronavirus COVID19 #HackThePandemic

Hospitals around the world are close to running out of N95 masks in the middle of the worst pandemic of XXI century! Our purpose as a company has always been related to making a positive impact and tackle #GlobalChallenges through #Innovation, #Nanotechnology and #AntimicrobialMaterials. Our purpose leads us to solve this problem in a low-cost, quick, and descentralized way through #DistributedManufacturing. We propose a #Reusable, #Customizable, #Modular, #Antimicrobial and #Antiviral #3Dprinted #RespiratorSystem made with #Copper3D high quality nanocomposite #PLACTIVE.

ABOUT NANOHACK

Our innovation is inspired by the scarcest product these days, the famous and scarce N95 masks.

Basically, there is a breakdown in the global stock of this product, and it is a basic necessity, especially for Healthcare personnel who are at the forefront of fighting this disease. In many countries the authorities have also recommended the use of these masks (or similar) on public transport. These masks, despite being effective, also have some problems such as a short lifecycle (about 8 hours), and have another even more serious problem. Respiratory viruses, specifically SARS-Cov-2 (COVID-19) can live up to 72 hours on different surfaces. This is a problem since using a conventional mask, at the end of the day we would have a high viral/bacterial load trapped within millimeters of our nose and mouth, further exposing ourselves to these dangerous microbes.

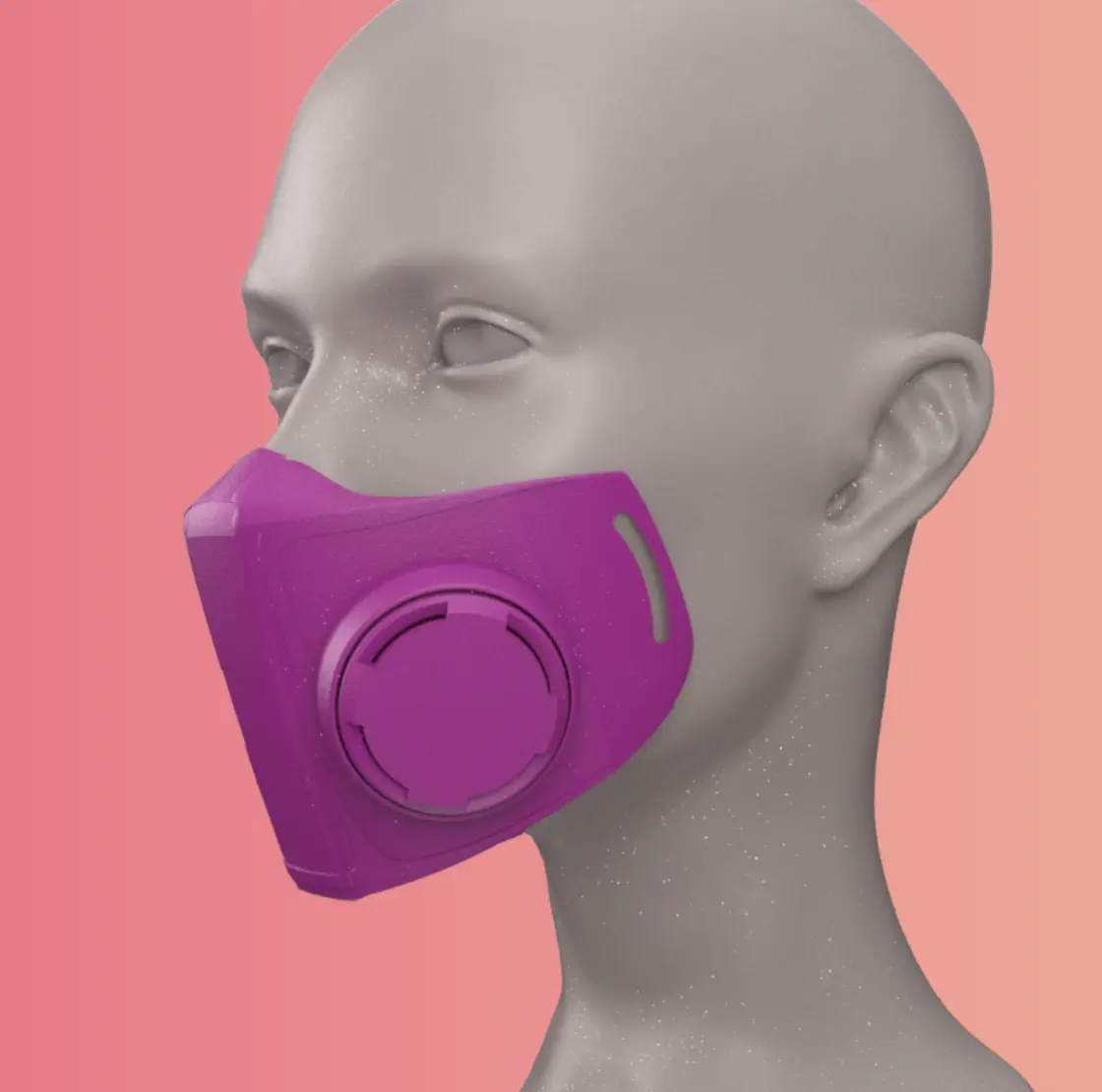

NANOHACK, THE OPEN SOURCE RESPIRATOR MASK

NanoHack was inspired by a great global pandemic. The most radical innovations are born from crises, which is why NanoHack is a unique design.

ANTIMICROBIAL/ANTIVIRAL

Manufactured with PLACTIVE® an innovative Nanocomposite developed with a high quality PLA and a patented, scientifically validated and highly effective Nano-Copper additive.

REUSABLE & RECYCLABLE

You can use this mask any times you want. The increasing use of single-used surgical masks and N95 respirators will have a detrimental effect in the ecosystem. To prevent this detrimental effect in our environment, NanoHack will be made with recyclable material.

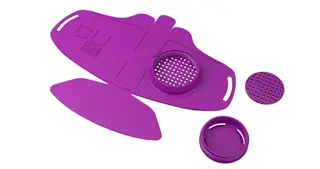

FLAT PATTERN

Facilitate manufacturing and transportation with massive shippings all over the world and to rural settings.

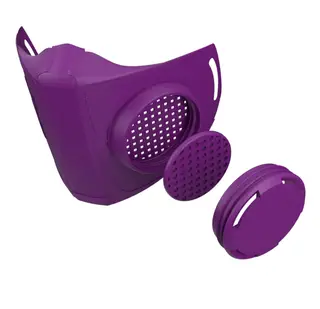

MODULAR FILTRATION SYSTEM

NanoHeck will incorporate a novel modular fine particle filtration system manufactured with a material using copper nanocomposite proven to deactivate viruses. This novel filtration system includes a several layers with different geometries to provide an effective fine particle filtration. Furthermore, this system can house third party filtration materials, such as non-woven propylene, clothing, sponges, or textiles.

THERMOFORMING CAPABILITIES

At 55º - 60º C to allow the use of hair dryers or warm water to give the correct shape of the anatomy of any face.

CONTROL OF THE FILTRATION AND AIR INTAKE

Prolong use of N95 respirators have shown to reduce lung capacity. These single-use respirators do not allow the regulation of air intake or particle size. NanoHack incorporates a modular filtration disc that can effectively regulate the air intake and the particle size. This system that can be customized by using third party filtration non-woven propylene, clothes, sponges, and different textiles to reduce the level of filtration.

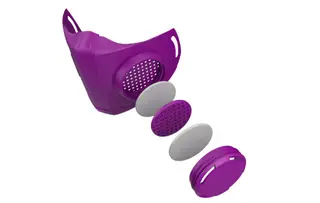

NANOHACK ASSEMBLY

NanoHack was conceived as a product that is 3D printed on a plane and then assembled by each user with very simple elements and procedures. Please follow the instructions to obtain a safe and correct use of NanoHack.
