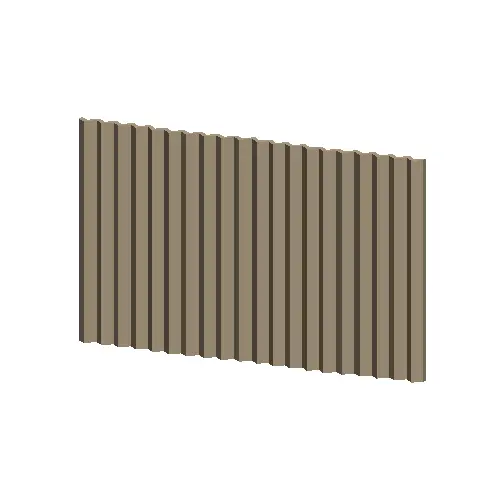

N Scale Corrugated Scrapyard Fence – Panels, Gates & Posts (1:160)

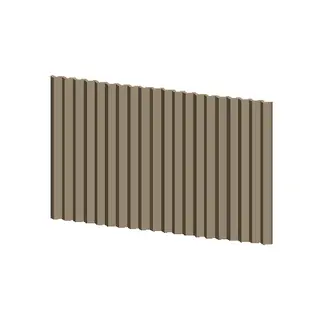

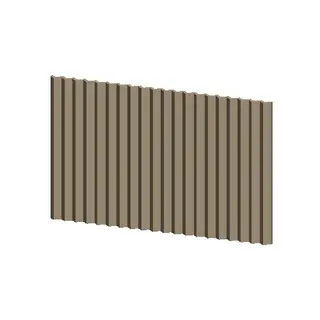

A modular corrugated sheet-metal fence kit in N scale (1:160) for scrapyards, junkyards, industrial lots and the rough side of town. The panels are corrugated on both sides, so the fence looks right from the street and from inside the yard. Mix standard, tall and damaged panels to build a fence that looks like it's been patched together for decades. What's Included (11 STLs) Panels - Standard panel: 24 × 14.5 mm (about 12.6 × 7.6 scale ft) - Tall panel: 24 × 18 mm (about 12.6 × 9.4 scale ft) - Barbed-wire-ready panel: standard size, made for adding barbed wire along the top

Gates - Gate leaf: 14 × 14.5 mm, matches the standard panels - Tall gate leaf: 14 × 18 mm, matches the tall panels

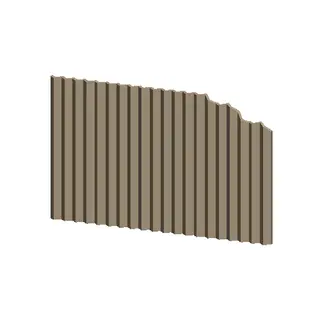

Damaged Panels - Sagging top - Dented - Broken corner

Posts - Standard post: 1.3 × 1.3 × 16 mm - Corner / end post: 1.8 × 1.8 × 16 mm - Tall post: 1.5 × 1.5 × 20 mm, for the tall panels and gates

Assembly Each panel is about 1 mm thick. Glue panels between posts using CA or plastic glue, with corner posts at the ends and turns and tall posts beside tall panels and gates. Print as many of each piece as you need for your fence line. Print Settings - Printer: resin (MSLA/DLP) works best for the fine corrugation - Layer height: 0.03–0.05 mm - Orientation: angle the panels 30–45° off the plate to keep the corrugation crisp and avoid suction - Supports: light or micro supports along one edge

Painting Tip Prime dark, then streak rust orange and brown down the corrugation and dry-brush galvanized gray on the ridges. A different color on a panel or two makes it look like a replacement. Add some grime along the bottom where dirt splashes up. Please post a make if you print it. I'd love to see your scrapyards!
