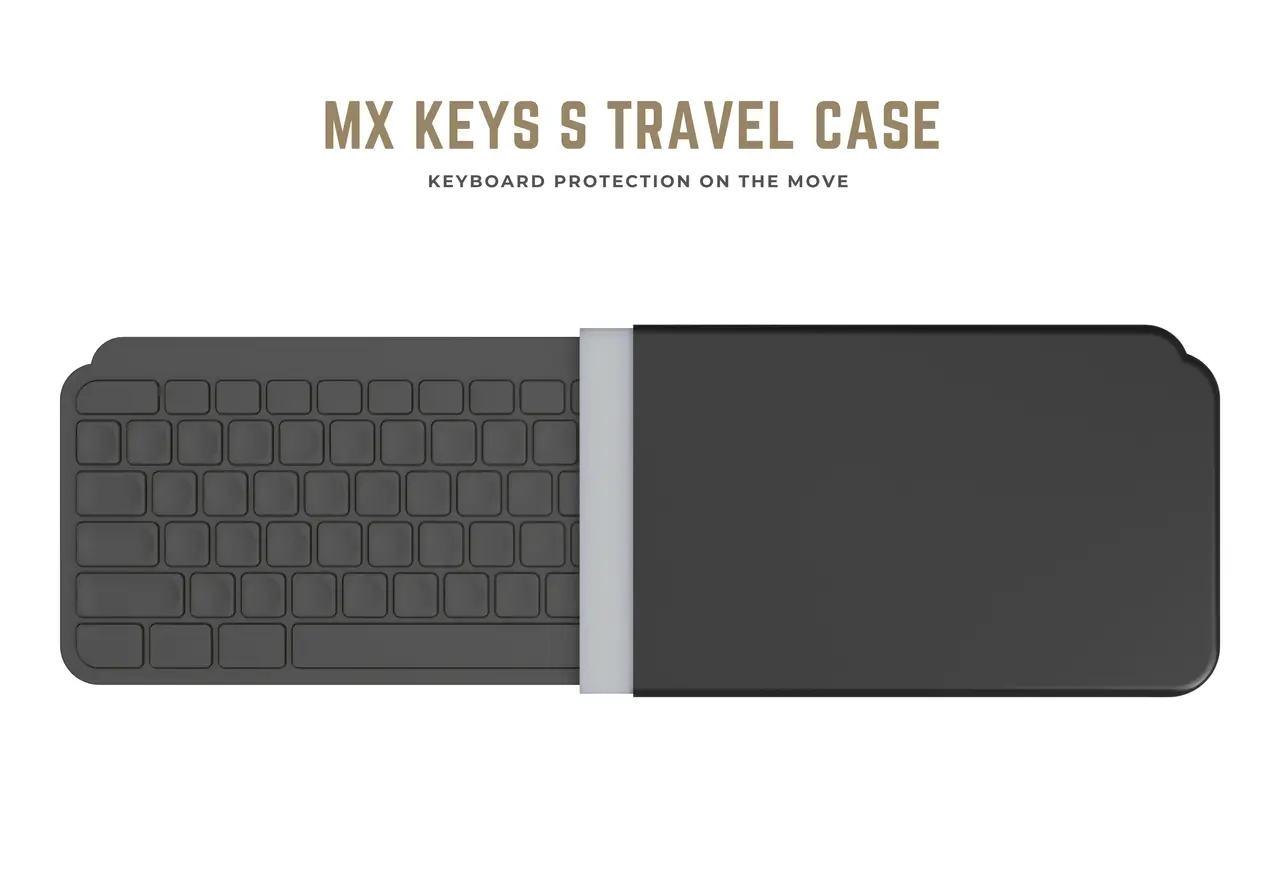

MX Keys S Travel Case
por dam.makes en Printables
3D-printable travel case for carrying and protecting the Logitech MX Keys S, including during wheelchair transport.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a dam.makes.
Archivos (9)
- Mx_Keys_Keyboard_Case.3mf 3MF · 533 KB
- Keyboard_Case.step STEP · 650 KB
- Keyboard_Center_Joint.step STEP · 36 KB
- Keyboard_TPU_Interface.step STEP · 66 KB
- Keyboard_Left Case Half.stl STL · 971 KB
- Keyboard_Right Case Half.stl STL · 1009 KB
- Keyboard_Center Joint.stl STL · 58 KB
- Keyboard_Left TPU Interface.stl STL · 28 KB
- Keyboard_Right TPU Interface.stl STL · 28 KB
- Categoría
- Tecnología
- Formatos
- 3MF, STEP, STL
- Descargas
- 1
- Publicado
Sobre este modelo

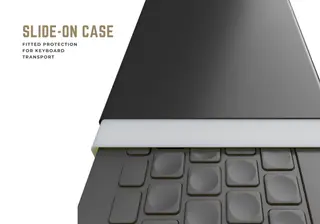

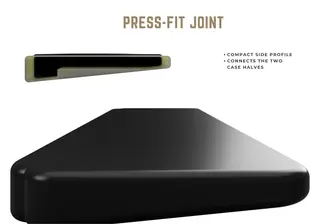

MX Keys S Travel Case About this design A 3D-printable travel case for the Logitech MX Keys S. It keeps the keyboard covered while moving between workspaces and is designed with wheelchair transport and repositioning in mind. Design and assembly The rigid case has two halves connected by a separate press-fit joint. The joint can also be glued to one of the halves. For the keyboard-contact groove, choose either EVA foam or the optional printed TPU interface. Attach the selected material to the case halves, not to the keyboard. Printing The rigid parts can be printed in PLA or any other suitable rigid material. The optional interface is intended for TPU. Recommended print settings for the rigid case parts: Fuzzy Skin point distance 0.2 mm, Fuzzy Skin thickness 0.1 mm, 3 walls, and 0.24 mm line width. Compatibility Designed for the Logitech MX Keys S. The keyboard itself requires no permanent modification.
Descripción original del autor, publicada en Printables.
