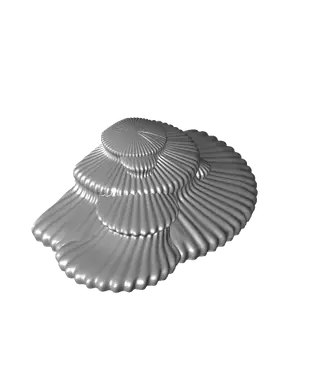

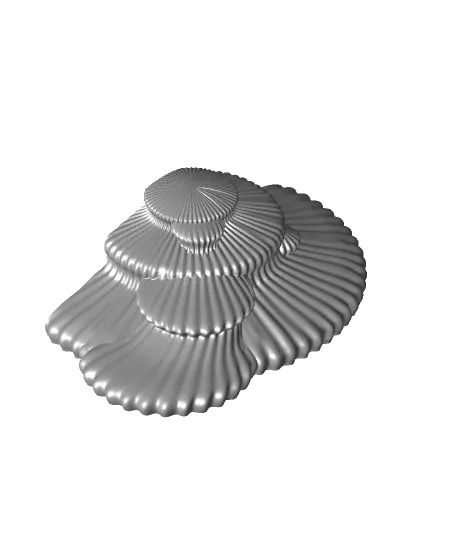

Mushroom shelf “Tinder”

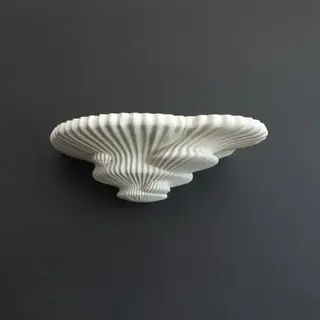

An organic shelf that “grows” from your wall. If you need a small shelf for anything you want to make visible every day (like your favorite Benchys or a plant) this is the one for you.

Versions - Tinderfungus_shelf_default: The default size - Tinderfungus_holder_default: the holder for the default size with a screw-hole diameter of 5.5mm - Tinderfungus_shelf_small: A mini version (60% scale) - Tinderfungus_holder_small: A holder for the mini version – simply scaling down the default version would make the holder unusable - Tinderfungus_shelf_no_holder: The Shelf without the cut-out intended for scaling down below the mini version – must be mounted with glue or tape - Tinderfungus_holder_for_upscaling: If you want a huge version, scale up the default shelf and use this holder – the only difference is the screw-hole size of 3mm that will be usable when scaled. - Tinderfungus_shelf_magnet_internal: A version for making a fridge magnet with mid-printing insertion (40% scale) - Tinderfungus_shelf_magnet_external: A version for making a fridge magnet (40% scale)

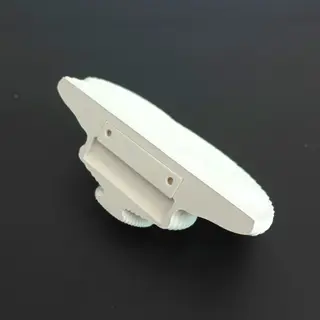

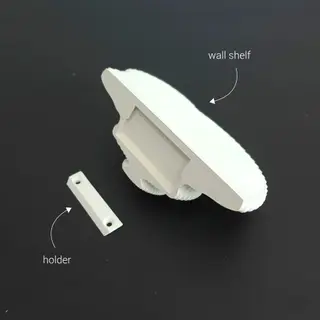

Instructions - Print the shelf and holder - You can either screw or glue it onto your wall. There are various glue or tape products for wall fixation out there. I used 3M Tape. Old fashioned screws and dowels are the most reliable fixation. - Insert the shelf by moving it horizontally onto the holder until the holder is completely inside the cutout. Then proceed to move the shelf down and the holder locks in. By lightly tapping on top of the shelf it will move down without much resistance. - Enjoy!

Instructions fridge magnet Magnet required: a 20 x 2 mm neodymium magnet

Internal magnet - The internal magnet shelf file has a cutout inside to place a magnet during the printing process. All mushroom wall shelf designs have the cutout at the same height – so you can print all of them at the same time. - Use a copper nozzle for printing (nonmagnetic) - Slice the file and check the layer height of the last layer before the bridging over the hollow cutout starts. With a 0.4mm nozzle it should be at layer 15. Implement a pause after that layer with your slicer. Start the print - At the pause insert the magnet and continue printing. As always be careful with magnets and electronic parts!

External magnet - Print the file - Glue in the magnet after the printing process – the cut-out is sized to let the magnet stand out just a bit

Size default assembled ca: 210 x 120 x 65 mm

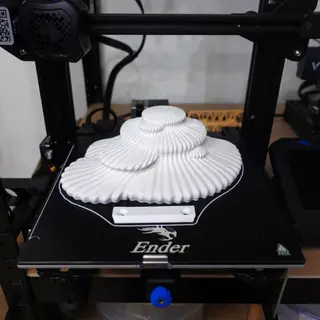

Print settings Required build volume: 200 x 200 x 100 mm (for beds between 200 and 220 mm width you need to rotate it a bit to fit) Material usage: 140g Print time: 13h

Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 3 Infill: 15% Build plate adhesion type: none
