Mushroom shelf “Oyster”

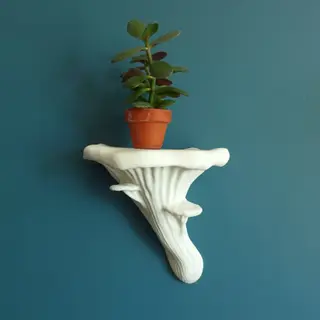

An organic shelf that “grows” from your wall. If you need a small shelf for anything you want to make visible every day (like your favorite Benchy or a small plant) this is the one for you.

Versions - Oysterfungus_shelf_default: The default size - Oysterfungus _holder_default: the holder for the default size with a screw-hole diameter of 5.5mm - Oysterfungus _shelf_small: A mini version (60% scale) - Oysterfungus _holder_small: A holder for the mini version – simply scaling down the default version would make the holder unusable - Oysterfungus _shelf_no_holder: The Shelf without the cut-out intended for scaling down below the mini version – must be mounted with glue or tape - Oysterfungus _holder_for_upscaling: If you want a huge version, scale up the default shelf and use this holder – the only difference is the screw-hole size of 3mm that will be usable when scaled. - Oysterfungus_shelf_magnet_internal: A version for making a fridge magnet with mid-printing insertion (40% scale) - Oysterfungus_shelf_magnet_external: A version for making a fridge magnet (40% scale)

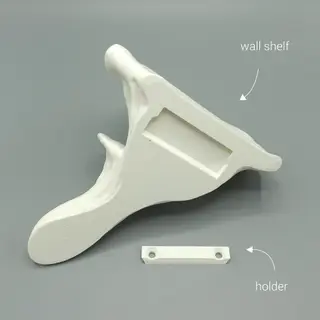

Instructions - Print the shelf and holder - You can either screw or glue it onto your wall. There are various glue or tape products for wall fixation out there. I used 3M Tape. Old fashioned screws and dowels are the most reliable fixation. - Insert the shelf by moving it horizontally onto the holder until the holder is completely inside the cutout. Then proceed to move the shelf down and the holder locks. - Enjoy!

Instructions fridge magnet Magnet required: a 20 x 2 mm neodymium magnet

Internal magnet - The internal magnet shelf file has a cutout inside to place a magnet during the printing process. All mushroom wall shelf designs have the cutout at the same height – so you can print all of them at the same time. - Use a copper nozzle for printing (nonmagnetic) - Slice the file and check the layer height of the last layer before the bridging over the hollow cutout starts. With a 0.4mm nozzle it should be at layer 15. Implement a pause after that layer with your slicer. Start the print - At the pause insert the magnet and continue printing. As always be careful with magnets and electronic parts!

External magnet - Print the file - Glue in the magnet after the printing process – the cut-out is sized to let the magnet stand out just a bit

Size default assembled: 100 mm x 155 mm x 160 mm

Print settings Required build volume: 160mm x160mm x 120 mm Material usage: 130g Print time: 11h

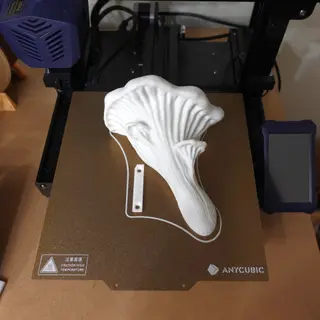

Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 3 Infill: 15% Build plate adhesion type: none
