Multitool
por Jonathan K en Thangs

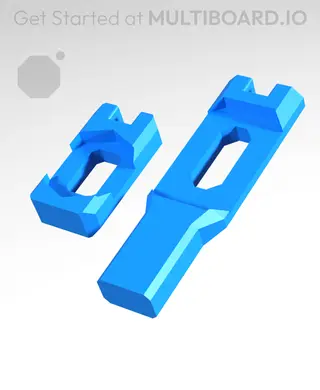

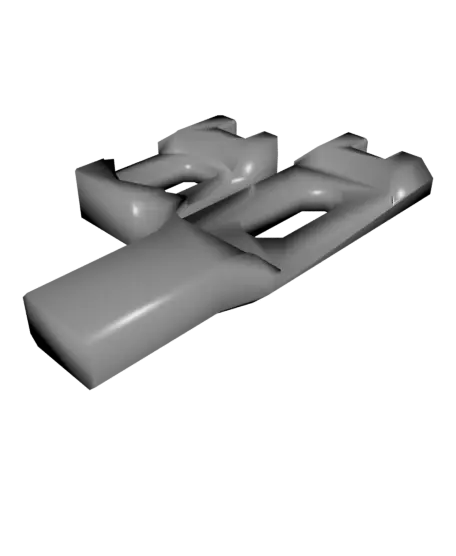

The Multitool is an all-in-one tool that allows you to screw in different types of threads. You can use it to…
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- Multitool.stl STL · 206 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 14,581
- Publicado
Sobre este modelo
The Multitool is an all-in-one tool that allows you to screw in different types of threads. You can use it to… - Screw “screw-in fasteners” into snaps. - Screw “Multigrid T bolts” into the bottom of Multigrid Bins. - Screw “Multigrid T bolts” into the side of Vertical Multigrid Bins, by connecting the Multitool pieces at a 90-degree angle. - Tighten flat-head bolts by using the small Multool piece (only works with medium and big thread bolts). - Tighten any “Flat Push-Fit Head, Bolt” by inserting the Multitool into the push-fit hole.
The two Multitool pieces click together for nice storage.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
Descripción original del autor, publicada en Thangs.
