Multiple Styles of Schrader Caps, Tire Valve Cap for Cars, Bikes, Carts, Etc.
por Echo116 en Printables
Schrader valve caps optimized for 3D printing.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Echo116.
Archivos (6)
- Tire Valve Cap Round Top.stl STL · 979 KB
- Tire Valve Cap Flat Top.stl STL · 593 KB
- O-Ring Tire Valve Cap SAE AS568-010.stl STL · 903 KB
- Tire Valve cap TPU Printable Gasket for SAE Size O-Ring.stl STL · 128 KB
- O-Ring Tire Valve Cap Metric 2x6mm.stl STL · 803 KB
- Tire Valve cap TPU Printable Gasket for Metric Size O-Ring.stl STL · 159 KB
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 3,686
- Publicado
Sobre este modelo

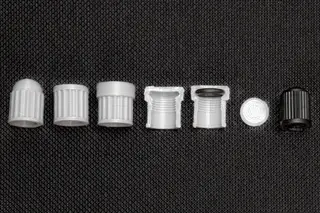

From left to right on 2nd image; 1: Round Top 2: Flat Top 3-5: O-Ring Sealing, Plus Cutaways, SAE AS 010 and Metric 2x6mm O-Ring Sized Versions 6: TPU Printable O-Ring Insert for SAE and Metric Sized Caps (Insert so 45 degree angle faces out) 7: Manufactured Cap for Reference All files are oriented for optimal printing, Caps use between .75-1g of filament each. Print Settings: Recommend to print in PTEG as PLA isn't as outdoor resistant. .6mm nozzle, .2mm layer height. Should print fine with a .4mm nozzle.
Descripción original del autor, publicada en Printables.
