Multiboard tray organizer.3mf
por brock.beckley en Thangs
Multiboard Bedside Tray Organizer:
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a brock.beckley.
Archivos (1)
- Multiboard tray organizer.3mf 3MF · 493 KB
- Categoría
- Herramientas
- Formatos
- 3MF
- Descargas
- 158
- Publicado
Sobre este modelo

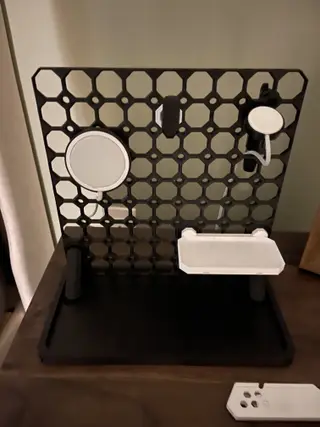

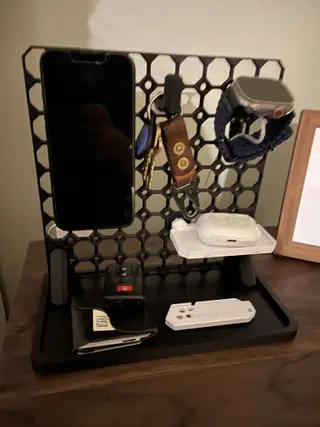

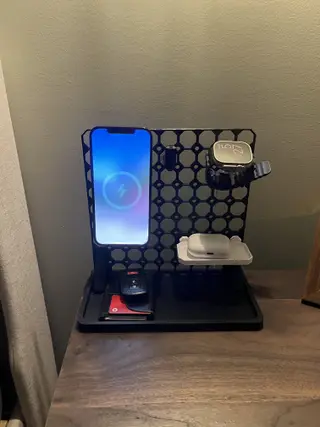

Multiboard Bedside Tray Organizer: This is an adaptable bedside organizer that allows you to build and change your organization with all the benefits of MULTIBOARD. I created this remix to utilize the MULTIBOARD system to avoid having a full reprint as phones change or the things I carry in my pockets change.

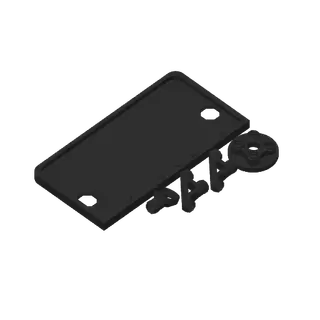

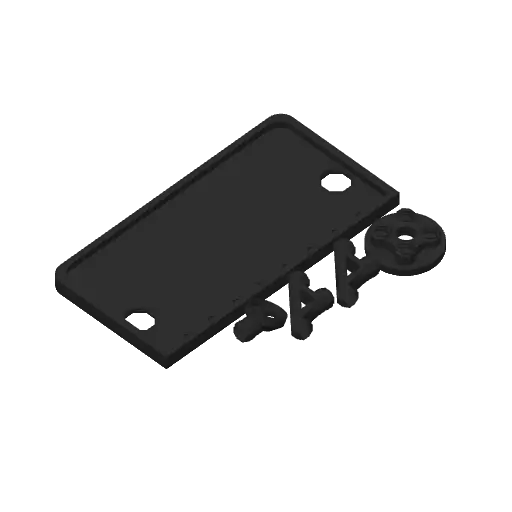

This print includes (1) Tray Base, (1) Bolt Lock apple watch charger, (1) Bolt Lock Apple Mag Safe Charger, and (2) Support Arm Brackets.
Additional parts are needed: (1) 9x9 MULTIBOARD border tile, (8) Small Thread MULTIBOARD Clips, (11) MULTIBOARD snaps, and (11) MULTIBOARD T-Bolts. + any additional MULTIBOARD accessories you desire.
Links: 9x9 Tile: https://thangs.com/designer/Multiboard/3d-model/9x9%20MU%20Single%20-%20Multiboard%20Border%20Tile-1320756 Small Thread Clips: https://thangs.com/designer/Multiboard/3d-model/Small%20Thread%20Clip-1368648?source=Recent Snaps: https://thangs.com/designer/Multiboard/3d-model/Moderate%2520Weight-Bearing%2520Snap-1311034 Locking Bolts: https://thangs.com/designer/Multiboard/3d-model/Locking%2520T-Bolt-1310062
Notes: - Threading the small thread clips is hard, I first thread them through the bottom of the tray and then found they were easier to thread through the top. - Build out the snaps/bolt lock on the 2 snap side of the bracket and attach to the 9x9 tile, place the snaps into the tray, and then click the tile into the tray and the brackets should line up to get the bolt locks in through the bottom. Remix: The remix consisted of utilizing the Multiboard small thread, snaps, and bolt locks in order to create a tray base that would snap into the existing MULTIBOARD ecosystem. there are two snap negatives and eight small thread negatives in the tray base that enable this. the bolt lock hub positive was used to create the brackets from the tray to the 9x9 tile and to allow the magsafe chargers to attach to the tile.
This is a remix of the multi board platforms (Tiles, and Bolt locks) https://www.multiboard.io/license#appropriate-credit
Descripción original del autor, publicada en Thangs.
