Multiboard Stem Spiral Clip (Bolt-Locked)

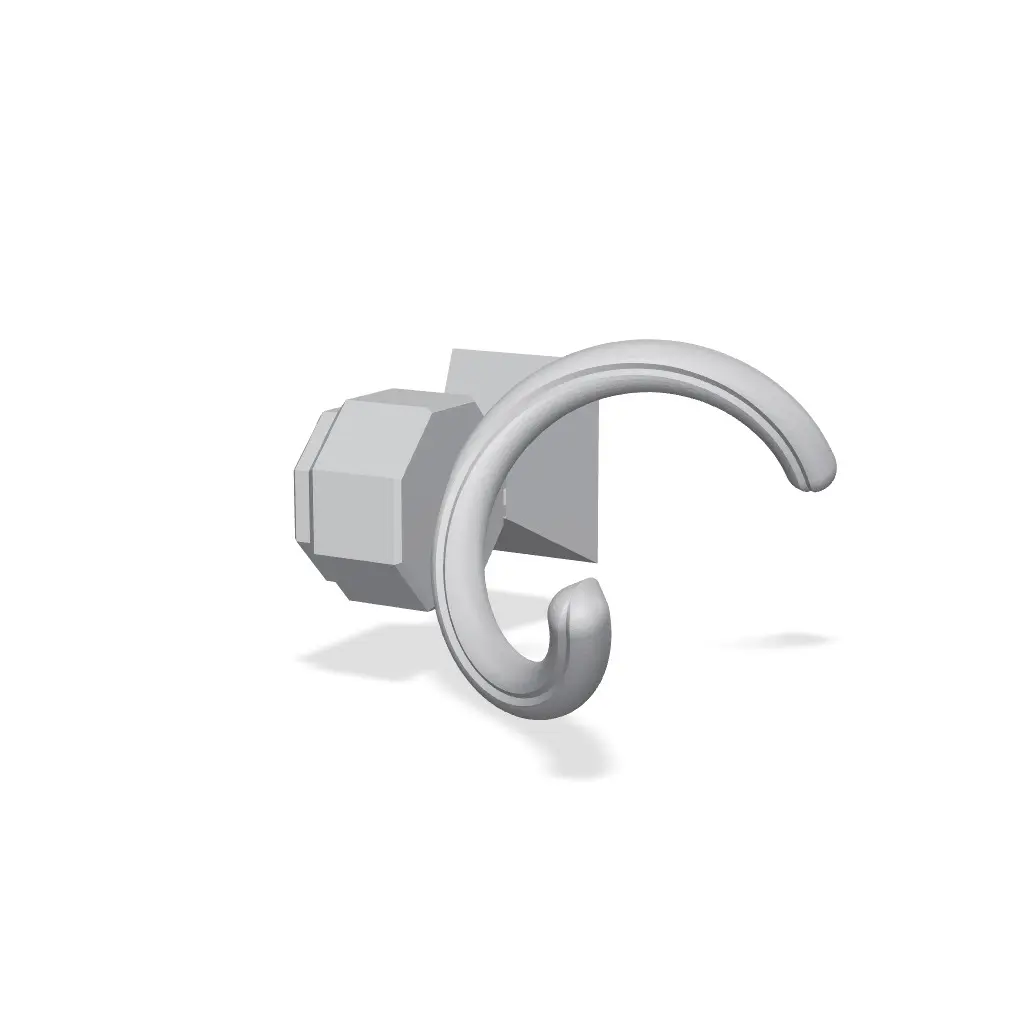

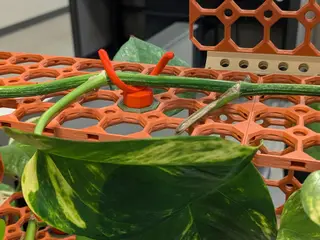

Multiboard bolt-locked stem spiral clip for philodendron and similar climbing stems. Mounts on a Regular Snap with the Bolt-Locked Insert and locking bolt; the one-turn spiral sits in front of the panel to guide the stem.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMultiBuild License
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Michael C.
Archivos (4)
- spiral_clip_v3_with_supports.stl STL · 1,0 MB
- spiral_clip_v3_P2S_PLAmatte_project.3mf 3MF · 665 KB
- spiral_clip_v3.stl STL · 1,0 MB
- spiral_clip_v3.step STEP · 779 KB
- Categoría
- Herramientas
- Formatos
- STL, 3MF, STEP
- Descargas
- 0
- Publicado
Sobre este modelo
Multiboard bolt-locked stem spiral clip for philodendron and similar climbing stems. Mounts on a Regular Snap with the Bolt-Locked Insert and locking bolt; the one-turn spiral sits in front of the panel to guide the stem.
Hardware (not included): Multiboard Regular Snap + Multiboard locking bolt.
Print: - Layer height: 0.2 mm - Walls: 3 - Infill: 15% - Supports: OFF (designed-in pedestal) - Brim: 5 mm outer
~25 min / ~4 g PLA. Optional Bambu project 3MF with settings baked in; otherwise use the with-supports STL / generic 3MF and do not auto-orient.
Remix of: Bolt-Locked Insert - STL Remixing Files https://thangs.com/designer/MultiBuild/3d-model/Bolt-Locked%20Insert%20-%20STL%20Remixing%20Files-1142253 by MultiBuild. License: MultiBuild License https://multibuild.io/license (personal, non-commercial; credit required). Tag: MultiboardRemix.
Non-trivial remix: adds the self-supporting spiral and breakaway pedestal; insert mating geometry is unchanged.
Descripción original del autor, publicada en Thangs.
