Multiboard - Shelf Generator

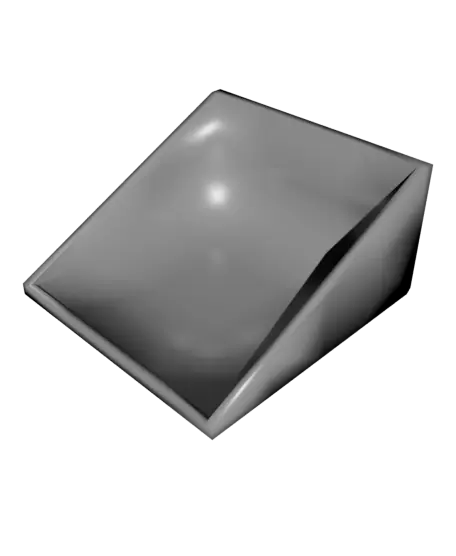

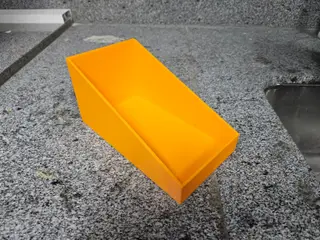

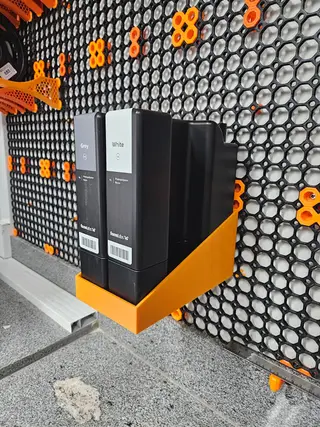

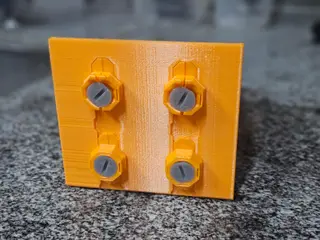

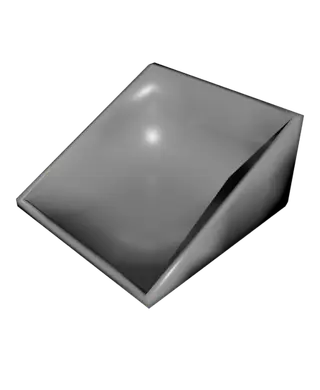

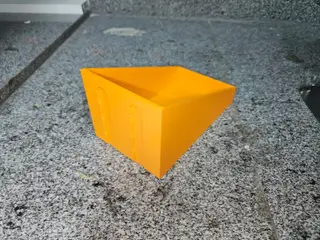

This parametric model can generate shelves with Multipoint rails on the back. You can attach it to the tiles using Multipoints or bolt-locks snap-ins (see picture).
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Bruno P.
Archivos (4)
- 10x10.stl STL · 27 KB
- 20x10.stl STL · 39 KB
- 20x20.stl STL · 76 KB
- Shelf Generator.f3d F3D
- Categoría
- Herramientas
- Formatos
- STL, F3D
- Descargas
- 1,470
- Publicado
Sobre este modelo
This parametric model can generate shelves with Multipoint rails on the back. You can attach it to the tiles using Multipoints or bolt-locks snap-ins (see picture).
I've included Fusion 360 parametric file. A brief explanation of the most significative parameters: - Width - The internal width of the shelf. The number of multipoint rails will be calculated based on this parameters. If you set this larger than 300mm you'll need to adjust the Combine1 step as well. - Depth - The internal depth of the shelf. - Num_cells_back_height - The height of the back wall of the shelf, where the rails are. This is in multiples of Multiboard cell size, which is 25mm, plus +- 5mm. - Front_height - The height of the front wall of the shelf.
Besides the parametric file, I've included some ready-to-print STLs as well.
License: https://www.multiboard.io/license
