Sobre este modelo
This a remix of this great design: https://www.printables.com/model/859943-multiboard-parametric-bottle-holders
I did this remix because the original one uses pegboard click mounts which demands supports for printing. This version uses Multipoint rails, so it can be printed without supports in the provided position.

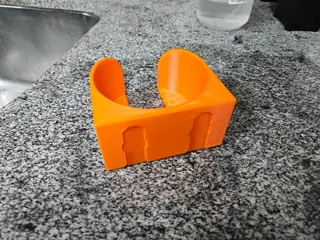

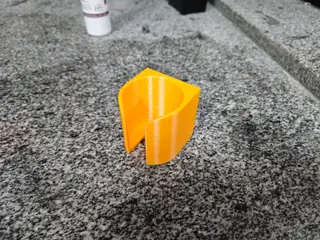

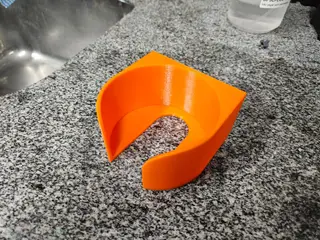

I've included Fusion 360 parametric files in two versions: one for large bottles (uses two rails on the back) and other for small bottles (uses a single rail). One of the parameters controls the bottle size (named "BottleSize") and the other controls the height of the part (named "HolderHeight"). I do not recommend lowering that last parameter too much or you'll break the model. I've also included two STLs, one for 90 mm diameter bottles (two rails) and another for 45 mm bottles (single rail).

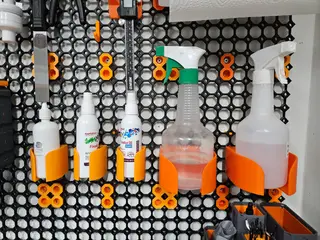

When mounting the single rail version on Multiboard tiles, I recommend using two consecutive Multipoints vertically to avoid the holder spinning.
License: https://www.multiboard.io/license
