Multiboard Modular Battery Holders
This is a set of Multiboard (https://www.multiboard.io/parts-library) compatible Battery Holders for a variety of size batteries. Rather then focus on holding as many batteries as possible, these holders are designed to hold a reasonable amount of batteries in a modular fashion so that you can mix a
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Brian T.
Archivos (14)
- Multiboard Modular Battery Holders - 18650.stl STL · 11,0 MB
- Multiboard Modular Battery Holders - 18650.step STEP · 265 KB
- Multiboard Modular Battery Holders - D.step STEP · 320 KB
- Multiboard Modular Battery Holders - D.stl STL · 8,3 MB
- Multiboard Modular Battery Holders - C.stl STL · 6,5 MB
- Multiboard Modular Battery Holders - C.step STEP · 266 KB
- Multiboard Modular Battery Holders - AAA.step STEP · 255 KB
- Multiboard Modular Battery Holders - AAA.stl STL · 13,1 MB
- Multiboard Modular Battery Holders - AA.stl STL · 19,0 MB
- Multiboard Modular Battery Holders - AA.step STEP · 684 KB
- Multiboard Modular Battery Holders - 9V.step STEP · 337 KB
- Multiboard Modular Battery Holders - 9V.stl STL · 11,4 MB
- Multiboard Modular Battery Holder - CR123.stl STL · 19,9 MB
- Multiboard Modular Battery Holder - CR123.step STEP · 948 KB
- Categoría
- Herramientas
- Formatos
- STL, STEP
- Descargas
- 482
- Publicado
Sobre este modelo

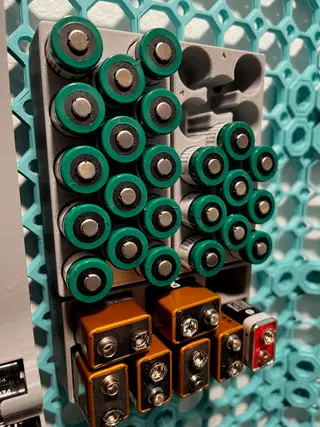

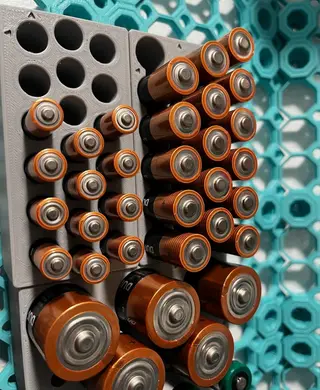

This is a set of Multiboard (https://www.multiboard.io/parts-library) compatible Battery Holders for a variety of size batteries. Rather then focus on holding as many batteries as possible, these holders are designed to hold a reasonable amount of batteries in a modular fashion so that you can mix and match. You can add or remove holders as your needs change.

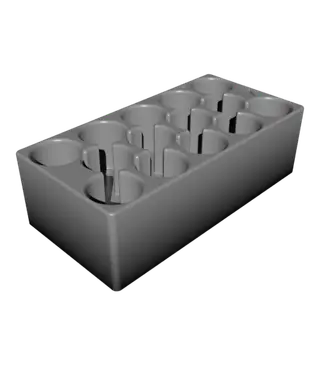

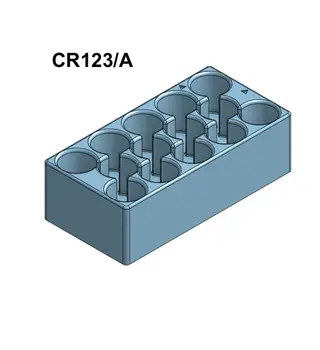

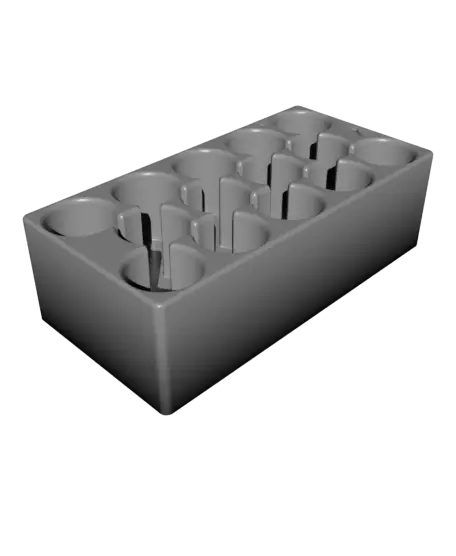

Currently it contains holders for AA, AAA, C, D, CR123/A, 9 Volt and 18650 batteries.
The holders are 50mm x 100mm and can be organized modularly and printed so that you only have holders for the batteries you need and use.
The holders have the same depth, except for the D or 18650 holders which need to be a little deeper to hold the batteries in securely.

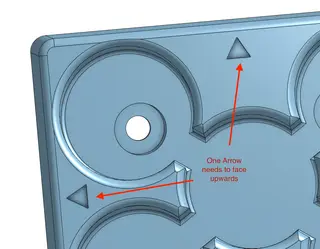

These holders are designed to be able to mounted in Portrait or Landscape orientations. The holes are angled in such a way that if oriented with a small arrow facing up, the battery will be angled upwards to help prevent it from falling out.
This version is designed to use M3 button head screw bolts and attach to either the Heat Set Insert Snap (https://than.gs/m/1030714), the Heat Set Insert - Push-Fit (https://than.gs/m/1030733), or one for the Drop in Nut Snaps (https://than.gs/m/1030686)
The CAD documents are available on OnShape (https://cad.onshape.com/documents/9bdb1535c51a71a2af8128a8/w/0a625b066d3ed96660859d1b/e/d674e179d10609799c75aff3?renderMode=0&uiState=666a451d1fd86e688a98a109) if you want to remix your own
Descripción original del autor, publicada en Thangs.
