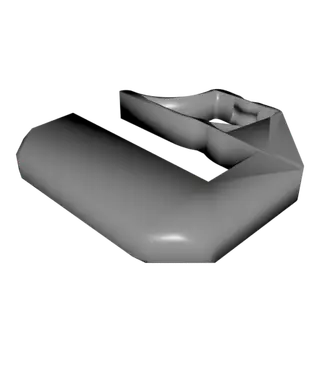

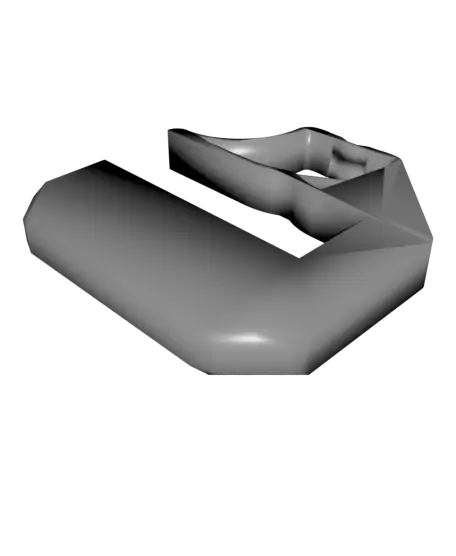

Multiboard Free-Standing Foot with Single Desk/Table Clamp

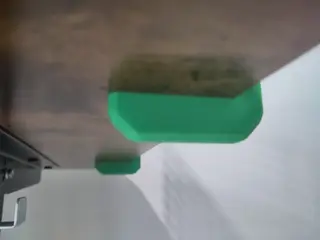

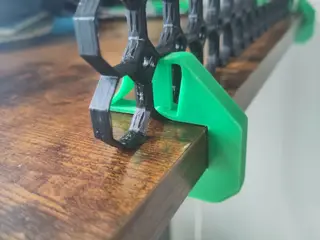

The Multiboard Free-Standing Foot, but with a Desk Clamp underneath it, to be placed on a side of a table. If you need any additional gap sizes, do comment below or DM me.

There is a double sided version where you can put the boards both above and below the table/desk. The thangs link is here: https://thangs.com/designer/minionteamsg/3d-model/Multiboard%20Free-Standing%20Foot%20with%20Double%20Desk%2FTable%20Clamp-1077489

…..-----===== FROM ORIGINAL MODEL PAGE =====-----…..

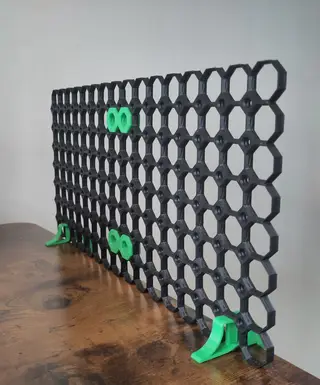

Attach a “free-standing foot” to your Multiboard so it stands by itself, and use it as a desk organizer.

The free-standing foot comes with two pieces: the foot and the support piece.

To set it up, you insert the foot into a hole on the bottom of your Multiboard, then you place the support piece inside the foot to secure it into place.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

—

This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
