Mower Blade spacer for Ozito PXLMTK-4182 — modelo 3D

Mower Blade spacer for Ozito PXLMTK-4182

por Benye Hh en Thingiverse

This is for the Ozito PXC 36V Telescopic electric lawn mower. This blade spacer allows the mower blade to be lowered to achieve a "to the dirt" scalping for your lawn. Photo is after I'd completed my scalping, so that's why it looks dirty. Mower performance will be variable depending on how thick...

Descargar gratis Ver en Thingiverse

Todos los archivos (2) en un ZIP

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Benye Hh.

Archivos (2)
Categoría
Jardín
Formatos
STL, FCSTD
Descargas
0
Publicado

Sobre este modelo

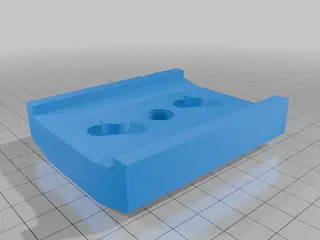

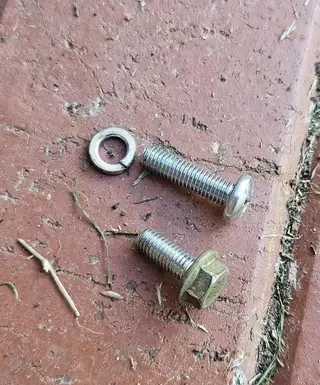

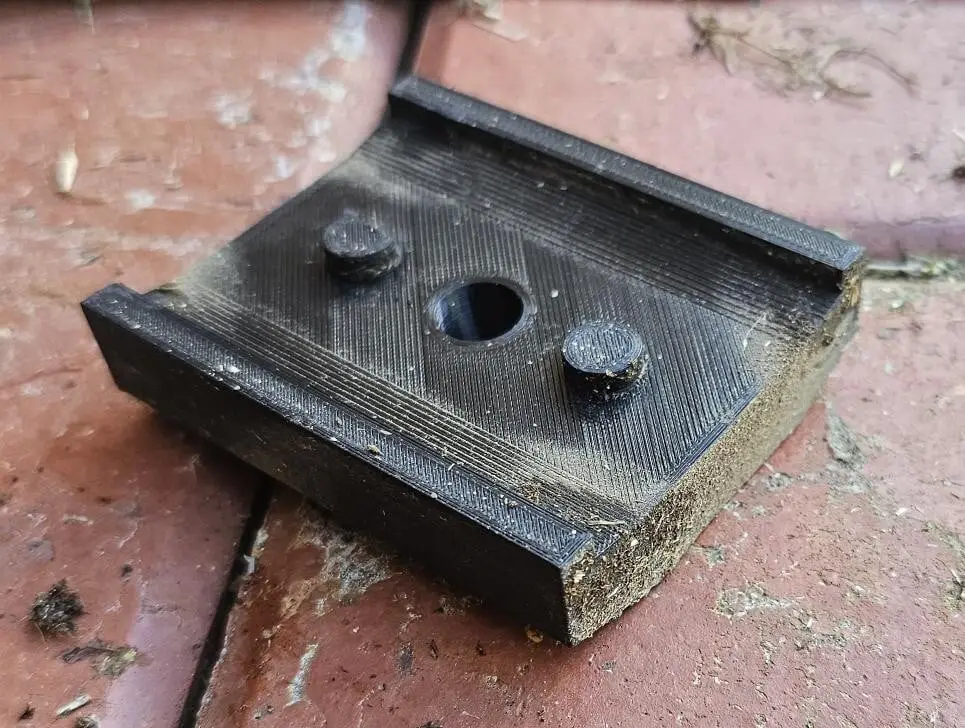

This is for the Ozito PXC 36V Telescopic electric lawn mower. This blade spacer allows the mower blade to be lowered to achieve a "to the dirt" scalping for your lawn. Photo is after I'd completed my scalping, so that's why it looks dirty. Mower performance will be variable depending on how thick the lawn is. Go slow, take narrow passes, and sharpen the entire length of the blade with an angle grinder for a slight improvement. NOTE: you will need to remove a little notch on one of the circular tabs. Use a sharp chisel to remove a section. Remove the blade from the machine and put the spacer between the machine and blade (see photo). You will need a longer bolt than the existing one in the machine (keep this for when the spacer is not in use). I'd suggest removing the spacer once you're done scalping.

Descripción original del autor, publicada en Thingiverse.
