Mouth Operated Mouse

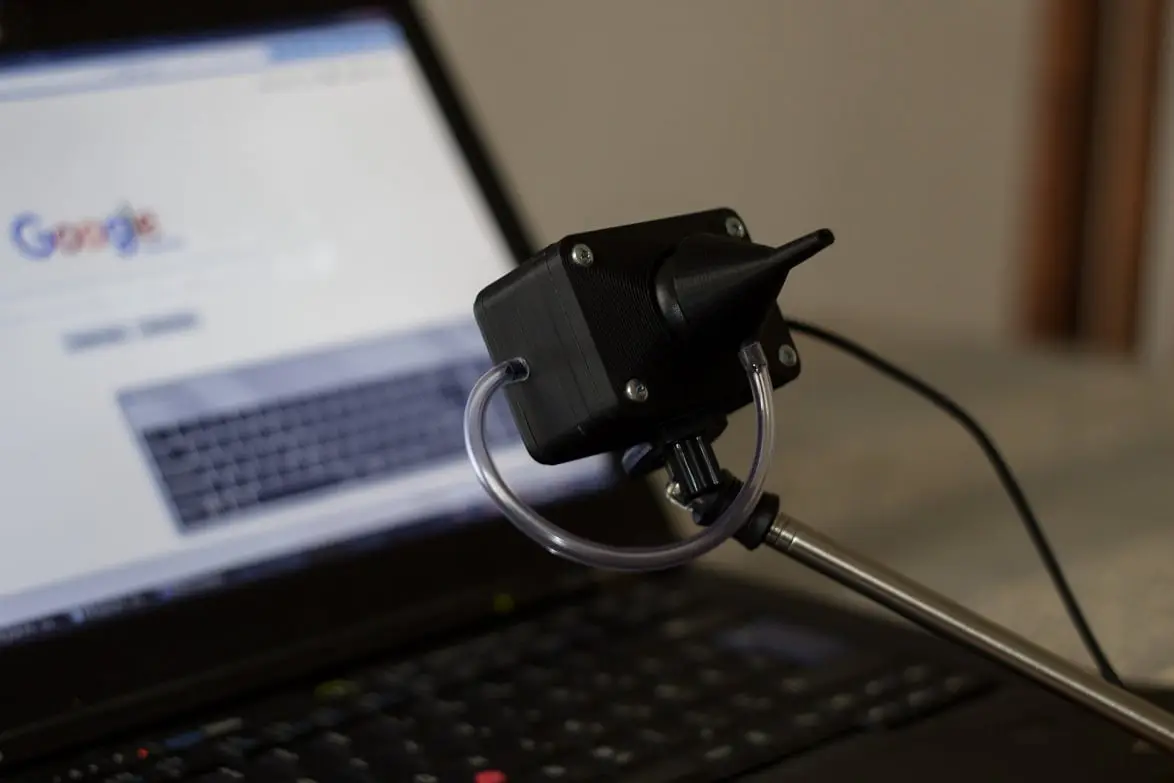

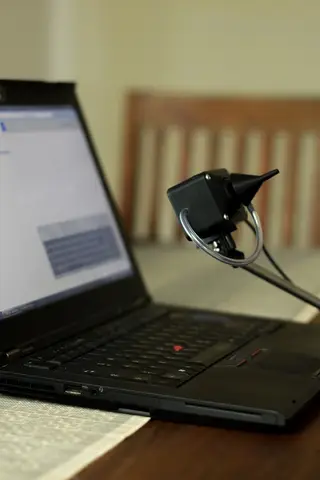

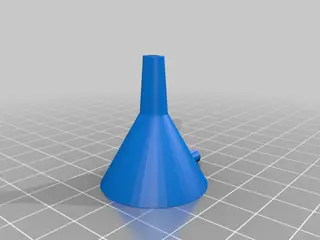

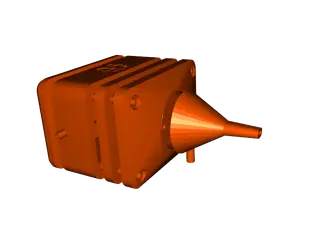

🚨 NEW VERSION AVAILABLE! 🚨 https://www.thingiverse.com/thing:7387130 About This project was intended to prove if it is possible to build a pointing device (mouse) for people with disabilities for under 20 USD, using only components which are widely available as well as a 3D printer. The result is a basic mouth operated mouse which can be connected via USB to nearly every PC. The case allows to mount it on standard tripods using a 1/4 inch screw. Functionality The user moves the cursor by using a mouthpiece which basically works like a joystick. The right mouse button is operated by pushing the mouthpiece towards the case. The left mouse button is emulated by a sensor that recognizes if the user sucks air trough it. Hardware/Software I used open source hardware and software if possible. The system is controlled by an Arduino Pro Micro. The Firmware was written as an Arduino sketch. I'm not really a fan of the Arduino "IDE" but for this project it simply worked. Other parts where purchased from ebay or a local hardware store.
