Mount plate for 110-240V AC to 24V DC & 5V DC power board (SKU 011017)
por Ben Whiting en Thingiverse
Got a step down power supply for a build using DIN rails to mount and wanted to attach it. Designed this plate to match the dimensions of the board and provide 5mm stand off on the corners to allow room for the solder connections on the underside of the board. Drilled the holes for the 35mm DIN...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Ben Whiting.
Archivos (1)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

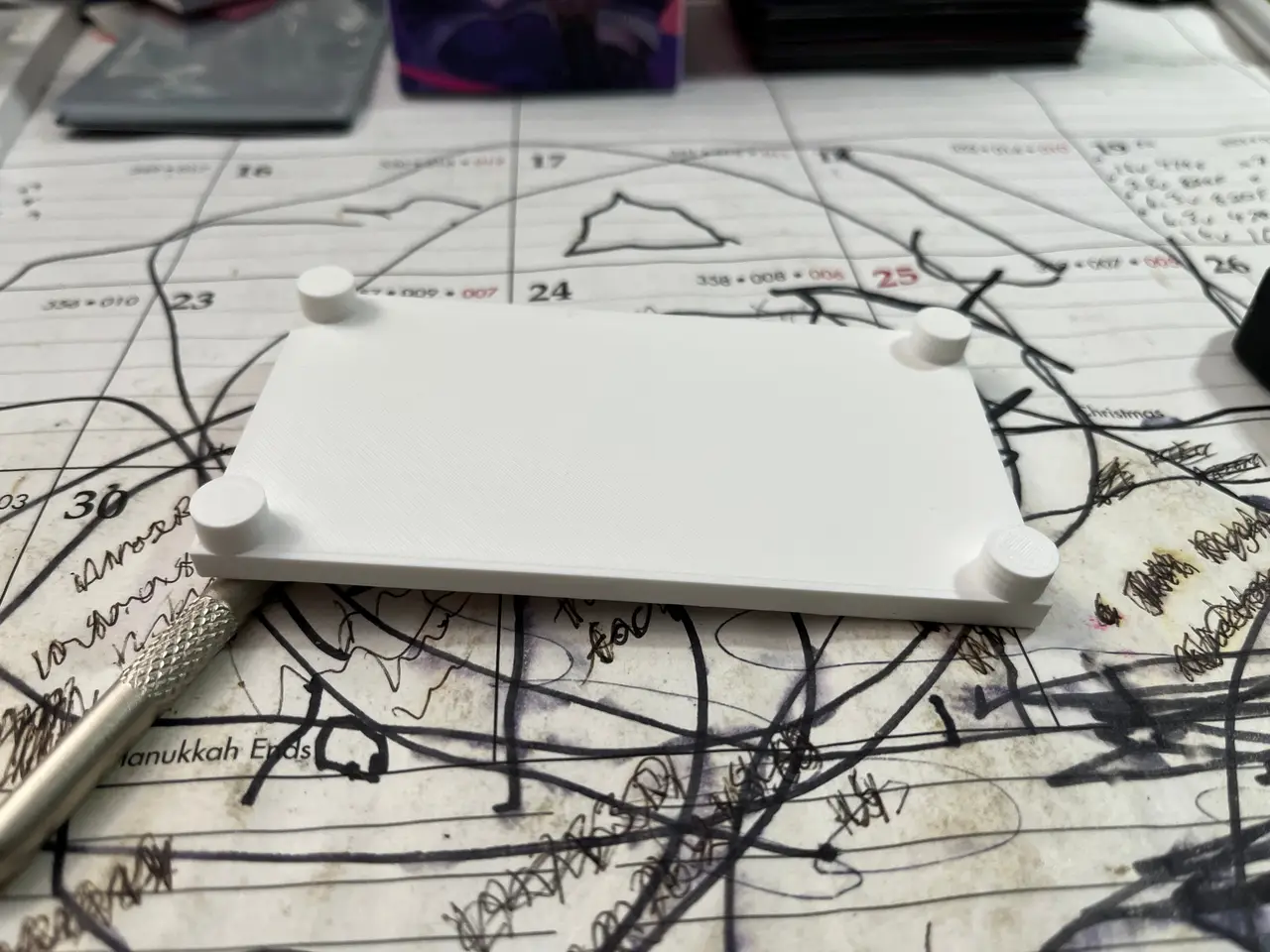

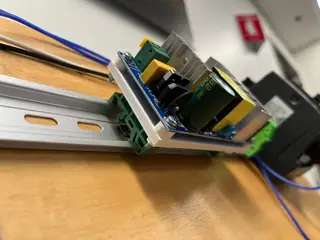

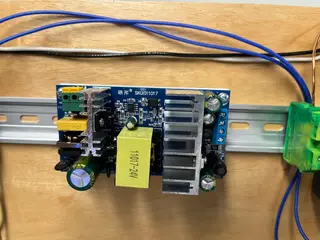

Got a step down power supply for a build using DIN rails to mount and wanted to attach it. Designed this plate to match the dimensions of the board and provide 5mm stand off on the corners to allow room for the solder connections on the underside of the board. Drilled the holes for the 35mm DIN rail mounting brackets (available on Amazon) and the corners with a 1/8" acrylic drill bit and added the brackets and 3mmx18mm screws, 3mm washers, and 3mm nuts to hold everything together. Check fit after mounting to verify clearance between the solder points along the bottom of the board and the top of the screws for the DIN rail brackets (possible short point depending on where you attach your DIN bracket. Printed at 100% infill with no supports
