Mount for 60x40mm Perfboard
por Mario en Printables
A simple mount for standard 60x40mm perfboard with 56x36mm mounting hole spacing.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo sin pedir permiso ni dar crédito.
Al descargar aceptas respetar la licencia y dar crédito a Mario.
- Categoría
- Tecnología
- Formatos
- STL, STEP
- Descargas
- 1
- Publicado
Sobre este modelo

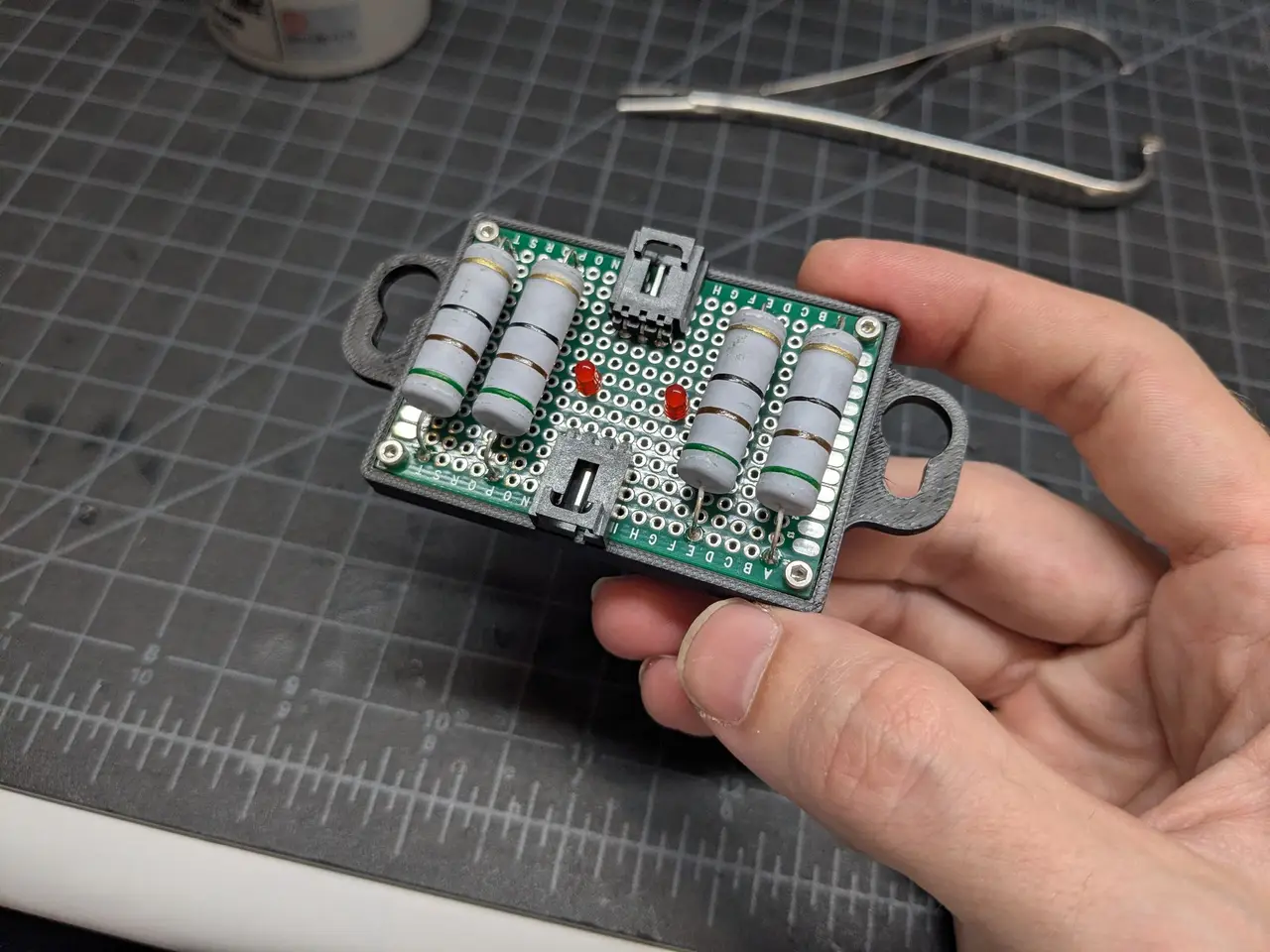

A simple mount for standard 60x40mm perfboard with M2, 56x36mm mounting hole spacing. The model has 4mm of clearance to the underside of the perfboard. It will accept 4-6mm long M2 screws. The mounting holes are about 3in apart and designed for #6 hex-head wood screws, such as commonly found in pinball machines.
Descripción original del autor, publicada en Printables.
