Motorized TurboProp Engine Model
por AutoDesigns en MakerWorld

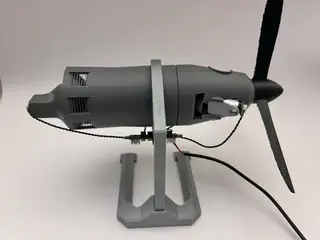

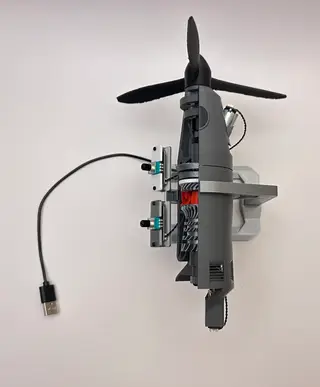

Spins on 2 different shafts and has a working dual planetary gearbox!! Measures about 8.5 in (22cm) long.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a AutoDesigns.
Archivos (38)
- Back.stl STL · 2,5 MB
- BackMotorGear.stl STL · 1,0 MB
- BackShaftGear.stl STL · 882 KB
- Bottom Stand.stl STL · 65 KB
- Carrier1_Sun2.stl STL · 283 KB
- Carrier2.stl STL · 154 KB
- Centrifugal Comp.stl STL · 6,7 MB
- Combustion.stl STL · 13,8 MB
- Controls.stl STL · 560 KB
- Cover.stl STL · 35 KB
- Front Latch.stl STL · 215 KB
- Front.stl STL · 3,4 MB
- FrontShaftGear.stl STL · 69 KB
- HPC Turb.stl STL · 5,3 MB
- LPC_1.stl STL · 1,9 MB
- LPC_2.stl STL · 1,5 MB
- LPC_3.stl STL · 1,5 MB
- LPC_4.stl STL · 2,2 MB
- Planet1.stl STL · 361 KB
- Planet2.stl STL · 308 KB
- Prop.stl STL · 1,4 MB
- PropShaft.stl STL · 65 KB
- PT1.stl STL · 1,2 MB
- PT2.stl STL · 1012 KB
- Ring1.stl STL · 614 KB
- Ring2.stl STL · 547 KB
- Shaft 2.stl STL · 73 KB
- Shaft1.stl STL · 78 KB
- ShaftCap.stl STL · 72 KB
- ShaftToSun.stl STL · 110 KB
- Sun1.stl STL · 344 KB
- SV1.stl STL · 281 KB
- SV2.stl STL · 535 KB
- SV3.stl STL · 435 KB
- SV4.stl STL · 455 KB
- SVCombust.stl STL · 839 KB
- Top Stand.stl STL · 57 KB
- FrontMotorGear.stl STL · 124 KB
- Categoría
- Educación
- Formatos
- STL
- Descargas
- 3,144
- Publicado
Sobre este modelo
Spins on 2 different shafts and has a working dual planetary gearbox!!
Measures about 8.5 in (22cm) long.

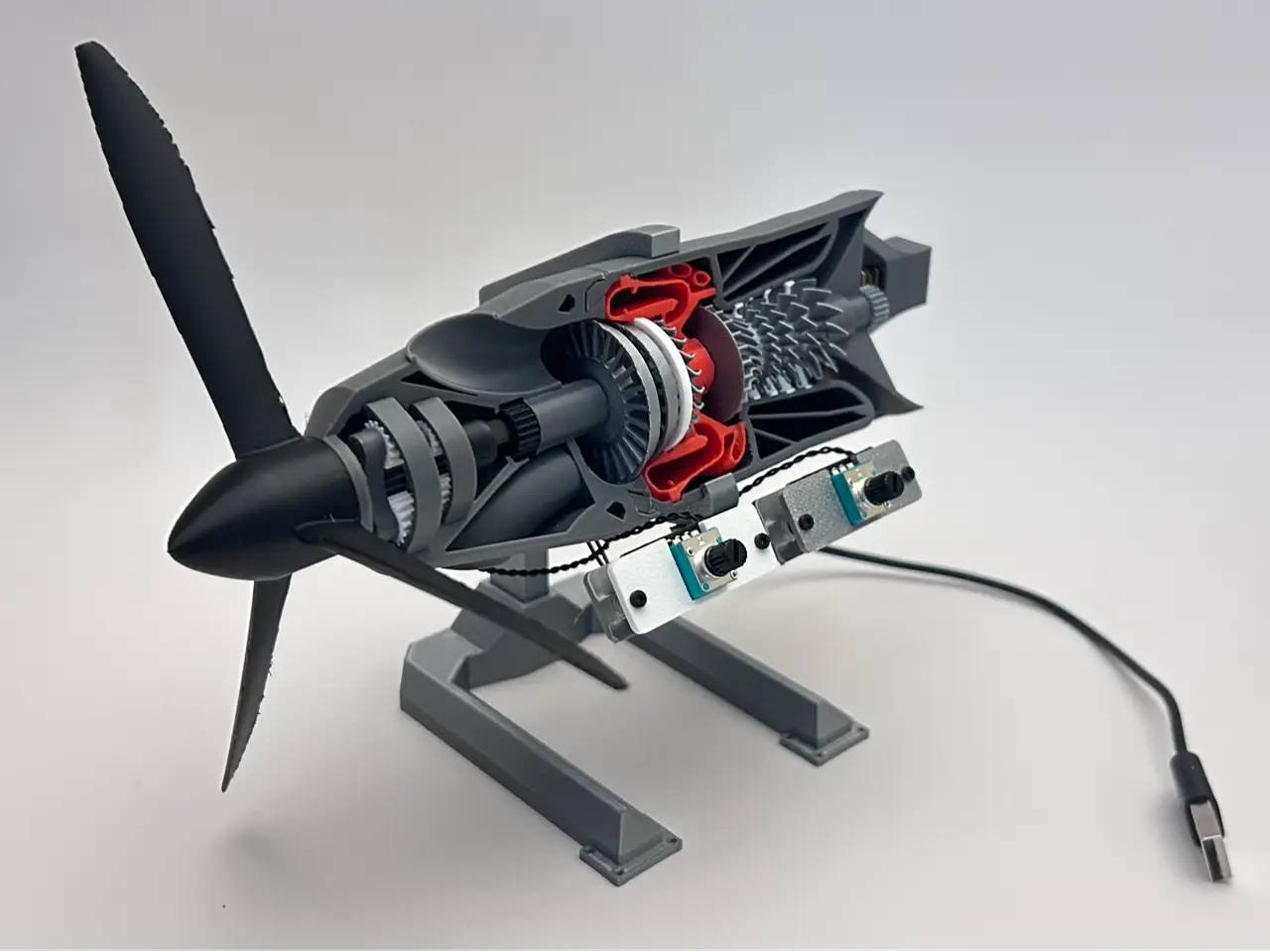

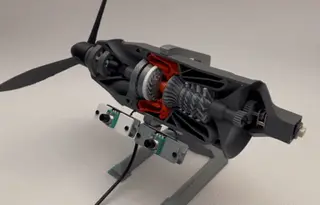

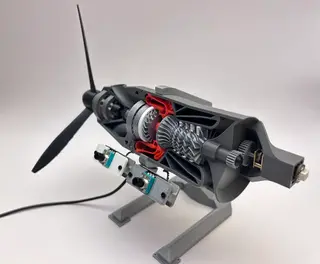

About: This is a simplified TurboProp engine based off of the Pratt and Whitney Pt6 engine. It feature dual planetary gears to reduce rpm to the propeller. It has the compressor stages, stator vanes, combustions stage, turbine stages, as well as two seperate shafts to transmit the power.
Materials needed : - It requires 2 of the N20 reduction gear motors, the makers electronics bundle, and 2mm*8mm self tapping screws. These can be found in the links below for the more exact specifications. - Allen key for the 2mm screws, should have came with the printer. - No need for superglue, but can be used if desired - Tweezers or similar can be helpful for support removal
Supports: I used these settings for this model.
On the main shell (front and back) as well as the combustion , the embedded rings where the stator vanes and planetary gears sit have overhangs on them, when it prints, it leaves a couple lines of slack since there is not support, I have accounted for this and they can just be ripped or cut off. The peices will fit perfectly fine without support there. Picture below of where I am mentioning. (blue are the overhanges)
Assembly instructions: Caution: Would NOT recommend any kind of conductive filament, it may short the circut.
The PDF below has instructions.
