Motor Mount for a DIY Ebike

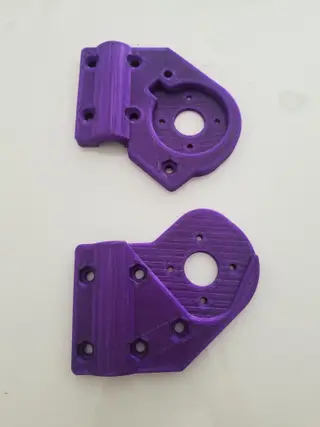

Two halves of a motor mount for a 2011 Trek FX 7.1 ebike conversion. The build is heavily inspired by Tom Stanton's, but the cad is all mine and designed for this bike.

Descargar gratis Ver en MyMiniFactory

Todos los archivos (2) en un ZIP

Licencia

Solo uso personal

MyMiniFactory - Credit - Remix - Noncommercial

Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.

Al descargar aceptas respetar la licencia y dar crédito a Kevin Li.

Archivos (2)

Categoría: Repuestos
Formatos: STL
Descargas: 298
Publicado: 29 de agosto de 2018

Sobre este modelo

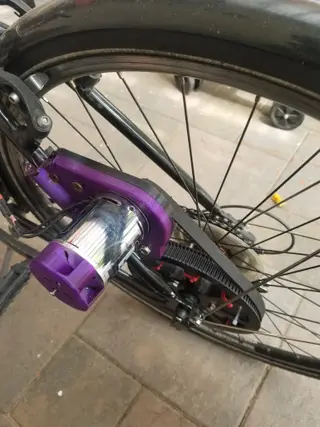

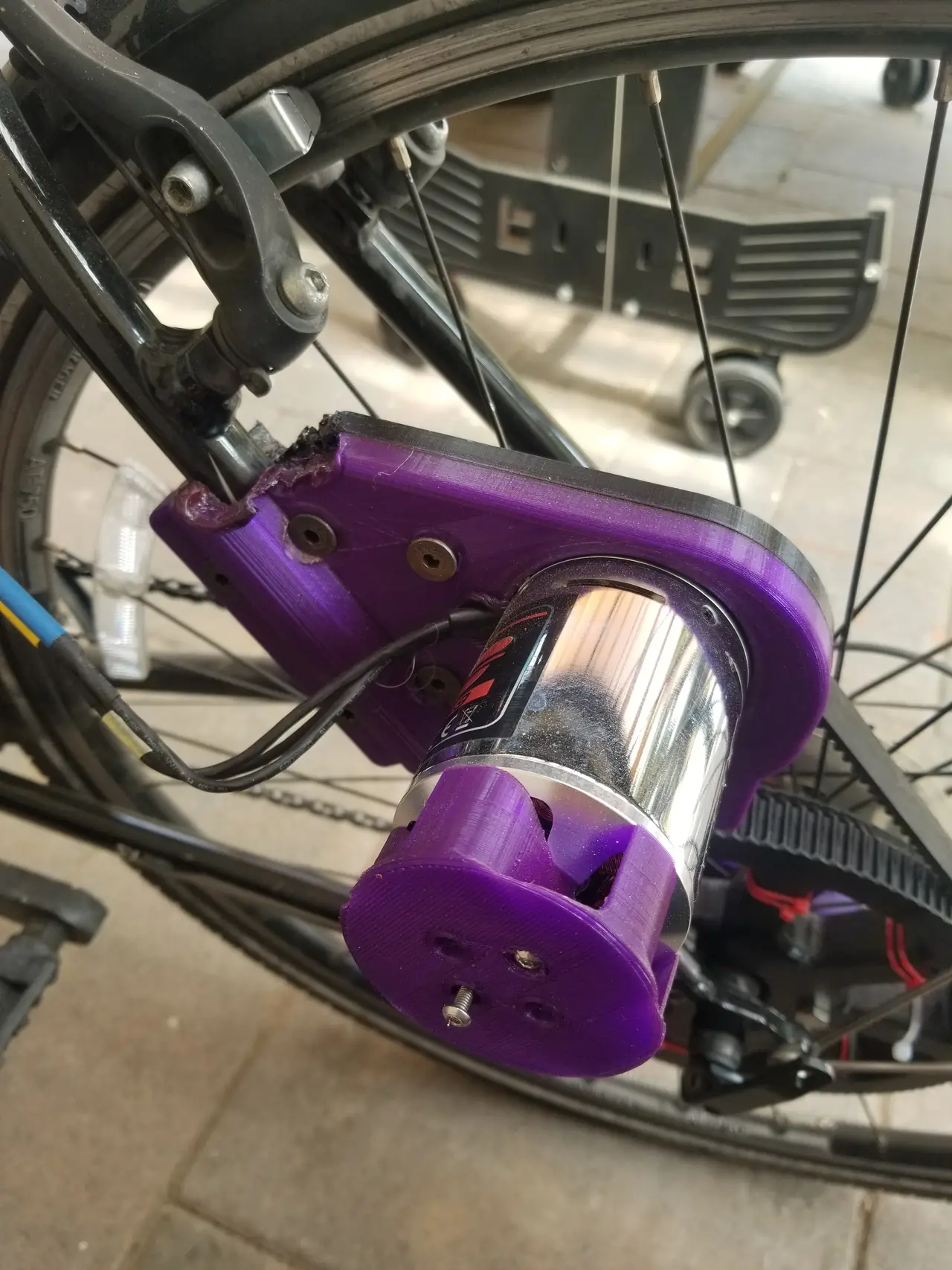

Two halves of a motor mount for a 2011 Trek FX 7.1 ebike conversion. The build is heavily inspired by Tom Stanton's, but the cad is all mine and designed for this bike.

https://www.youtube.com/watch?v=9rIIJbDkpN8&t=291s

To assemble it you will need the hub clamp and pulley along with some hardware that I will post in more detail after the 'pimp my ride' competition. The bike tops out at 25 mph with a 7 mile range.
