Modular wire management tray
por salacious_sloth en Printables

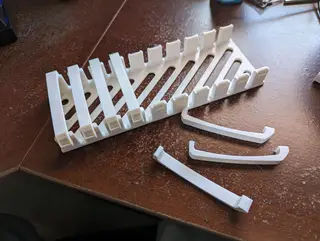

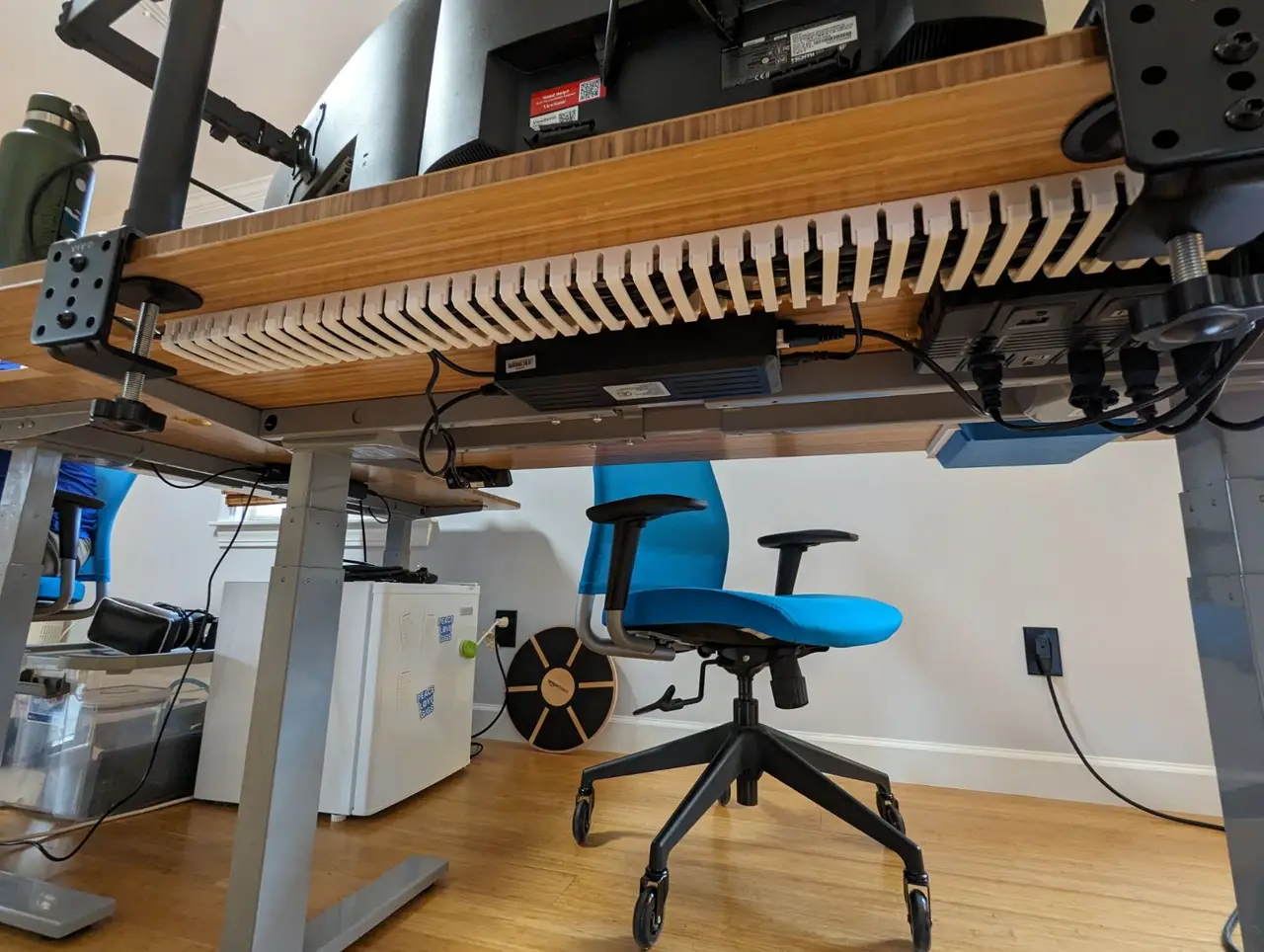

Inspired by RatRig's wire guide, but redesigned from scratch for use mounted under desks, tables, cabinets, etc.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a salacious_sloth.
Archivos (22)
- tray--screwMount--20mm.step STEP · 1,6 MB
- tray--screwMount--25mm.STEP STEP · 1,6 MB
- tray--screwMount--30mm.STEP STEP · 1,6 MB
- tray__corner--screwMount--20mm.step STEP · 1,2 MB
- tray__corner--screwMount--25mm.STEP STEP · 1,2 MB
- tray__corner--screwMount--30mm.STEP STEP · 1,2 MB
- tray__mini--screwMount--20mm.step STEP · 1,3 MB
- tray__mini--screwMount--25mm.STEP STEP · 1,3 MB
- tray__mini--screwMount--30mm.STEP STEP · 1,3 MB
- tray--vhbMount--20mm.step STEP · 1,5 MB
- clip.STEP STEP · 67 KB
- tray--screwMount--20mm.stl STL · 358 KB
- tray--screwMount--25mm.STL STL · 349 KB
- tray--screwMount--30mm.STL STL · 349 KB
- tray__corner--screwMount--20mm.stl STL · 326 KB
- tray__corner--screwMount--25mm.STL STL · 326 KB
- tray__corner--screwMount--30mm.STL STL · 322 KB
- tray__mini--screwMount--20mm.stl STL · 296 KB
- tray__mini--screwMount--25mm.STL STL · 295 KB
- tray__mini--screwMount--30mm.STL STL · 300 KB
- tray--vhbMount--20mm.stl STL · 234 KB
- clip.stl STL · 10 KB
- Categoría
- Hogar
- Formatos
- STEP, STL
- Descargas
- 2,903
- Publicado
Sobre este modelo
Tray footprint is 200mm x 70mm with a usable volume of 200mm x 60mm x 20mm. - Screw mount version uses (4) #8 flat-head screws. No supports required. - Double sided tape version has tracks for ¼" 3M VHB strips. Supports required on build plate only
Print settings should be pretty forgiving as long as you use a decent wall thickness. I used a 0.6 nozzle, 0.2 layer height, 2 perimeters, and 25% cubic infill with ASA, although PLA should work fine as well.
2024-02-14: - Updated the screw mount straight tray files to fix missing chamfers on the posts - Added screw mount corner tray
2024-02-15: - Added 160mm length versions that fit within build volume for Prusa Mini+ and Bambu A1 Mini - Added two new versions with taller posts - 25mm and 30mm
