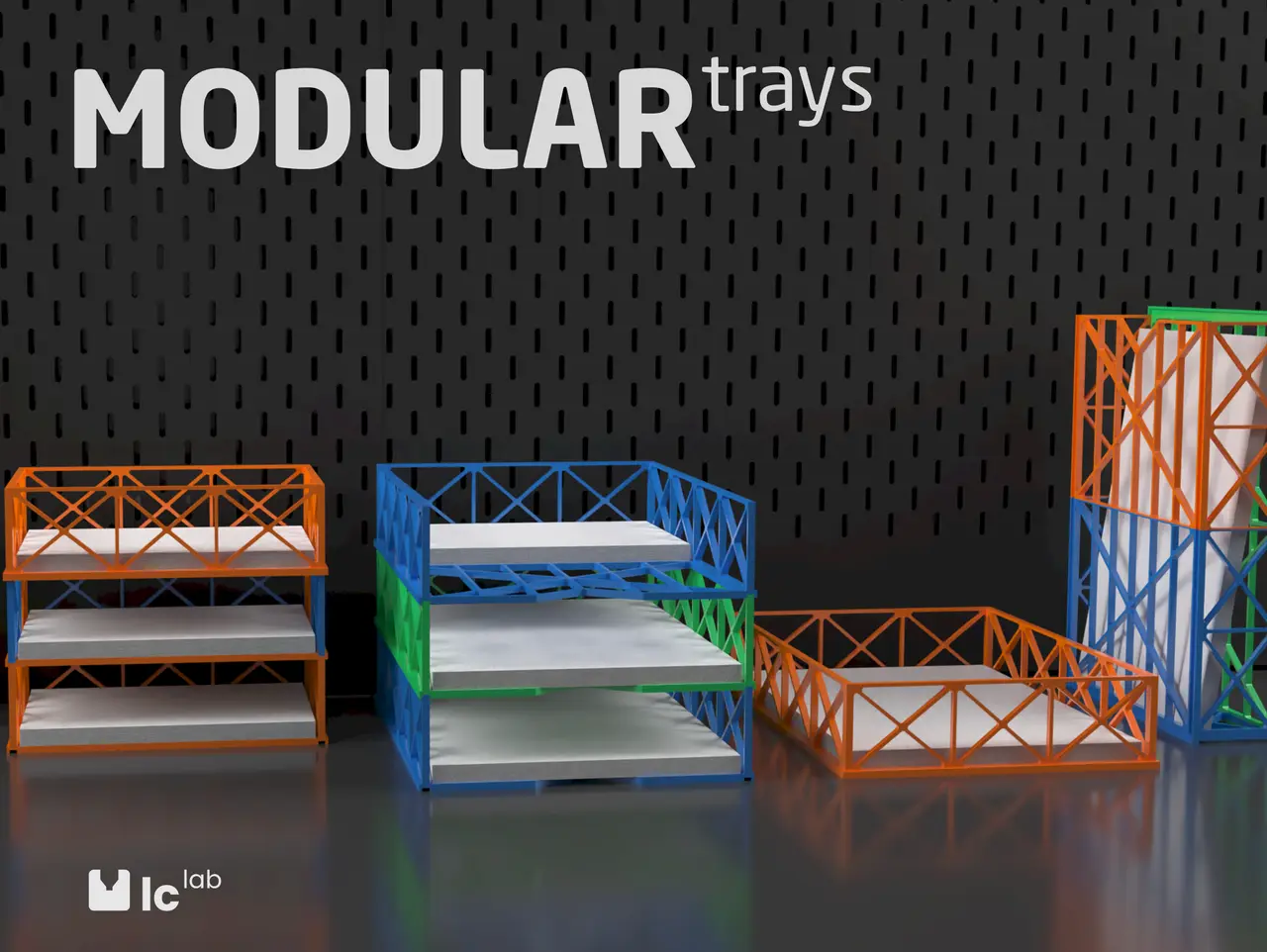

Modular Trays For Work & School

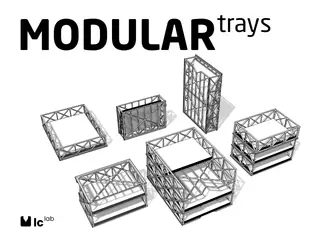

A modular organizer system for desks, shelves and drawers. Its frame design borrows from steel construction: vertical posts, horizontal chords and diagonal bracing form a stiff, lightweight trusses. Three A5 tray types and one A5 lid connect with two U-clip types – no screws, glue or tools required. Build flat or stacked trays, organizers, boxes or upright files, and reconfigure them whenever your needs change. To change a configuration, pull the clips off and rebuild. Feel free to up- or downscale the elements. Have fun! Update (version 2): Tray I, tray II and cover IV are now available in two versions. - Version 1 keeps the uniform member thickness throughout – visually the most consistent design, but the frame members along the edge where two trays or covers meet proved too delicate.

- Version 2 doubles the thickness of these connecting members, and U-clip 1 has been adapted accordingly.

I recommend version 2 – the final choice is, of course, yours. Elements - Tray I (black): basic tray

- Tray II (orange): tray with cutout for easy access

- Tray III (green): box variant

- Cover IV (blue): lid, fits trays I–III

- U-clip 1 (yellow): joins two trays into an A4 tray

- U-clip 2 (red): locks trays and covers together for upright configurations (upright file / magazine holder).

Print Settings Setting Value

Layer height 0.20 mm

Supports Cover IV: None Tray I – III: Everywhere (snug, default settings).

Infill 15 %

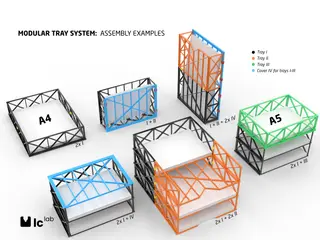

Assembly Every tray has the same A5 format. Trays can be combined in three ways: - Side by side: combine two A5 trays to one A4 tray.

- Stacked: stack A5 or A4 trays.

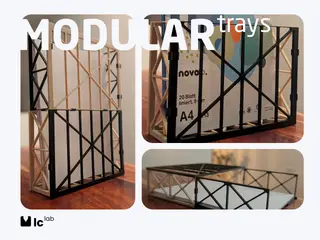

- Upright: turn a closed stack upright two create a file or magazine holder.

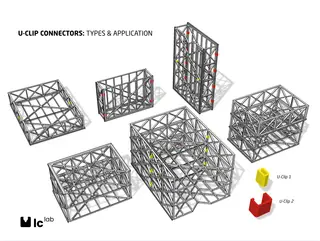

There are two clip types: U-clip 1 and U-clip 2 (see image "U-Clip Connectors: Types & Application"). Both clips snap onto the frame members from the side. - U-clip 1 is used wherever two trays meet side by side.

- U-clip 2 connects cover IV to any of the three trays.
