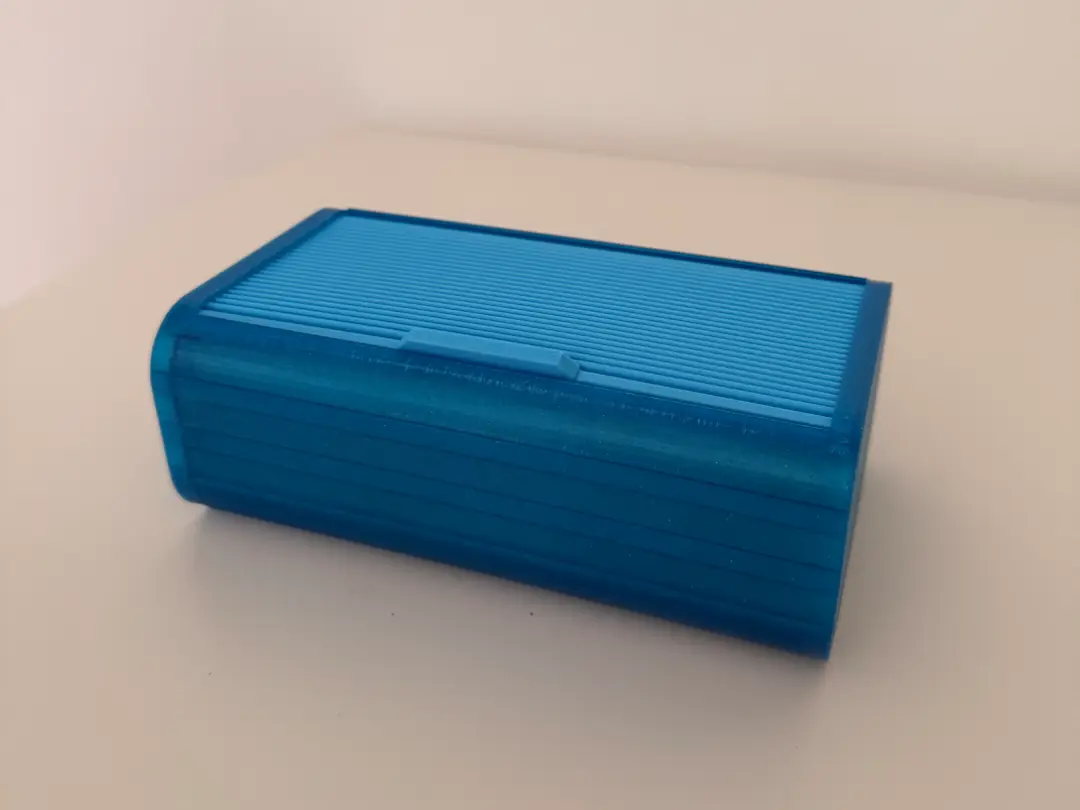

Modular Storage Box with Sliding Lid

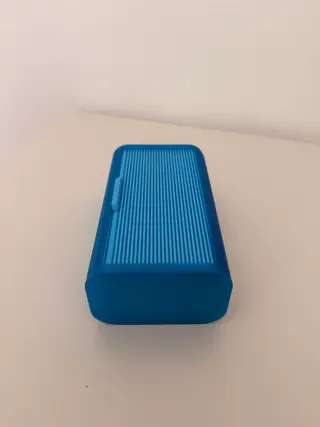

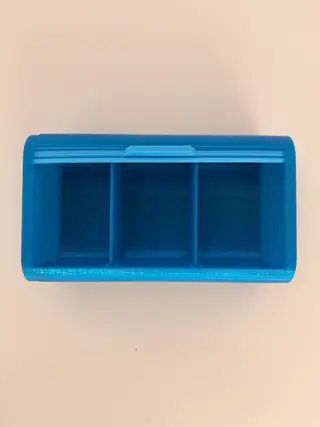

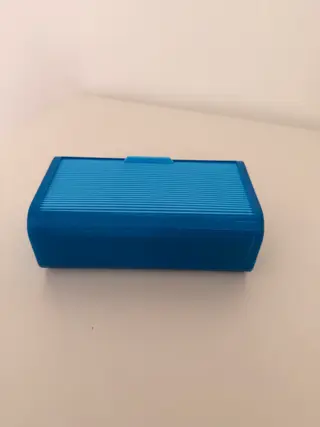

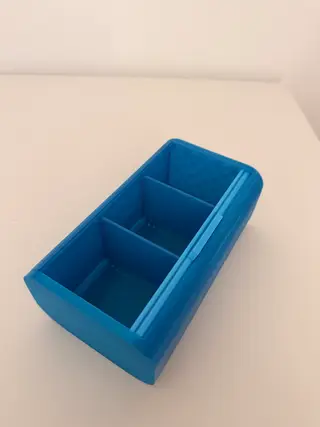

This 3D printable storage box is designed for people who want a clean, practical and ready-to-print organizer for their desk, workshop, office or 3D printing setup. The box features a modern rounded rectangular shape with a ribbed sliding top lid. The lid opens by sliding, making the box easy to access while keeping the contents covered and organized. Inside, the box can be used as one large compartment or divided into up to 3 smaller compartments using the optional separators. The dividers are printed separately, so you can choose the layout that works best for your needs. The model is made from multiple 3D printed parts that fit together without requiring glue. However, for extra strength and long-term durability, glue can be used after testing the fit. Important: if you want to use the optional dividers, install them before final assembly. If glue is used, the dividers may become permanent and cannot be easily removed or added later.

Dimensions Overall size: Length: 190 mm Width: 110 mm Height: 70 mm Optional compartment size: Length: 80 mm Width: 50 mm Depth: 60 mm Maximum number of compartments: 3 Lid type: Sliding top door Dividers: Optional, printed separately Main body: One-piece print Supports: No supports needed

Features

- Functional storage box for small items

- Sliding top lid / sliding door

- Optional internal dividers

- Can be used with 1, 2 or 3 compartments

- Dividers are printed separately

- Parts fit together without glue

- Glue can be used for extra strength

- Modern rounded design

- Ribbed top surface for a clean look

- Great for desk organization, workshop storage and 3D printer accessories

- Practical digital model for people who want to print, not design from scratch

Recommended Print Settings Layer height: 0.20 mm Nozzle: 0.4 mm Walls / Perimeters: 3 Top layers: 4 Bottom layers: 4 Infill: 10–20% Material: PLA, PLA+ or PETG Supports: No Brim: Optional, recommended for larger printers or better adhesion Print orientation: Print each part flat on the build plate Speed: 45–60 mm/s Cooling: 100% for PLA For the sliding lid, make sure your printer is well calibrated. If the lid feels too tight, slightly clean the rails or adjust horizontal expansion / flow in your slicer. For stronger use, I recommend PLA+ or PETG, 3–4 walls and 20% infill.

Assembly Notes Before using glue, test fit all parts first. Recommended assembly order:

- Print the main box, sliding lid and optional dividers.

- Decide if you want to use the box with 1, 2 or 3 compartments.

- Install the optional dividers first.

- Test the sliding lid.

- Use glue only after confirming that everything fits correctly.

If the dividers are glued in place, they may not be removable later.
