Modular Side Wall for M90/M91 Tripod Cable Box

Modular Side Wall for M90/M91 Tripod Cable Box

Bridge the M90 and M91 cheese plates with lightweight walls to hide and protect cables, adapters and small rig components.

Need a custom part for your setup? I design print-ready models from photos, sketches and measurements. Request a custom design (https://roqd.one/ith)

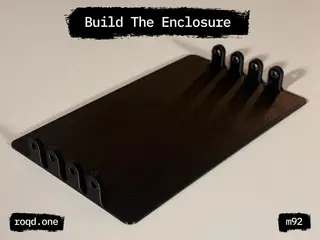

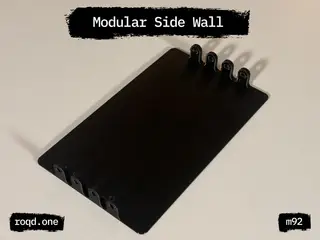

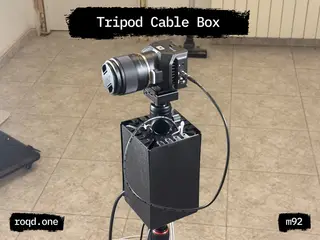

With accessories attached to both tripod plates, the cables and adapters between them still looked unfinished and remained exposed. I designed this thin modular wall to fasten between the upper and lower grids, turning the center of the tripod into a cleaner enclosure. Print only the number of sides needed, or use four walls for the fully enclosed look shown in the photos.

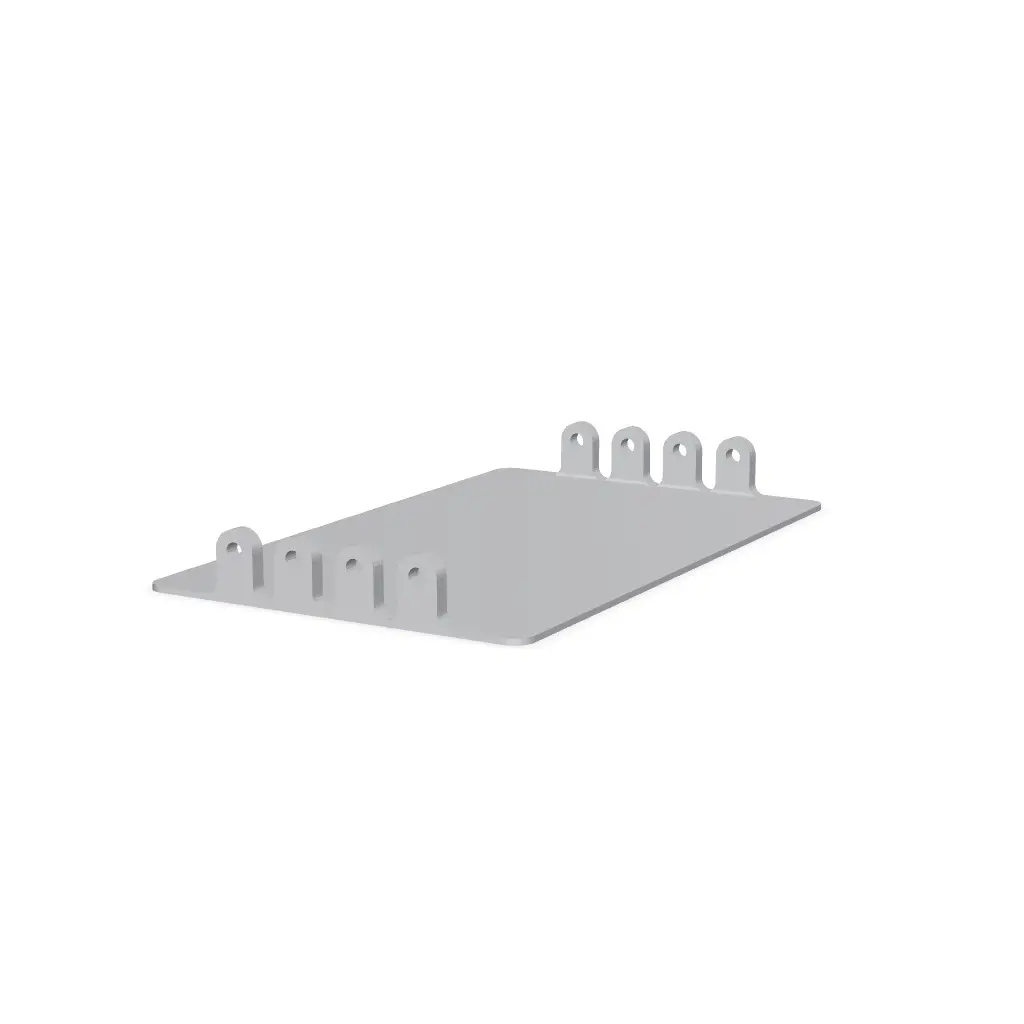

Key details - Main wall face: 164 x 100 x 1.5 mm - Mounting-tab projection: 4 mm - Accessory holes: 4.2 mm diameter - Designed to fasten between the M90 and M91 cheese plates - Print one to four panels depending on the desired coverage - Extra mounting tabs can be trimmed if plate holes are already occupied

Files included - One modular side-wall panel model

Important

M90 and M91 are required for the complete enclosure shown. Check plate spacing and hole alignment before installing electronics. If tabs are trimmed, retain at least one secure fixing point at each end of every wall.
