Modular Shoe Rack
por Filarte3D en Printables
By 3d printing 2 different models you could have a personalized shoe rack.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Filarte3D.
Archivos (14)
- PART-A.step STEP · 75 KB
- PART-B.step STEP · 102 KB
- PART-A.stl STL · 200 KB
- PART-B.stl STL · 222 KB
- TOP_PART-A.stl STL · 183 KB
- TOP_PART-B.stl STL · 200 KB
- PART_A_RIGHT.stl STL · 189 KB
- PART_B_RIGHT.stl STL · 205 KB
- PART_A_LEFT.stl STL · 189 KB
- PART_B_LEFT.stl STL · 205 KB
- TOP_PART_A_RIGHT.stl STL · 161 KB
- TOP_PART_B_RIGHT.stl STL · 182 KB
- TOP_PART_A_LEFT.stl STL · 161 KB
- TOP_PART_B_LEFT.stl STL · 182 KB
- Categoría
- Hogar
- Formatos
- STEP, STL
- Descargas
- 2,158
- Publicado
Sobre este modelo

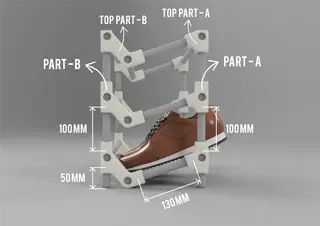

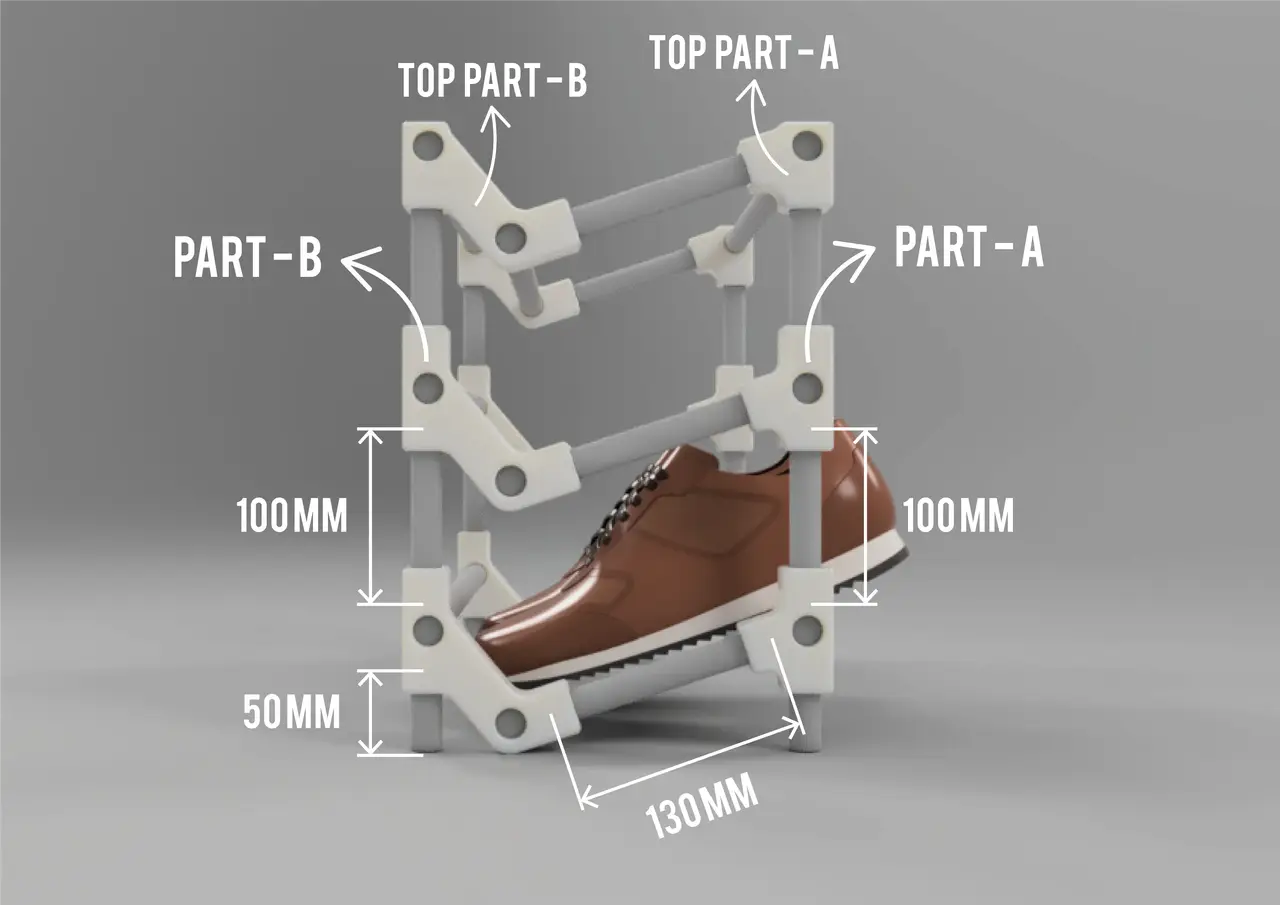

~ VERSION 1 ~ The idea of this design is that with 2 different 3d printed models and some ø16mm PVC tube you could make your own size shoe rack that fits your needs. You will have to: - 3D print 2 units of each model (2 units Part-A + 2 units Part-B) for 1 level, you can add as many levels as you want! - Cut the ø16mm PVC tube at your desired length. You can check the cover photo to see my recommendations.
I also included two additional parts to use them as top parts for the shoe rack.

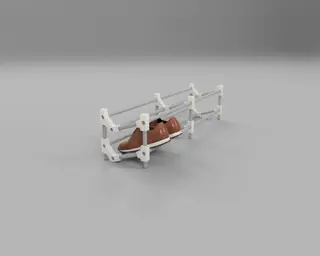

~ VERSION 2 ~ Many of you asked for the models without the through holes for the tubes. I upload the new designs in this version, but now you'll need 4 different models to complete 1 lever for the shoe rack. (Check image Version 2)
Descripción original del autor, publicada en Printables.
