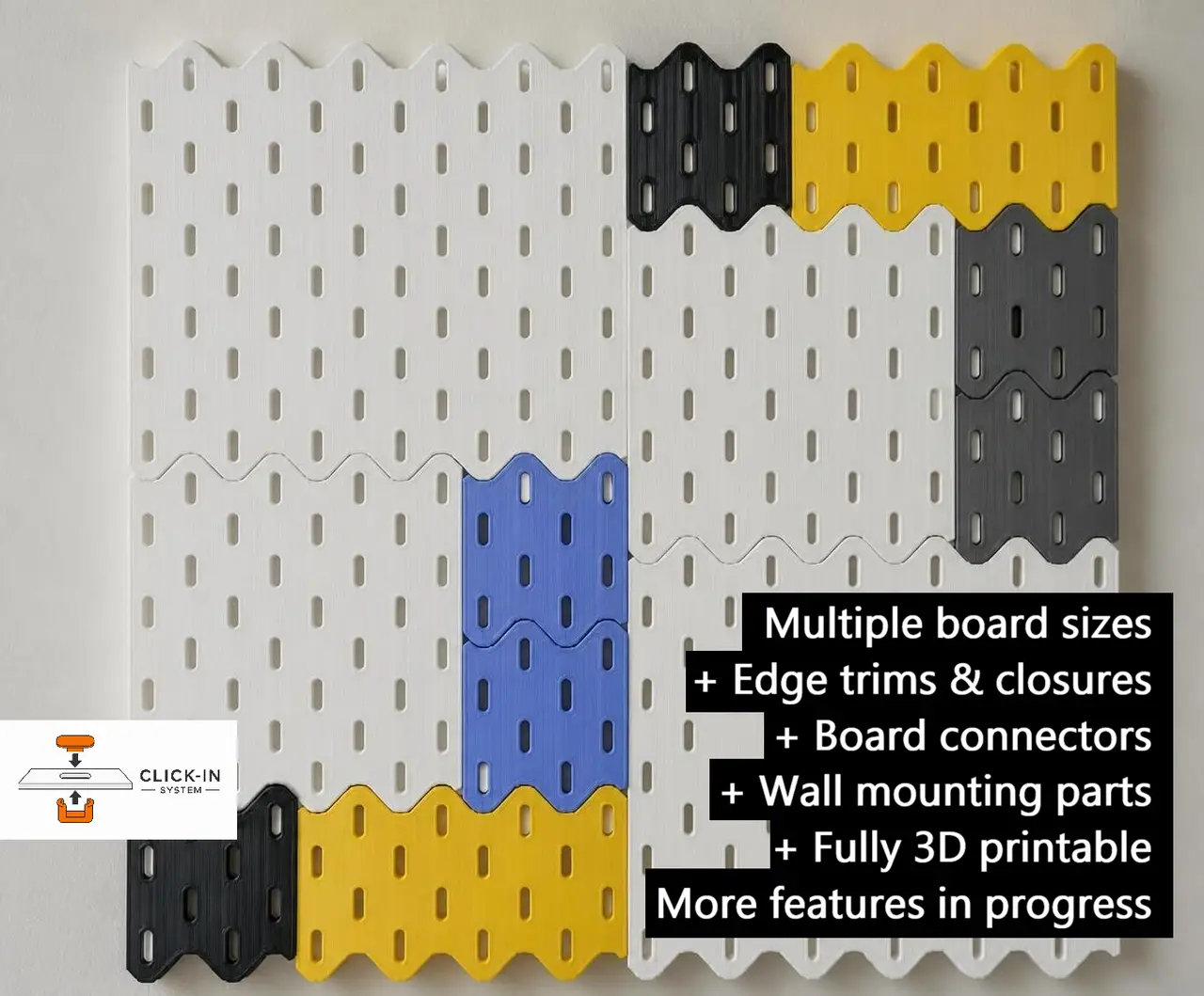

Modular Printable Pegboard Wall System [UPDATE 6.10.]

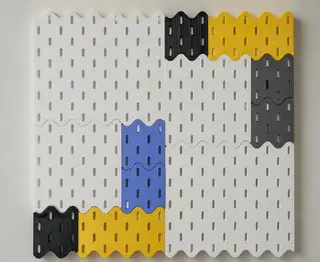

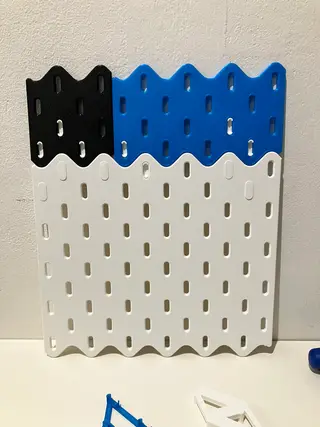

This model is a complete 3D printable pegboard system designed for everyday practical use. The board is similar to IKEA Skadis and the accessories should be compatible. The board panels feature shaped edges that fit together precisely, allowing multiple pieces to connect seamlessly without losing any usable holes. The interlocking geometry ensures panels stay aligned and stable during use, while maintaining every pegboard opening available for hooks and accessories. You can build a larger continuous pegboard surface by simply connecting compatible panels side by side. UPDATE 6.10. Added enforced connectors that are plugged from the back of the plates and connect them together. On the front side, there are also counter plugs that secure the connector in place and hide the hole to create a more seamless and smooth surface.

Do not miss my latest features:

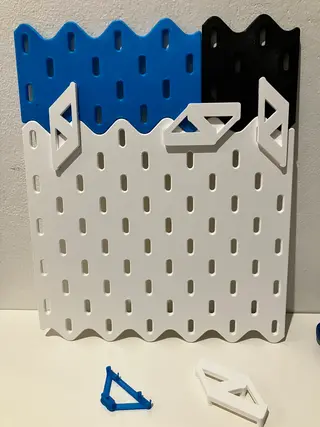

Description The system includes all necessary connectors to join individual panels together. Smaller boards can be securely attached to larger ones using these integrated connectors, eliminating the need to drill and mount each piece separately into the wall. This makes installation faster and more flexible, allowing you to customize your pegboard layout without additional hardware. All necessary parts in one place. The set also includes a dedicated wall mount designed to fit precisely into one of the board openings and be secured with a screw through the center. To control the distance from the wall, spacers in 10 mm, 20 mm, and 30 mm sizes are included as well. This makes the whole system fully printable and complete, without needing any additional purchased parts. It is suitable for organizing tools, hobby supplies, electronics, office items, 3D printing accessories, and many other everyday objects. Three panel sizes are provided: - Full Core One size 240 x 213 mm

- medium size 160 x 175 mm

- half size 160 x 93 mm

- quarter size 80 x 93 mm

This makes the system easy to scale for small or large setups depending on your needs. Designed with precision but with tolerances - Each piece has a 0.1 mm tolerance incorporated into its dimensions.

- A part that is 80 mm wide has a dimension of 79.9 mm.

- A part that is 160 mm wide has a dimension of 159.9 mm.

- And so on.

This should safely cover all imperfections of 3D printing and ensure that the parts always fit together perfectly. Click-in system Click-in mounting system for SKADIS accessories: the holder snaps in from one side and the cover locks it from the other, creating a secure fit.
