Modular Mini Tripod
por Henri en Thingiverse

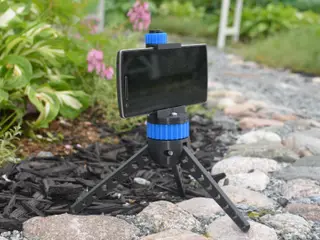

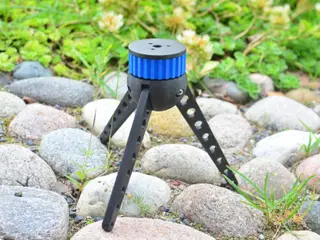

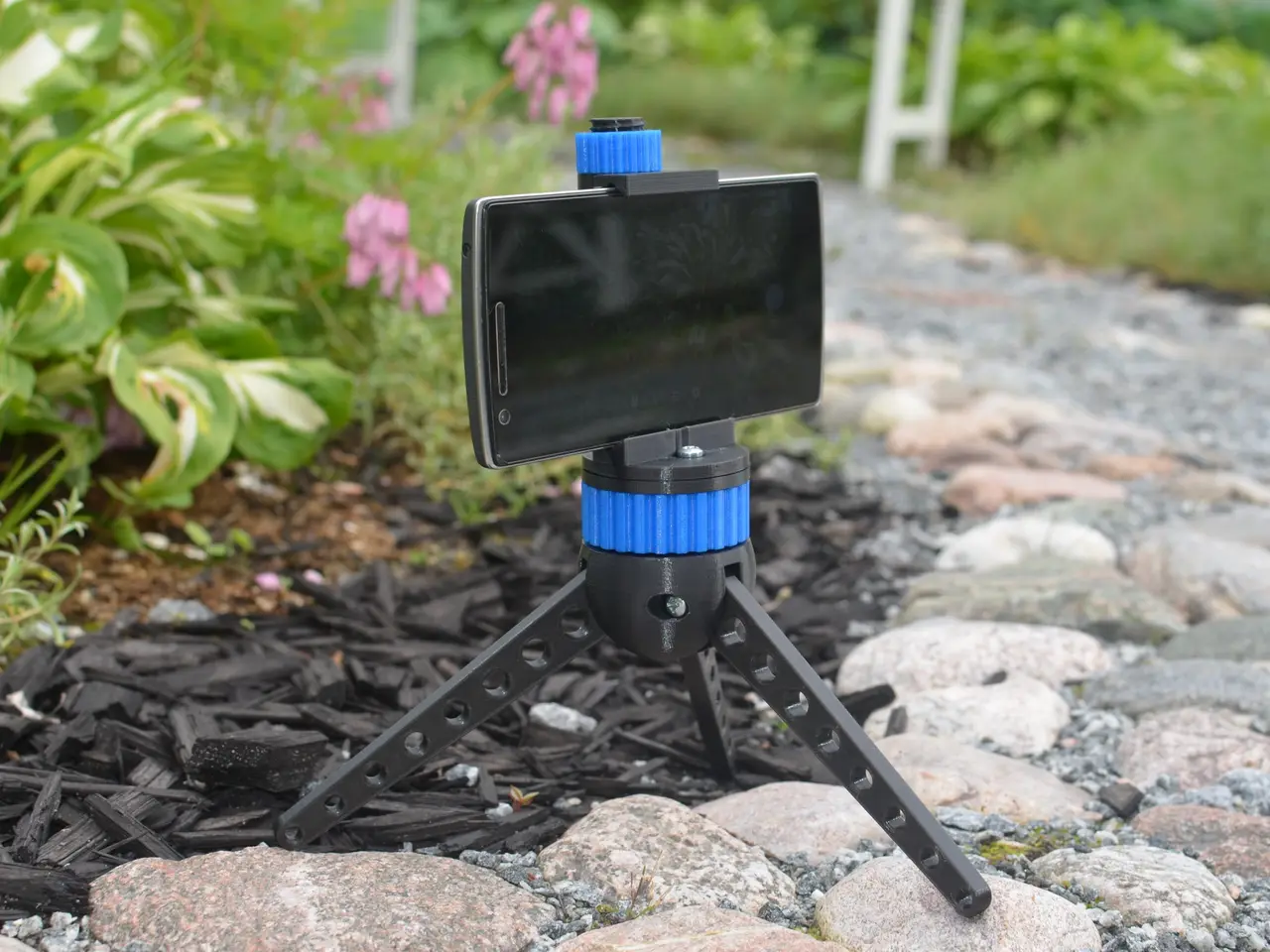

Sturdy tripod with modular mounting plate. I included smartphone holder (PhoneHolder_(1-3).stl) and mount for 1/4 inch camera bolt (Plate_QuarterInch_Bolt.stl). For those who would like to create their own mount for their device i included Fusion 360 file about Blank plate (PlateBlank.f3d). I can...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Henri.
Archivos (10)
- Tripod_Ball.stl STL · 2,3 MB
- Tripod_Lock.stl STL · 6,3 MB
- Tripod_Ring.stl STL · 4,0 MB
- Tripod_top.stl STL · 385 KB

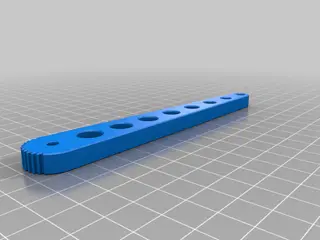

- Tripod_leg_12cm.stl STL · 684 KB
- PhoneHolder_1.stl STL · 13,4 MB
- PhoneHolder_2.stl STL · 269 KB
- PhoneHolder_3.stl STL · 4,0 MB
- Plate_QuarterInch_Bolt.stl STL · 287 KB
- PlateBlank.f3d F3D · 46 KB
- Categoría
- Tecnología
- Formatos
- STL, F3D
- Descargas (todas las plataformas)
- 13,171
- Publicado
También en
Sobre este modelo
Sturdy tripod with modular mounting plate. I included smartphone holder (PhoneHolder_(1-3).stl) and mount for 1/4 inch camera bolt (Plate_QuarterInch_Bolt.stl). For those who would like to create their own mount for their device i included Fusion 360 file about Blank plate (PlateBlank.f3d). I can collect links for accessories here. Assembly: - Insert Tripod_Lock into Tripod_Ball with teeth facing inwards. - Screw Tripod_Ring into Tripod_Lock. (Threads are left handed) - Insert Tripod_Top into its hole and secure it with screw (lock assembly). - You can figure out rest yourself :)
If you face any problems i'm happy to help. Wider mount made by Ransak: https://www.thingiverse.com/thing:3352202 Happy printing!
Descripción original del autor, publicada en Thingiverse.
