Modular Hydroponic Tower Garden (better 5-way pot and module) — modelo 3D

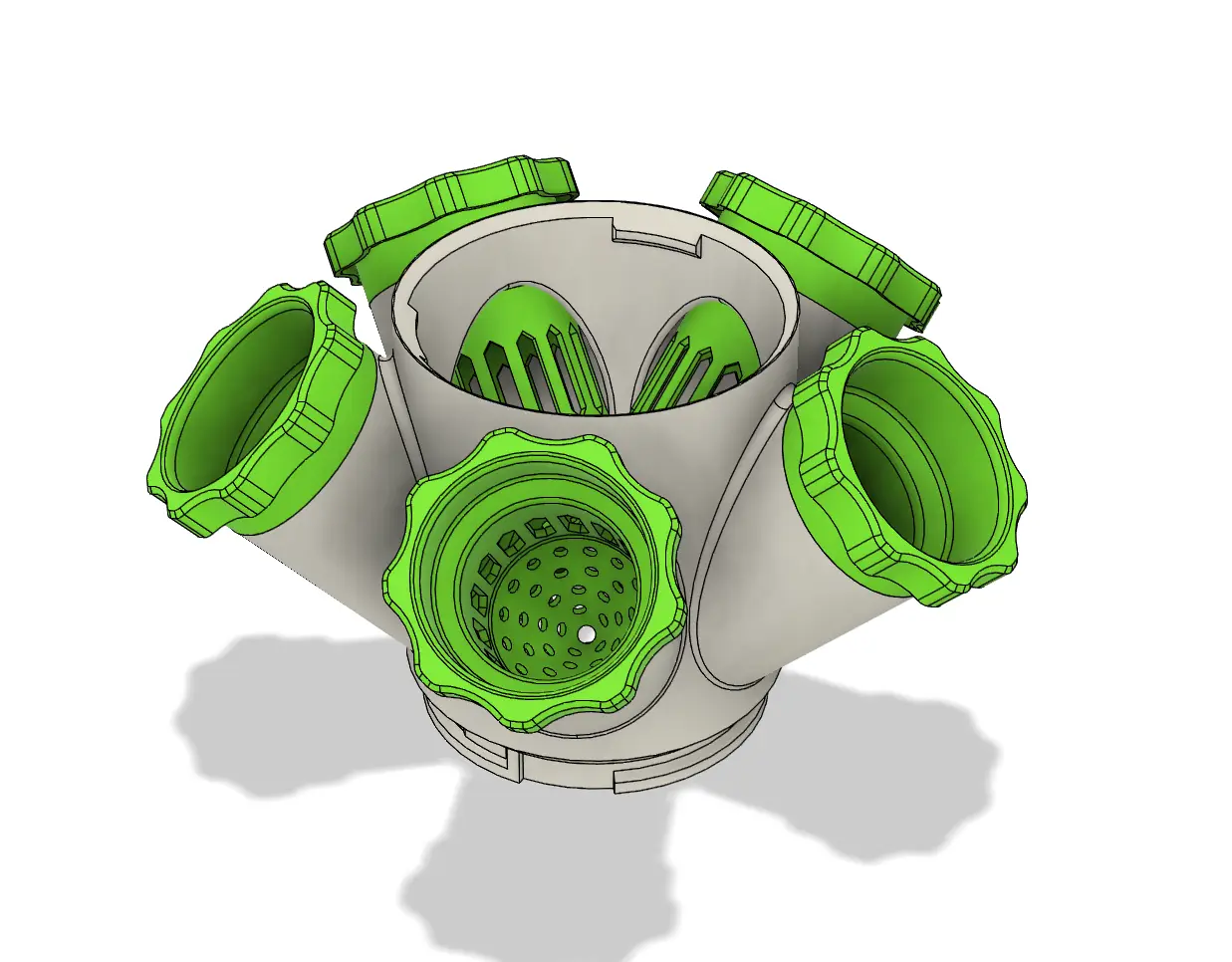

Modular Hydroponic Tower Garden (better 5-way pot and module)

por suit en Printables

Remix of the 5-way-pieces of the awesome Modular Hydroponic Tower Garden by boundarycondition on thingiverse

Descargar gratis Ver en Printables

Todos los archivos (4) en un ZIP

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a suit.

Archivos (4)
Categoría
Jardín
Formatos
3MF, STEP
Descargas
3,369
Publicado

Sobre este modelo

Simple mod to improve the 5-fold version of the the amazing Modular Hydroponic Tower Garden

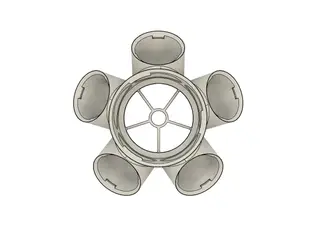

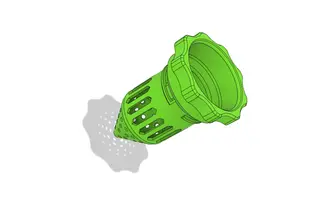

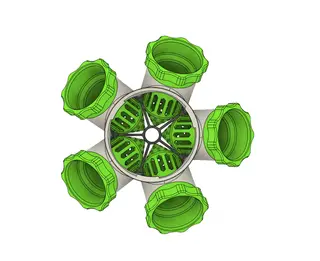

Parts are fully compatible, just some minor changes: Standard Pot enlarged the net cups, so they match the height of the standard size versions for the 3-way version - this way they get a bit more volume and catch more of the water, dripping down the center - the angle is a bit different, so they don't collide with eachother and the holes are a bit bigger than in the original (5,75 to 5 mm instead of constant 4 mm 5-Way Module also i changed the spoke design to 5-fold, since the spokes sit right between the pots and diverge the waterstream a bit, so also a bit more uniform wetting of the roots

Important Notes be aware, that the 5-way modules are pretty tight in space, so don't plan to grow anything big in there - like a full head of lettuce or a tomato plant - it is intended for smaller plants, like herbs that don't require much space

Descripción original del autor, publicada en Printables.
