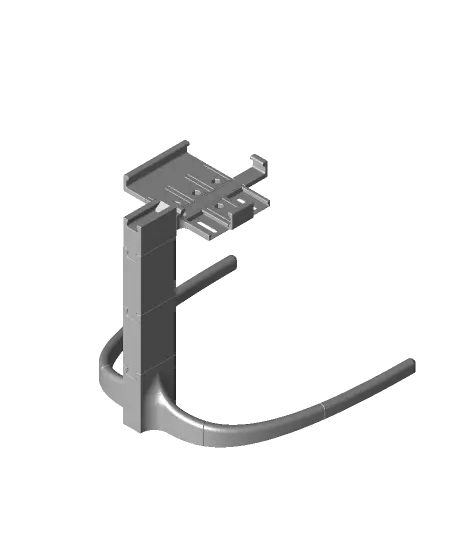

Modular Holder for Phone or Tablet Document Camera
por DaveMakesStuff en Thangs
This modular holder allows you to position your phone or tablet as a document camera.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a DaveMakesStuff.
Archivos (16)

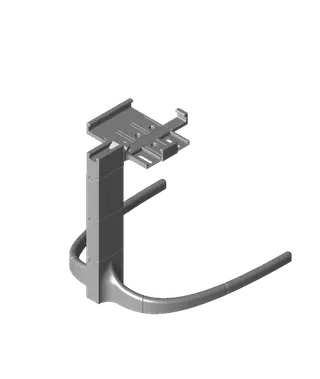

- Document Camera Holder Assembly.stl STL · 5,0 MB
- 5cm Upright.stl STL · 301 KB
- 10cm Upright.stl STL · 302 KB
- Base.stl STL · 725 KB
- Knob.stl STL · 799 KB
- Phone Holder Clamp Side.stl STL · 197 KB
- Phone Holder Clamp Top and Bottom.stl STL · 342 KB
- Phone Holder Platform.stl STL · 943 KB
- Support Extension Left.stl STL · 310 KB
- Support Extension Right.stl STL · 311 KB
- Support Left.stl STL · 418 KB
- Support Right.stl STL · 419 KB
- Tablet Holder Clamp Bottom.stl STL · 359 KB
- Tablet Holder Clamp Side.stl STL · 215 KB
- Tablet Holder Clamp Top.stl STL · 222 KB
- Tablet Holder Platform.stl STL · 1,2 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 90
- Publicado
Sobre este modelo

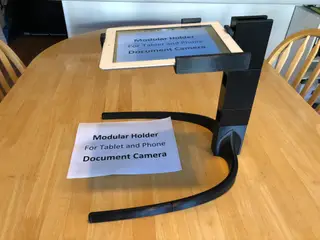

This modular holder allows you to position your phone or tablet as a document camera.

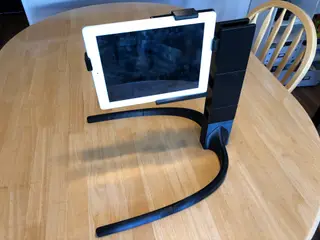

The height is adjustable, and the device can also be rotated to face the user. All parts are symmetrical, so the base can be oriented for both right- and left-handed users. It is possible to attach multiple devices at once.
When placing your phone or table in the holder, try to position the camera as close to midline as possible so that it is centered over the work space below.
The holder was designed specifically to assist teachers and other educators as they transition to more online instruction in the face of the COVID19 pandemic.
If you are a teacher, this might be a good project to give to one of your students to build for you!
See here for assembly demonstration: https://youtu.be/8JX6UO-asPU

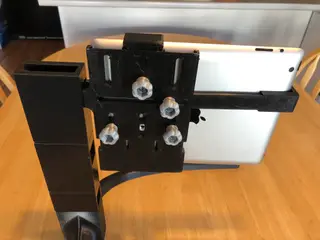

The sliding clamps are secured using 1/4" nuts with 3/4" long hex bolts. The best way to secure the nuts is by positioning them on the holes and heating them up with a soldering iron until they melt in to place. Alternatively, they can be press fit. The bolts fit tightly into the knobs. Use another bolt and hammer to get them all the way in if you need to.

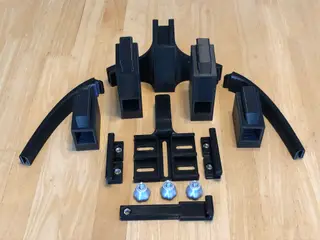

Here are the parts you will need:
Everyone will need:
1/4" nuts and 3/4" long hex bolts 1 Base 1 Support Left 1 Support Right As many 5cm and/or 10cm Uprights to reach the height you need. Test your device first to see what height works best. My tablet works best at 30cm, which is approximately two 10cm uprights and one 5cm upright.
To use a phone:
1 Phone Holder Platform 2 Phone Holder Clamp Top and Bottom 1 Phone Holder Clamp Side
To use a Tablet:
1 Tablet Holder Platform 1 Tablet Holder Clamp Top 1 Tablet Holder Clamp Bottom 1 Tablet Holder Clamp Side Support Extensions Left and Right (these are needed to provide a larger base of support for tablets)
Knobs:
Each holder needs at least three knobs, more if you'd like it to be more secure.
This model is submitted to the November 2021 "DIY: Don't Buy 3D Modeling Challenge" in the "Household DIY" category. #custom #thangs3d #pdo
