Modular Desk Shelf Fully Printed • Screwable Addon

Updates: 18/03/2025 Added a new profile: “Stop Clip Added _ Mid Shelf Orhanizer and Drawers set” where you can now find stop clips for the full size drawer and the double sided stop end caps for the rails if you are mounting the double low profile drawer option.

Addons Link:

• Smartphone Holder 📱

• Headphone Holder 🎧

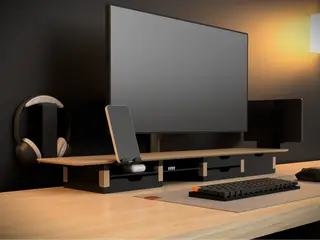

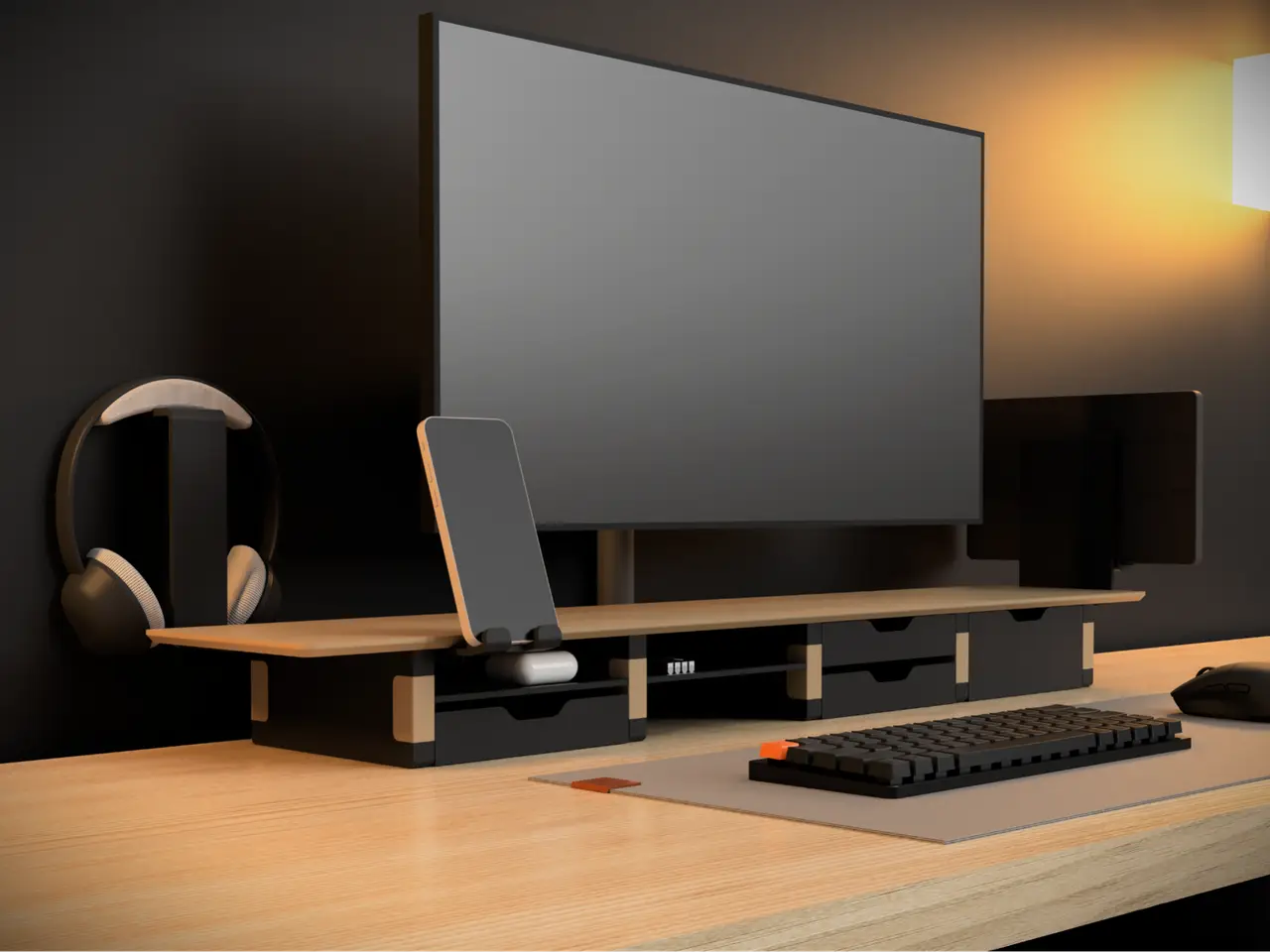

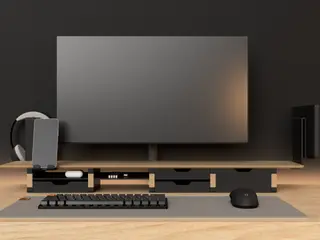

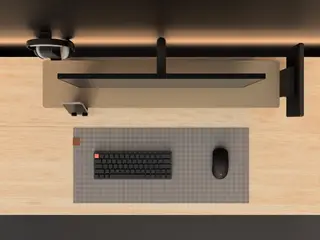

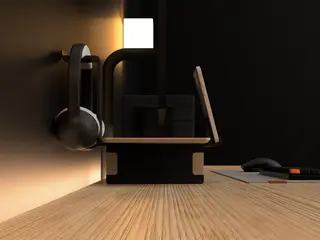

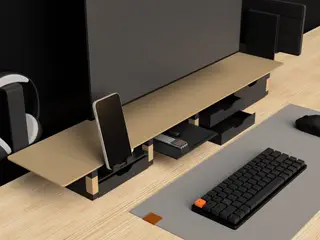

Boost MeConsider Boosting to let me bring you awsome designs! 😊 Introducing this Modular Desk Shelf, the fully 3D Printed ultimate desk shelf designed for maximum versatility and functionality. With this model you can effortlessly customize your workspace to fit your unique needs and style.

Its innovative design allows you to configure a variety of drawers, shelves, and addons, including addons for smartphones, headphones, and accessories that i will soon release on my MakerWorld profile.

Key features include:

- Modular Design: Easily adjustable components to create the perfect setup for your workspace.

- Various Configurations: Mix and match drawers, shelves, and addons to suit your storage and organizational preferences.

- Addons for Tech and Accessories: Dedicated spaces for your smartphone, headphones, and other essential accessories.

- Printing Time and Material: No Ams is needed, if you want to make it dual color as mine you can print the “2 color version” with pause to change the color you prefer. The printing time and the filament usage are finely tooned to be as less as possible.

You can follow all the instructions below for the correct assembly of the main parts, and then you can experiment to create your unique version that suits your needs:

------------------------------ These are the clips you will need to assemble the modules together. There are three types: a basic one without rail slots, which you can choose if you do not want drawers or shelves or for sections where you will not install them. Alternatively, you will find clips with slots on one or two sides, featuring a dovetail joint that allows mounting a rail on which the drawers will then slide. To install them, simply press them into the designated spaces until you hear a click.

------------------------------ These are the rails; slide them from the front towards the back, passing through both clips.

------------------------------ This is the rail end cap, which also acts as a stopper for the drawer. Insert it from the back of the shelf.

------------------------------ Finally, insert the drawer or shelf into position, and you're done. Remember that all configurations are compatible: shelf on top and drawer below, the opposite, or two drawers. Have fun creating your preferred setup, and remember, if you change your mind in the future, you can always reprint the clips to remove the shelves and have a more minimal look. Tall drawers do not require any rails; simply print the basic clips and insert them into position.

------------------------------ Complete with 10x3 mm rubber pads on the underside to make it non-slip.

------------------------------ Now have fun exploring my MakerWorld profile, as many new addons and accessories are coming soon. These are compatible and can be screwed and attached to your new shelf!
