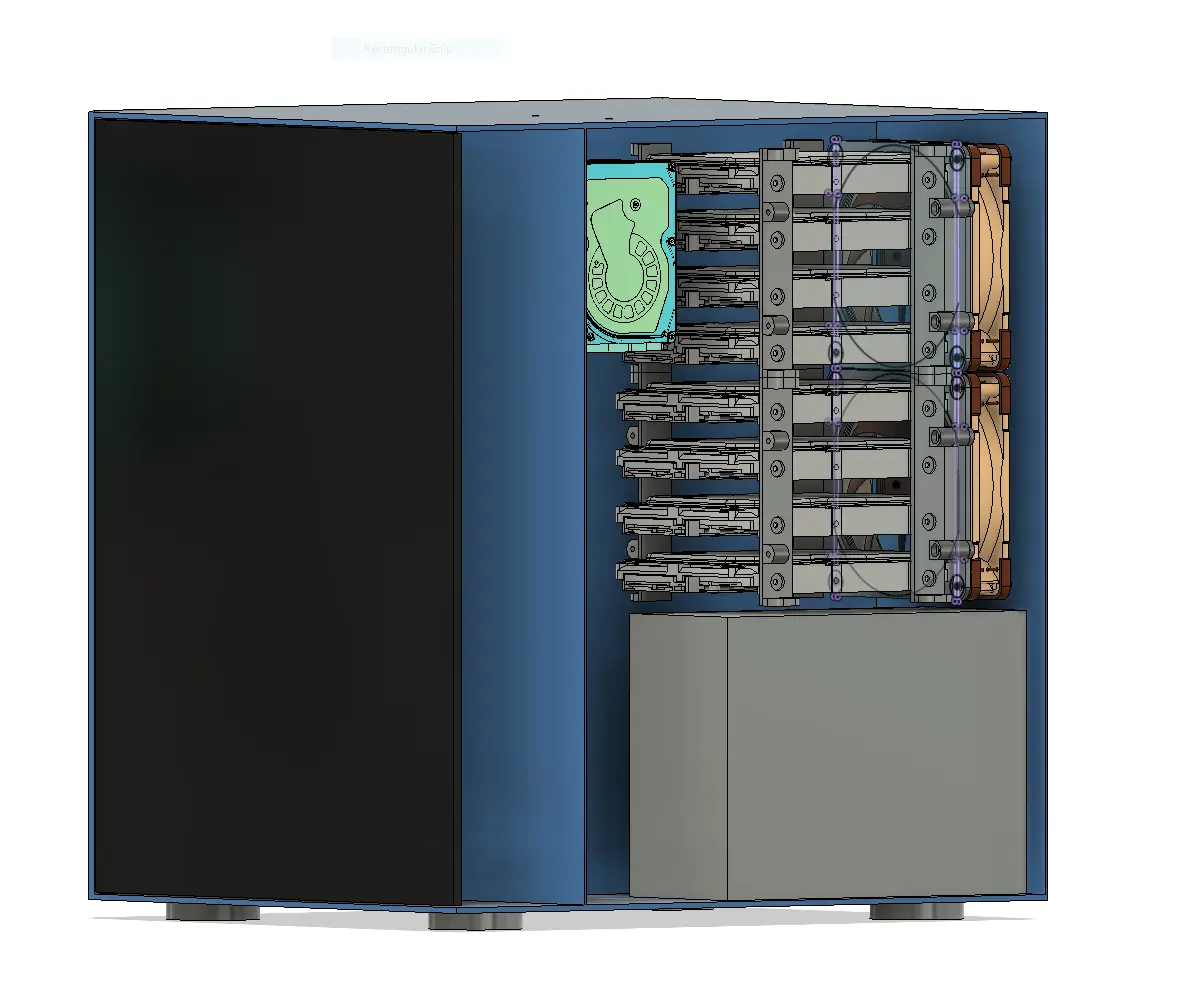

Modular 3.5" HDD Cage
por D4rk Helmet en Printables
I bought a used Case, but the HDD cage was missing. So I had to make a new one. It is pretty generic.
Licencia
Uso comercial permitidoPuedes usarlo, modificarlo y venderlo; si distribuyes versiones modificadas deben ir con la misma licencia y sus fuentes.
Al descargar aceptas respetar la licencia y dar crédito a D4rk Helmet.
Archivos (10)
- hdd_bracket_1.step STEP · 87 KB
- hdd_bracket_1.stl STL · 255 KB
- hdd_bracket_2.step STEP · 88 KB
- hdd_bracket_2.stl STL · 255 KB
- hdd_bracket_1.3mf 3MF · 92 KB
- fan_addon_bracket.step STEP · 196 KB
- fan_addon_bracket.stl STL · 264 KB
- fan_addon_bracket.3mf 3MF · 48 KB
- hdd_bracket_1_02mm_petg_mk3s_8h32m.gcode GCODE · 28,8 MB
- fan_addon_bracket_02mm_petg_mk3s_2h14m.gcode GCODE · 8,5 MB
- Categoría
- Tecnología
- Formatos
- STEP, STL, 3MF, GCODE
- Descargas
- 2,679
- Publicado
Sobre este modelo

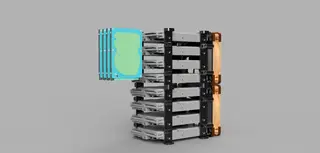

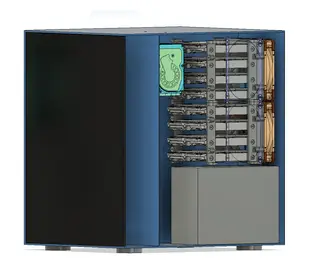

I bought a used Case, but the HDD cage was missing. So I had to make a new one. It is pretty generic. It is designed for M3x10 and M3x16 bolts and hex nuts. I desinged it for Noctua Fans. But other fans should fit ass well. I highly recommend cooling the disks. Print instructions 50% Infill, PETG recommended, but PLA schould work to. hdd brackets The brackets are mirrored. You need 2 of each bracket for 4 drives. You can stack them as high as you want and bolt them together with M3x10 bolts and nuts The brackets don't need supports. Fan Addon Print supports on the buildplate only. Depending on the ventilation in your case you may want to add a 120mm fan. You screw it on with M3x16 Bolts and nuts. You also need the mounting hardware for the fan. fan screws or something similar.
Descripción original del autor, publicada en Printables.
