Modern Hidden-Screw Wall Hook

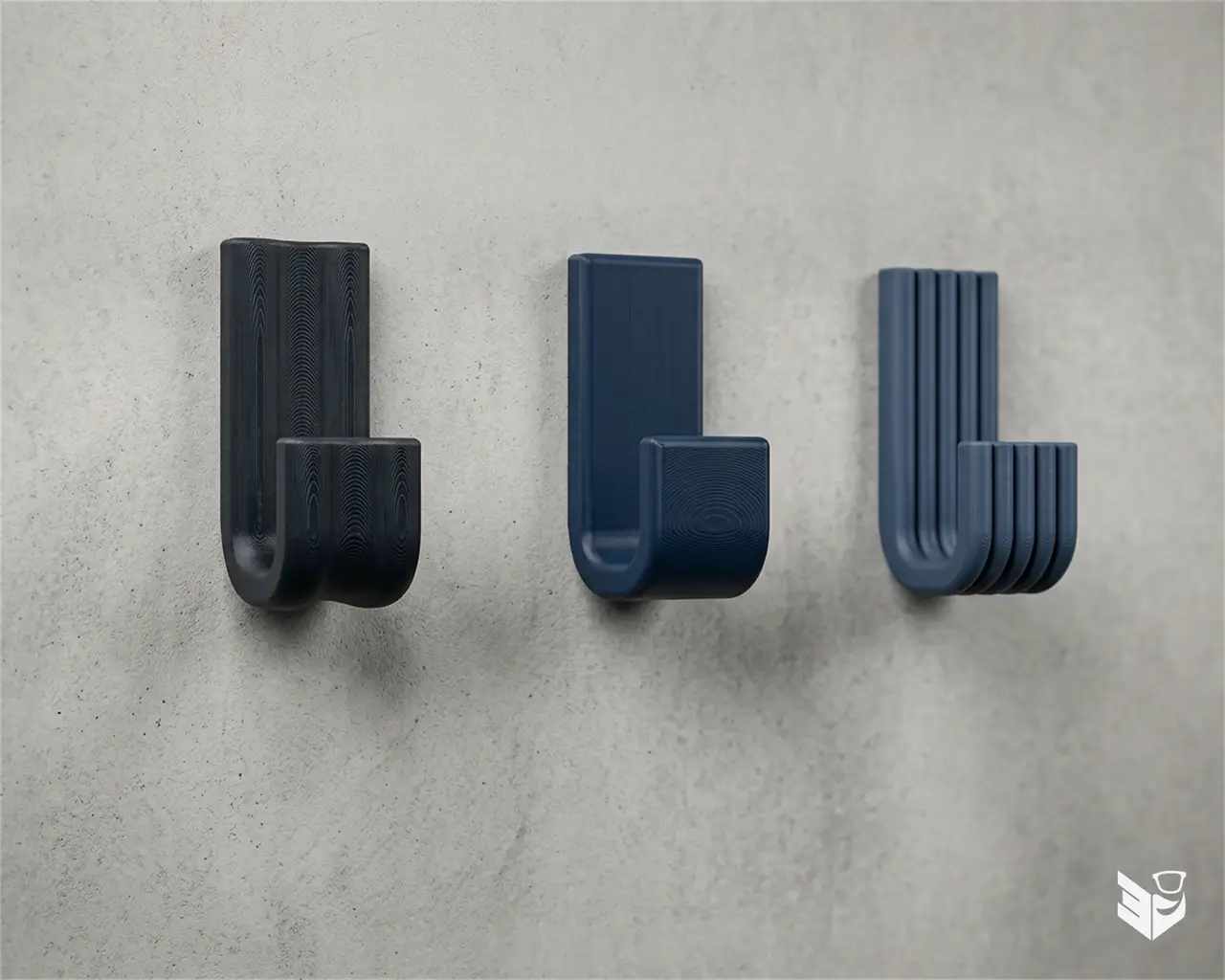

A wall hook featuring a modern and minimal design, engineered with a sliding interlocking mounting system that completely hides the mounting screws for a clean and elegant aesthetic. The project includes three different front surface finishes (smooth, wave texture, and overlapping cylinders texture) to fit any interior decor style. 🛠 Community & Support Do you like this design? Community support is what turns ideas into new free files (and keeps my printer fed with filament!): - ⭐ Leave a Like: It costs nothing, prevents wet filament, and motivates me to keep designing! - 📸 Share a Make: I love seeing my designs printed in wild colors and fancy filaments. - 🚀 Follow Vinors3DLab: Hit that Follow button so you don't miss upcoming releases, extra modules... and to keep the algorithm happy! 🤖

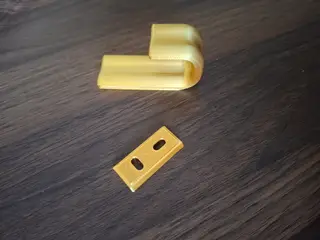

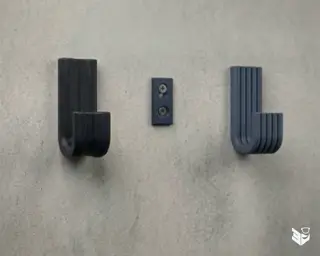

✨ Key Features - 🔒 Hidden Screws: The wall bracket attaches directly to the wall, and the hook slides smoothly over it into place. - 📐 Easy Adjustment: The wall bracket features two slot holes (one vertical and one horizontal) to allow easy leveling and alignment adjustments during installation. - 📏 Optimal Dimensions: - Height: ~65 mm - Depth: 30 mm - Thickness: 25 mm - Slot Holes: 4 mm diameter, 8 mm length

⚙️ Recommended Print Settings (FDM) To ensure maximum structural strength and a precise fit for the sliding mechanism, the following print settings are recommended: - 🧩 Infill: At least 20% (Grid, Gyroid, or Cubic patterns are suggested for enhanced mechanical strength). - 📏 Layer Height: 0.2 mm (optimal balance between surface quality and print speed). - 🛡️ Walls / Perimeters: At least 3 walls to ensure solid load-bearing points and sturdy sliding rails. - 🏗️ Supports: Recommended only for the internal slot of the sliding hook piece to guarantee smooth interlocking tolerances.

⛔ NO COMMERCIAL USE WITHOUT A LICENSE You may not sell physical prints of this object unless you maintain an active Commercial or Professional License at Vinors 3D Lab. 🛒 Subscribe for Commercial Rights & Seller Badge: https://www.patreon.com/cw/Vinors3DLab
