MMX Multi-Material Extruder – Exclusive Final Release

🚀 MMX OG — Serial Number Registration Now Open! We’re officially opening serial number requests for the MMX OG (4-Color) Multi-Material Extruder. If you’ve built one and made it work — this is your moment to make it official. 🔩🔥 Each registered unit will receive a unique MMX Serial Number, as recognition for your work, dedication, and for bringing this community-driven system to life. Not everyone who started the MMX journey finished it — so if you did, congratulations! You’ve earned your spot in the project’s history. 👉 Register your build here: http://cn3d.eu/mmxserialrequest Thank you for trusting our design and being part of the CN3D community! Together we’re showing the world how far this maker movement can go. 💪

lWe have made the idler doors a little bit narrow this way we have increased the gap where the idler door sits so it will not catch by mistake. 14-07-2025

Please watch this video before Printing

We have updated the model now the tray has a space for a step down so if you want to have the latest model download and reprint the bottom panel and the ebb tray 12-06-2025 you will need:

1x LM2596 DCDC Buck https://s.click.aliexpress.com/e/_okEcSwy 2x M3x4 screws 2x M3 Heat set inserts 4,5 OD 3mm long

This mod was a suggested by our member GcodeGearHead the same one made a killer documentation

We have updated the CAD it was a small err at the T36 Servo Pulley. only if you have used the one from the cad you have to reprint it! 16 - June - 2025 Also update the Right Side Cover. Thanks to our member azlaeel for pointing this out Check the download section there is a zip file that includes Orca Slicer profile for MMX with some generic profiles! Thanks to Muriel for the great work! Also you will find there the MMX Assembly Manual made by 3DPO UPDATED 12-05-2025

We can proudly announce 📣 that there is a kit available for purchase. The kit was tested, contains quality components and is all you need to build your MMX. You just have to download the files from here and print them. The kit does not contain the 3d printed parts. https://s.click.aliexpress.com/e/_EzjN06s

New update to the Camshaft and to the Idler doors that they are numbered to the specific locations. also https://github.com/moggieuk/Happy-Hare added the MMX logo to the Mainsail PR and it's part of a new PR for Fluidd

Only the camshaft need support the doors don't need

Today 3 of April I have update the design with a small change the BMG gear in the idler door sit not a little back this way we ensure the will be engaged only when the gate is selected with the previous design it might be caught and allow the bmg to spin even when it was not selected the gear.

We will release soon a full config and also our members are working in parallel to make how to videos in English and Spanish

As a token of appreciation, this will be available exclusively to our members for the first two weeks, after which it will be open to everyone. Thank you for your understanding and for your continued support of our work!

I have update the Cad and also the T36 The servo Pulley to be aligned with the camshaft

I have also uploaded a PDF with the BOM

I have added a 3mf for the Gate that have a support blocker for the filament path.

this way you will not have support on the filament path that is hard to remove. if we lay it down on a side you will print it with 5 minute faster

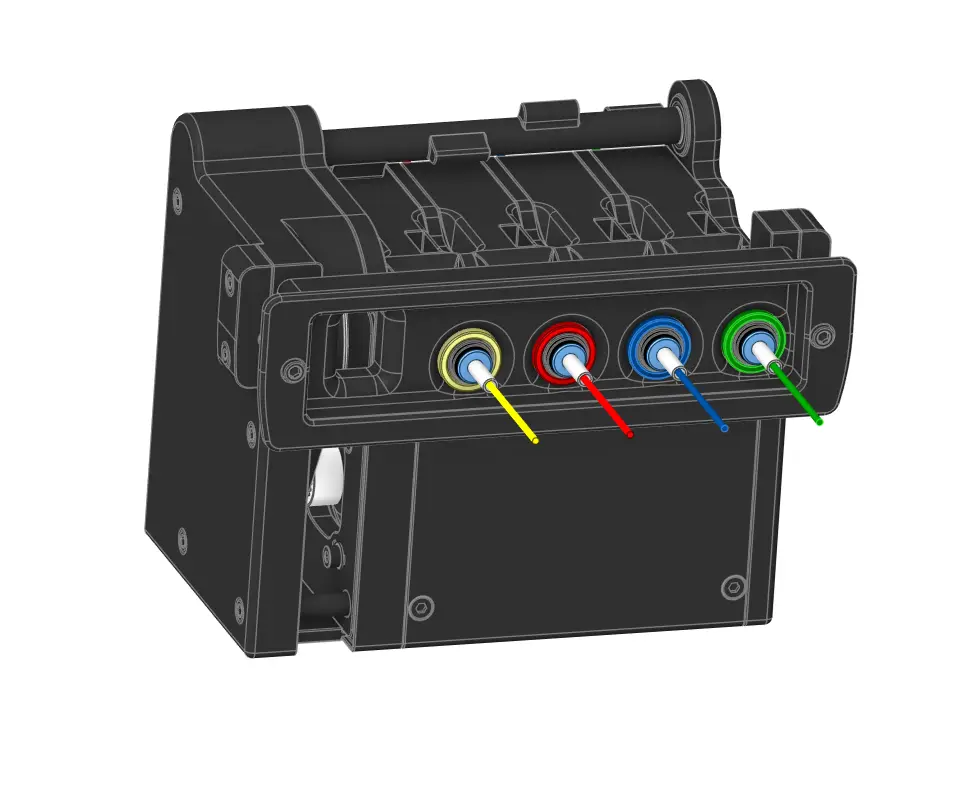

MMX Multi-Material Extruder Exciting News: MMX Multi-Material Extruder Development Update! We’re thrilled to share that we are making significant progress on our multi-material system! After evaluating the Pico MMU, we’ve decided to move forward with a completely redesigned concept – one that’s more user-friendly, customizable, and versatile. ---Why MMX Stands Out Customizable Capacity - Run not just 4 colors or materials, but as many as you want! Increase or decrease the number of inputs based on your needs. but for now we stick to 0-1-2-3 Gates

Reliability Boost - Equipped with GT2 closed-loop belts for enhanced durability.

- Adjustable tensioning ensures no slippage in the system.

Enhanced Filament Handling - Integrated Bontech dual gears for superior filament grip and smoother guidance.

Multi-Functional Use - Perfect for multi-color or multi-material printing.

- Supports advanced applications such as:

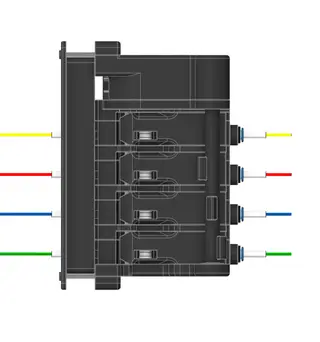

Gate Features - Each gate features a pre-gate filament sensor and LED indicators.

- Thanks to the integration with Happy Hare (special thanks to Moggie for the help!), the system automates sequences when the pre-gate detects filament in, ensuring smooth operation and many more features.

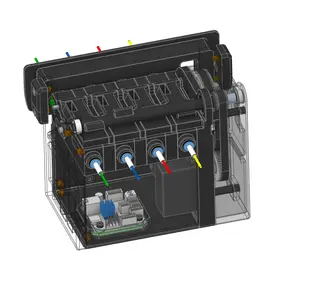

Hidden Electronics and Sliding Mechanism - The electronics are neatly hidden in a box with a sliding mechanism for easy access.

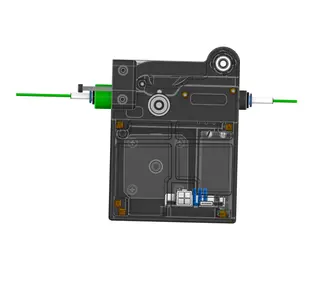

Extruder Design - The extruder is based on the Voron V4, a reliable and powerful extruder with an 80:20 gear ratio.

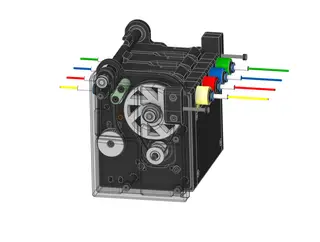

Advanced Servo and Camshaft Mechanics - Gates are engaged by a servo with a 36:20 ratio to the camshaft, allowing the camshaft to rotate 320 degrees even when the servo moves only 180 degrees.

- The camshaft is spaced 90 degrees for each lobe from the previous one. This results in 50 degrees of servo movement per operation, thanks to the 1.8:1 ratio between the servo and the camshaft.

Compatibility - Designed to work seamlessly with both direct drive and Bowden setups.
