MK XIII Micro Quad

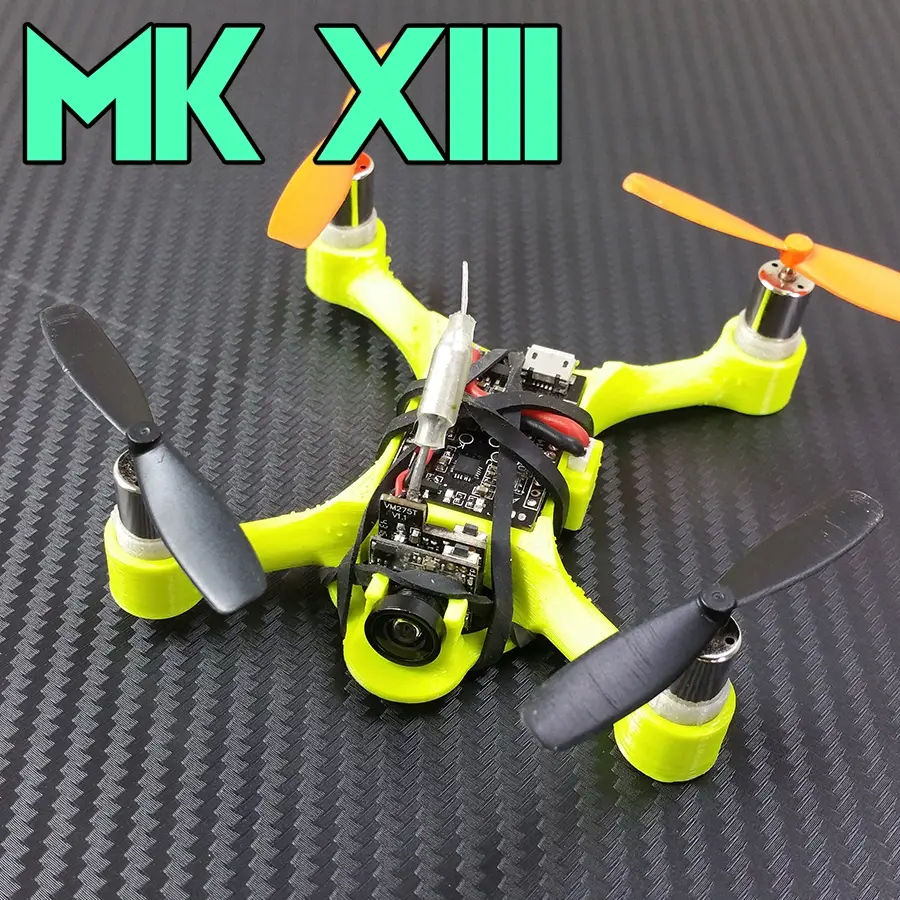

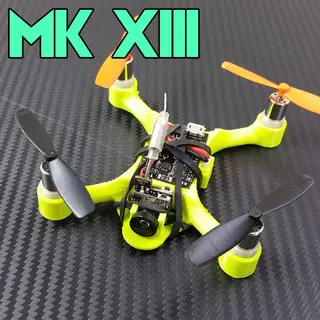

Meet the MK XIII Micro Quad frame! If you are looking for a brushed FPV frame to race inside and outside this is the frame of your dreams!

I have published these files for FREE download! Please go to my youtube video and hit the like button if you think this is a good frame design.

This frame is the 13th iteration in my micro quad frame design that I started designing after flying the QX90. The QX90 opened my eyes to how much fun a micro sized quad could be. I have put a lot of time into making this frame the best possible solution for anyone looking to build a sub 100mm quadcopter. A lot of crashing helped me determine the weak points in this frame and I did my best to keep weight down while also making this thing as tough as possible.

How to install electronics video can be found here: Micro Quad Electronics

BOM (ORDER THESE PARTS TO MAKE ONE)~~~~~~~~~~~~~~~~~~~~~

Spintech Brushed Motors (8.5X20): http://amzn.to/2fXujVM

SP Racing F3 Evo Flight Controller: http://bit.ly/2lsf0q5

Ladybird Props: http://amzn.to/2dxYNMs

Tiny SBUS 8 CH FGrSky Rx: http://bit.ly/2l69Svu

Crazy Pony 25mW FPV camera: http://amzn.to/2m31YSY

FEATURES~~~~~~~~~~~~~~~~~~~~~~

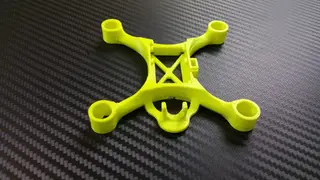

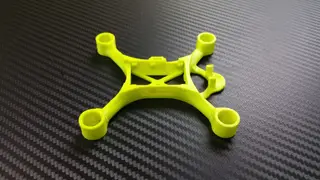

- Frame with motor mounts Weighs 10.8 grams

- 100mm diagonal X 70mm across motor spacing fits parrot props

- Stiff enough to keep out nasty oscillations that play tricks on flight controller

- (UPDATED) FPV camera now has better protection from nasty crashes and has a special slotted mount to securely hold FPV camera in place.

- Micro Losi connector hard mounted to frame to keep wires out of props

- (UPDATED) Motor wires are routed through a channel on the underside of each arm. This keep wires from getting damaged or snagged, while also making them easy to remove and instal without having to remove other components.

- Frame arms support brushed motors from the bottom to prevent the shaft pushing the back plate off

- (UPDATED) Integrated flight controller standoffs are now bigger and make it easier to mount the flight controller.

- (Updated) larger diameter antenna passages allow for easy install in arms 1 & 2. Keeps Rx antenna safe and out of the way.

- Designed to hold 8.5X20 brushed motors

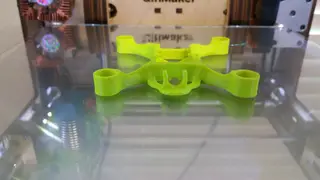

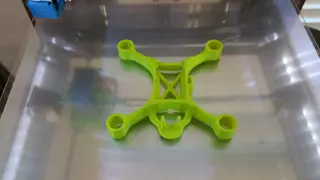

- Easy to print, requires no supports

Printing Details (MX_XIII FRAME) & (Motor_Mount)~~~~~~~~~~~~~~~~~~~~~~~~

(MX_XIII FRAME)

RECOMMENDED PRINT SETTING FOR FRAME (PLA):

(You can print this frame out of any material you want)

- 0.2mm layer height

- 225C First layer 220C rest of print

- 60C Build plate

- 60mm/s print speed
