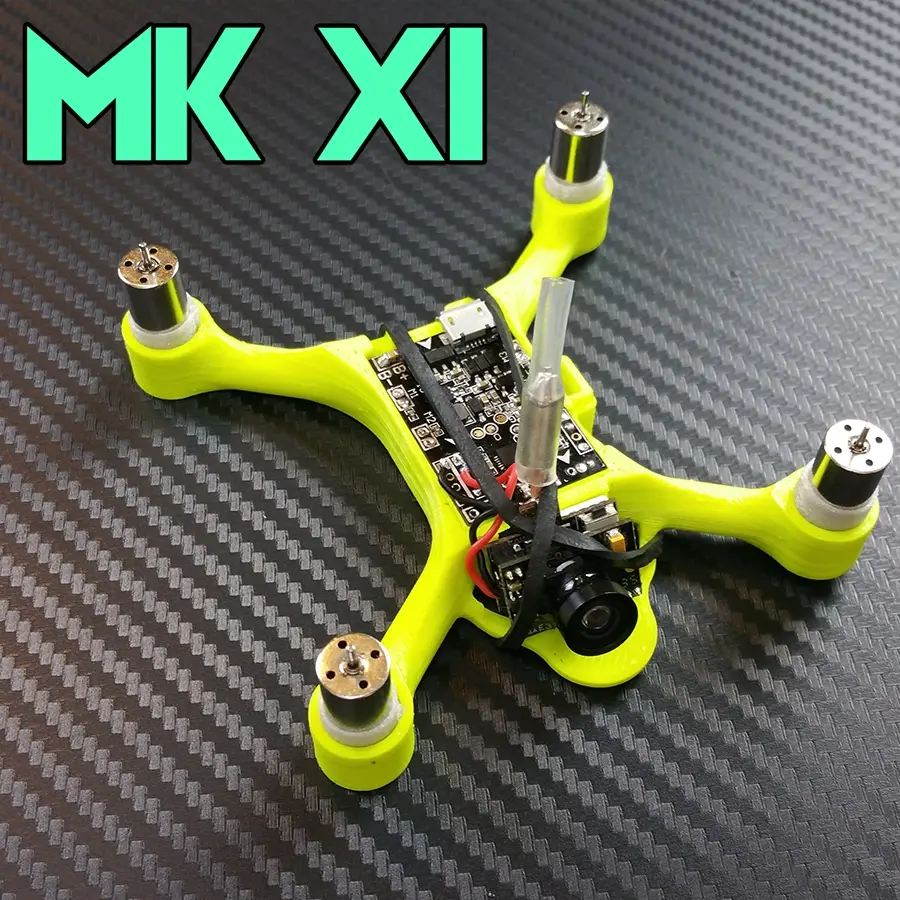

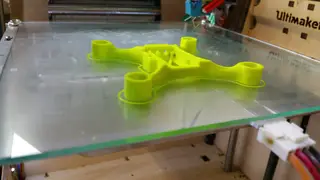

MK XI Micro Quad Frame

NEWEST VERSION OF FRAME CAN BE FOUND HERE: http://bit.ly/2mGyoQ4

I have published these files for FREE download! Please go to my youtube video and hit the like button if you think this is a good frame design.

This frame is the 11th iteration in my micro quad frame design that I started designing after flying the QX90. The QX90 opened my eyes to how much fun a micro sized quad could be. I have put a lot of time into making this frame the best possible solution for anyone looking to build a sub 100mm quadcopter. A lot of crashing helped me determine the weak points in this frame and I did my best to keep weight down while also making this thing as tough as possible.

How to install electronics video can be found here: Micro Quad Electronics

BOM (ORDER THESE PARTS TO MAKE ONE)~~~~~~~~~~~~~~~~~~~~~

Spintech Brushed Motors (8.5X20): http://amzn.to/2fXujVM

SP Racing F3 Evo Flight Controller: http://bit.ly/2lsf0q5

Ladybird Props: http://amzn.to/2dxYNMs

Tiny SBUS 8 CH FGrSky Rx: http://bit.ly/2l69Svu

Crazy Pony 25mW FPV camera: http://amzn.to/2m31YSY

Features~~~~~~~~~~~~~~~~~~~~~~

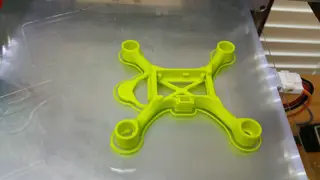

- Frame with motor mounts Weighs 10.8 grams

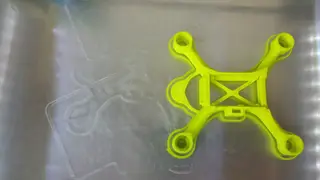

- 100mm diagonal X 70mm across motor spacing fits parrot props

- Stiff enough to keep out nasty oscillations that play tricks on flight controller

- FPV camera protection keeps everything safe during a crash

- Micro Losi connector hard mounted to frame to keep wires out of props

- Motor wires are routed inside arms to keep wires from getting damaged or snagged

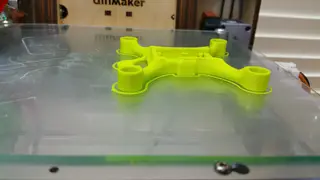

- Frame arms support brushed motors from the bottom to prevent the shaft pushing the back plate off

- Integrated flight controller standoffs make mounting electronics easy

- Antenna passages in right side arms parallel with motor wires to keep antenna safe and out of the way

- Designed to hold 8.5X20 brushed motors

- Use F3 Evo Micro flight controller with the 8ch tiny Frsky Rx
