Mk Ultra - 3D printable 1/10 4wd buggy

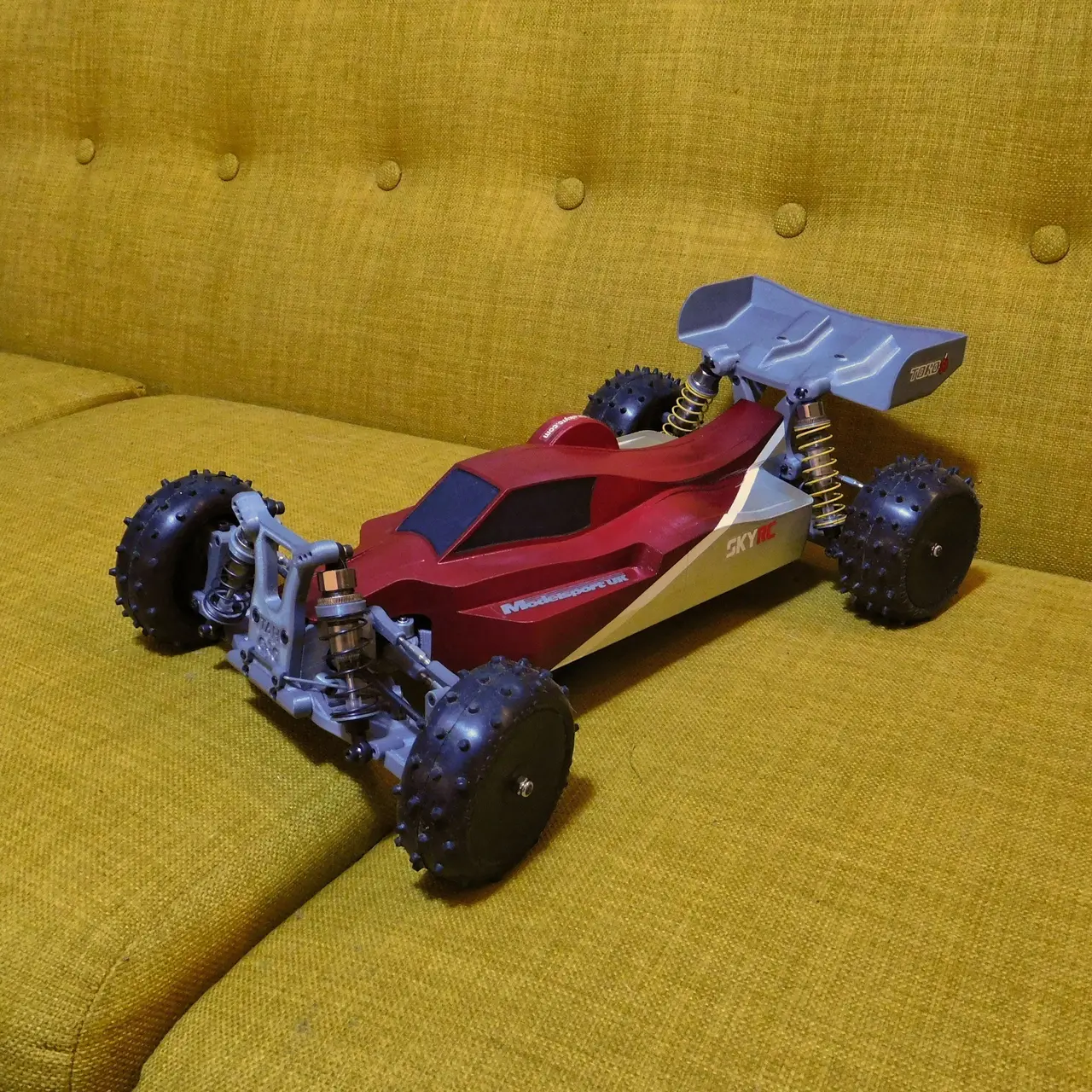

This is the Mk Ultra. A high performance belt driven 4WD 1/10 scale buggy. It is very sophisticated and capable. The car can withstand plenty of abuse, and is easy to repair and maintain.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Lynxman.
Archivos (65)
- Armfront01.STL STL
- Armrear01-SWB.STL STL
- Battery01.STL STL

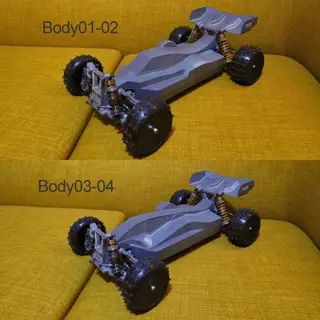

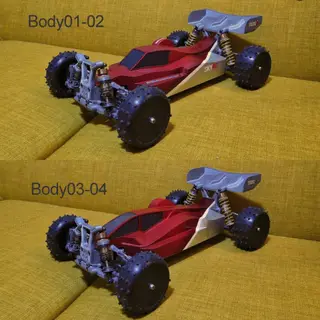

- Body01.STL STL
- Body02.STL STL
- Body03.STL STL
- Body04.STL STL
- Chassis01-New.STL STL
- Chassis02-New.STL STL
- Chassis03-New.STL STL
- Chassis04-New.STL STL
- Chassis05.STL STL
- Diffspacer.STL STL
- Geardiff.STL STL
- Idler01.STL STL
- Layshaft16t.STL STL
- Layshaft17t.STL STL
- Links01.STL STL
- MKUltra-explodedview.zip ZIP
- Motormount01.STL STL
- Ni-MHBody.STL STL
- Option - Armrear-LWB.STL STL
- Option - Armrear-MWB.STL STL
- Option - Balldiff.STL STL
- Option - FSdiffpulley.STL STL
- Option - FSdiffspacer.STL STL
- Option - Hexes.stl STL
- Option - Pivotrear.stl STL
- Option - Shockpistons.STL STL
- Option - Slipper.STL STL
- Option - Spindlefront-110-120mmAdjustableCVD.STL STL
- Option - Spindlefront02-Ackerman-110-120mmAdjustableCVD.STL STL
- Option - Spindlerear-110-120mmAdjustableCVD.STL STL
- Option - Spindlerear-frontaxle.STL STL
- Option - Spindlerear-shortaxle.STL STL
- Option - Spindlerear.STL STL
- Option - Swaybar.STL STL
- Option - Turnbuckles.stl STL
- Part description.txt TXT
- Pinion22t.STL STL
- Pinion28t.STL STL
- Pivotfront01.STL STL
- Pivotrear01.stl STL
- Rearshockcover01.STL STL
- Servomount01.STL STL
- Shockadapter01.STL STL
- Shocktowerfront01-New.STL STL
- Shocktowerrear01-New.STL STL
- Spindlefront01.STL STL
- Spindlefront02-Ackerman.stl STL
- Spindlerear01.STL STL
- Spur87.STL STL
- Spur92.STL STL
- Spur97.STL STL
- Spuradapters01.STL STL
- Steering01.STL STL
- Steering02-Ackerman.STL STL
- Tensionerfront01.STL STL
- Tensionerrear02.STL STL
- Tirefront01.STL STL
- Categoría
- Repuestos
- Formatos
- STL, ZIP, TXT
- Descargas
- 4,500
- Publicado
Sobre este modelo
This is the Mk Ultra. A high performance belt driven 4WD 1/10 scale buggy. It is very sophisticated and capable. The car can withstand plenty of abuse, and is easy to repair and maintain.
You can ask questions and read about the car development here:
https://www.rcgroups.com/forums/showthread.php?2952626-MKUltra-A-3D-Printable-4WD-1-10-scale-buggy
Here's a good source of hardware like bearings and fasteners for the car in one place:
https://rcprinter.com/products/mkultra-build-kits
Here's a great video by Elias F showing how he assembled his MK Ultra and even adapted some of his hardware to fit: https://www.youtube.com/watch?v=5rRw8LsLaLM
More videos:
https://youtu.be/KmVKcAIOOPk
https://www.youtube.com/watch?v=1nWqq_2L4IA
https://youtu.be/aaE_N88hye8
https://youtu.be/YBmmWoxyvKM
https://youtu.be/4D7m5fsxQ9I
Driving during development:
https://youtu.be/OO4_NmBveJM
How to install and remove the body:
https://youtu.be/kis6NHcgPJY
Free option parts:
https://cults3d.com/en/various/oil-shocks-for-1-10-scale-rc-cars
https://cults3d.com/en/various/cooling-fan-spur-gear-option-part-for-mkultra-1-10-4wd-buggy
https://cults3d.com/en/various/glueless-1-10-rc-car-wheels
The prototype runs with a 13,5T brushless sensored motor.
-Uses easy to find belts from Schumacher K1 buggy.
-Can use CV axles from multiple brands (Kyosho, Tamiya, Schumacher, Basher, Quanum, FTX and more).
-Wrap around body is held on without clips or velcro and keeps dirt out.
-Super precise steering thanks to ball bearings in all hinges.
-Small turning radius.
-Radial shock positions ensure minimal height change with shock adjustment.
-Printable high strength gear, sealed gear or ball diff option.
-Supports FS Racing steel gear diff with adapters.
-Printable 48dp pinion and spur gears.
Descripción original del autor, publicada en Cults3D.
