Camera mount for Buddy3D Camera
Licencia
Uso comercial permitidoPuedes usarlo, modificarlo y venderlo; si distribuyes versiones modificadas deben ir con la misma licencia y sus fuentes.
Al descargar aceptas respetar la licencia y dar crédito a Prusa Research.
Archivos (6)
- Categoría
- Para tu impresora
- Formatos
- 3MF, STL
- Descargas
- 2,133
- Publicado
Sobre este modelo

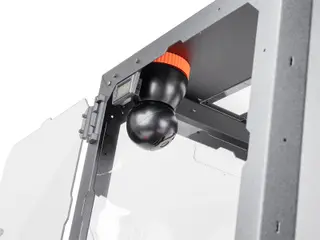

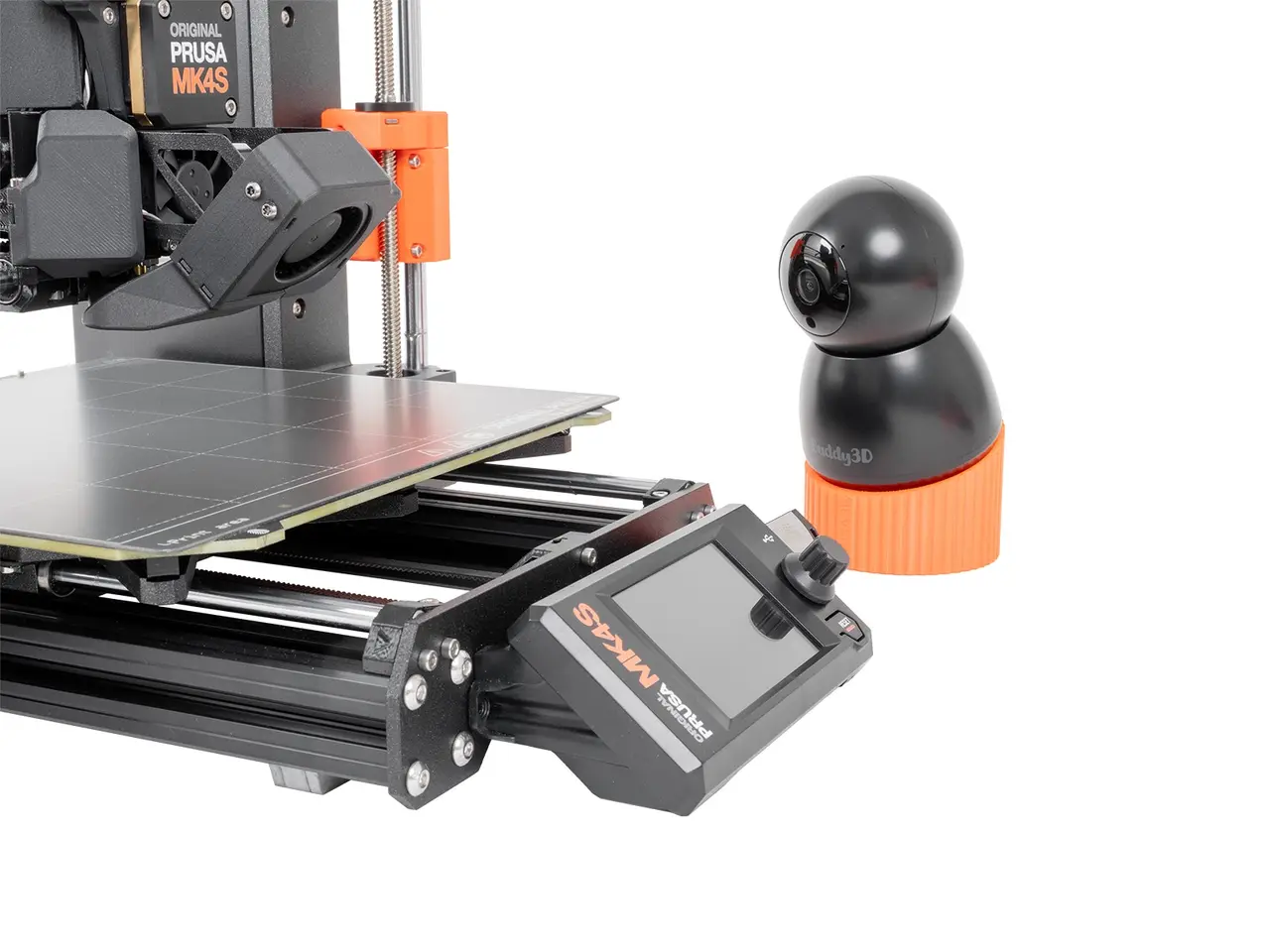

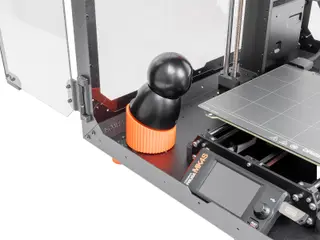

This Buddy3D Camera mount is compatible with MK Family and MINI standalone printers including MK Family and MINI in the enclosure. Please note that magnets for using the camera mount in MK & MINI enclosure are recommended. Magnets prevent accidental camera movement due to vibration while using the printer, the recommended position is in the top front left corner in order to achieve clean image without affecting the LED strip. recommended magnet size : 20x6x2mm - Neodymium magnet (4 Pcs). You can find them on our eshop.
Recommended settings: Default 0,2mm layer height profile, PETG filament, supports are not needed.
How to guide Installation: - For MK_MINI_Mount please prepare- MK_MINI_base (1 pc) - MK_MINI_Twist_lock (1 pc) - Screw M3x10
- For MK_MINI_Enclosure Mount please prepare- MK_MINI_ENC_base (1 pc) - MK_MINI_Twist_lock (1 pc) - Screw M3x10
- Info: The rest of the guide is the same for the both versions
- Remove the build-in support structure from MK_MINI_Twist_lock. - Connect the two plastic parts and screw the M3x10 screw into it.
- Twist and lock the camera into the mount - Step 1
- Step 2
- Step 3
