Missile Pod-style Battery Holder AA/AAA /3Hatch Type

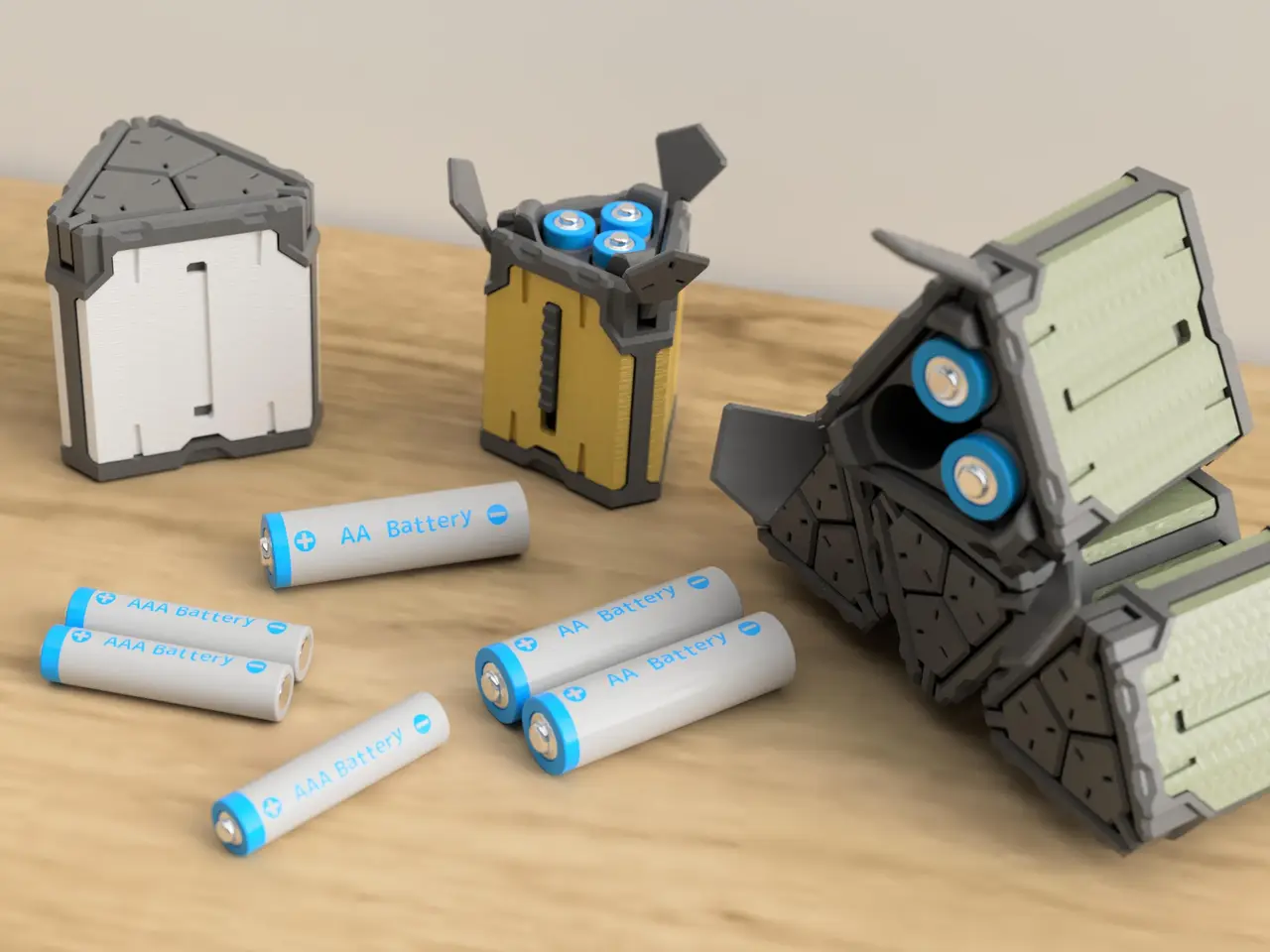

Click here for 2 hatch type / 4 batteries included https://www.thingiverse.com/thing:5572757 Click here for the improved Version 2.0 with easier assembly, pre-configured 3MF profiles, and easier support removal. https://makerworld.com/models/3052902 Missile pod style AA and AAA battery holders. I made two types for AA and AAA. Since the cowl part is a separate part, it can be printed in a different color. "aax3-pod case-body" and "aax3-pod case-cowl" are for AA. "aaax3-pod case-body" and "aaax3-pod case-cowl" are for AAA. Please refer to the stl data and video of "others-assembly_reference" for assembly and usage. Please enjoy combining the stl data of "others-aaa-x3-plastic model robot flight bracket" with figures and plastic models of robots. This file is provided as a free sample for personal, non-commercial use only. Please do not re-upload this file to other platforms. Feel free to support me at:

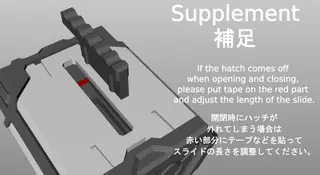

Please refer to the stl data and video of "others-assembly_reference" for assembly and usage. *For 18650 batteries (output unconfirmed) When the scale of "aax3-pod case-body" and "aax3-pod case-cowl" is multiplied by 1.286 when outputting, it becomes the size of 18650 battery. Reference for print settings Recommended layer height 0.2mm. Shell 3loops Infill 10% Top thickness 1mm Bottom thickness 1.5mm All data can be 3D printed without support on FDM 3D printers. Use a nipper to cut the small triangular support on the part where the cowl of the "pod case-body" attaches. There is a 0.2mm gap in the height direction of the small triangular support of the "pod case-body". *supplement Depending on the conditions of the printer, slicer settings, filament, etc., the hatch may be hard to open and close after printing. Be careful when opening and closing the hatch for the first time. Before assembling, move the hatch part repeatedly so that it opens and closes smoothly. If the interfering part is not smooth during temporary assembly, it can be improved by slightly finishing the steps of the layers with sandpaper. If the hatch comes off when opening and closing, please adjust the length of the slide by pasting tape etc. on the red part of the supplementary image.
