Mintion Nozzle Cam SV08 Mount
por 2nd Layer Printing Designs en Thangs
Lights, Camera, Printing! Mount for the Mintion Nozzle Cam for the Sovol SV08!
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a 2nd Layer Printing Designs.
Archivos (2)
- Mintion Nozzle Cam Mount.stl STL · 2,0 MB
- Mintion Nozzle Cam.step STEP
- Categoría
- Para tu impresora
- Formatos
- STL, STEP
- Descargas
- 71
- Publicado
Sobre este modelo
Lights, Camera, Printing! Mount for the Mintion Nozzle Cam for the Sovol SV08!

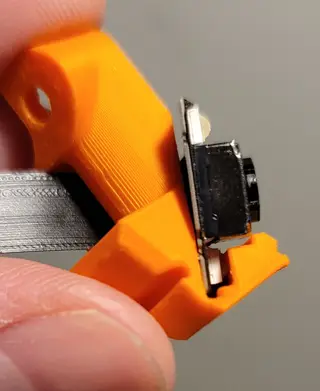

UPDATE: V2.2 lets you wrap the flex cable much easier around the mount! See pics for details. There's even space for the zip ties Mintion includes to secure the cam.

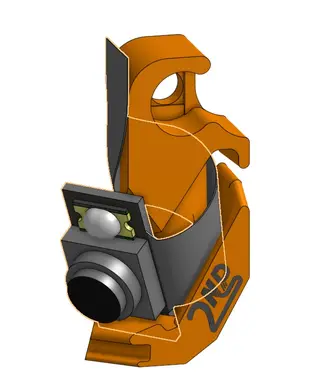

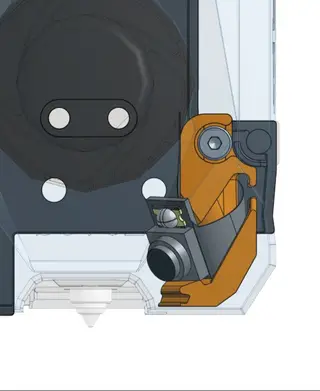

Absolutely LOVE nozzle cams, and with integrated lights and Obico, Mintion hit this one out of the park! Fits in the OEM SV08 toolhead, just need a longer M3 screw. Hopefully gives a good view with lights! I've also included a mock-model of the actual cam pcb and daughter board as well. CAD available here! (tinyurl.com/2lpsv08) Recommended printed in ABS/ASA for temperature resistance, see pics for slicing help (careful with the supports!!), 3 walls, 0.08mm layer height.
