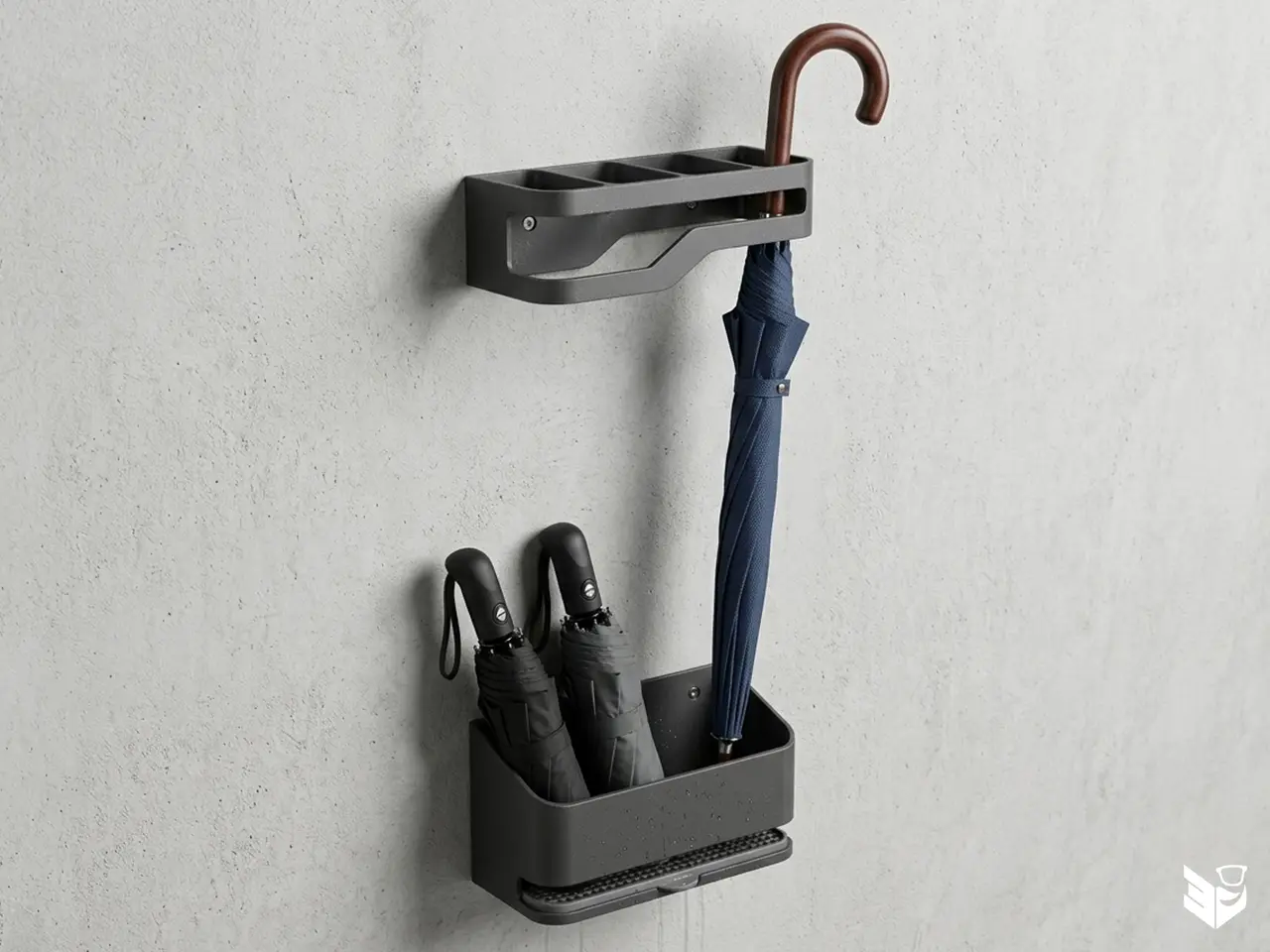

Minimal Wall-Mounted Umbrella Holder (M5 Screw Mount)

A sleek, modern, and space-saving wall-mounted umbrella holder designed for direct wall mounting using standard M5 countersunk screws. Features a smart two-part modular design to keep both long umbrellas and folding/compact umbrellas neatly organized while keeping your entryway clean and dry. 🛠 Community & Support - Do you like this design? Community support is what turns ideas into new free files (and keeps my printer fed with filament!): - ⭐ Leave a Like: It costs nothing, prevents wet filament, and motivates me to keep designing! - 📸 Share a Make: I love seeing my designs printed in wild colors and fancy filaments. - 🚀 Follow Vinors3DLab: Hit that Follow button so you don't miss upcoming releases, extra modules... and to keep the algorithm happy! 🤖

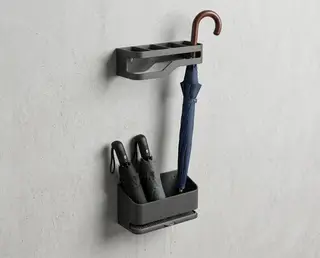

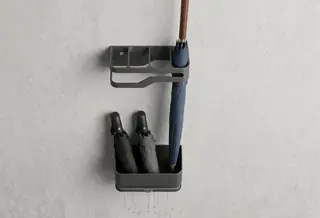

✨ Key Features - Slim Profile: Only 80 mm depth, perfect for narrow hallways, entryways, and space behind doors. - Flush M5 Screw Mount: Includes integrated countersunk holes on the back wall for robust, secure, and flush mounting. - Dual Independent Modules:- Top Module (Guide): Holds long umbrellas upright with dedicated slots. - Bottom Module (Tray): Accommodates up to 2 compact/folding umbrellas and holds the tip of long umbrellas.

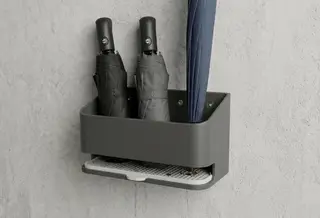

- Drip Tray with Removable Grid: Includes a removable mesh drip tray with a pull tab for quick cleaning, preventing umbrella tips from sitting in stagnant drainage water. - Support-Free FDM Printing: Geometry fully optimized for 3D printing without supports on standard printers ($250 \times 250 \times 250 \text{ mm}$).

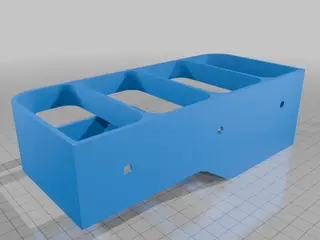

📐 Technical Dimensions - Top Module (Guide): $200 \text{ mm} \times 80 \text{ mm} \times 50 \text{ mm}$ - Bottom Module (Tray): $200 \text{ mm} \times 80 \text{ mm} \times 100 \text{ mm}$ - Total Depth: $80 \text{ mm}$ - Mounting Holes: Countersunk for M5 screws

🖨️ Recommended 3D Print Settings - Material: PETG or ASA (highly recommended for excellent moisture and water resistance); PLA can be used if coated or sealed. - Layer Height: $0.20 \text{ mm}$ or $0.28 \text{ mm}$ - Walls / Perimeters: At least 3 – 4 perimeters to ensure the lower tray is completely watertight. - Infill: $15\% – 20\%$ (Gyroid recommended). - Aesthetic Finish (Optional): Enable the Fuzzy Skin option in your slicer on outer walls for an industrial matte textured surface.
