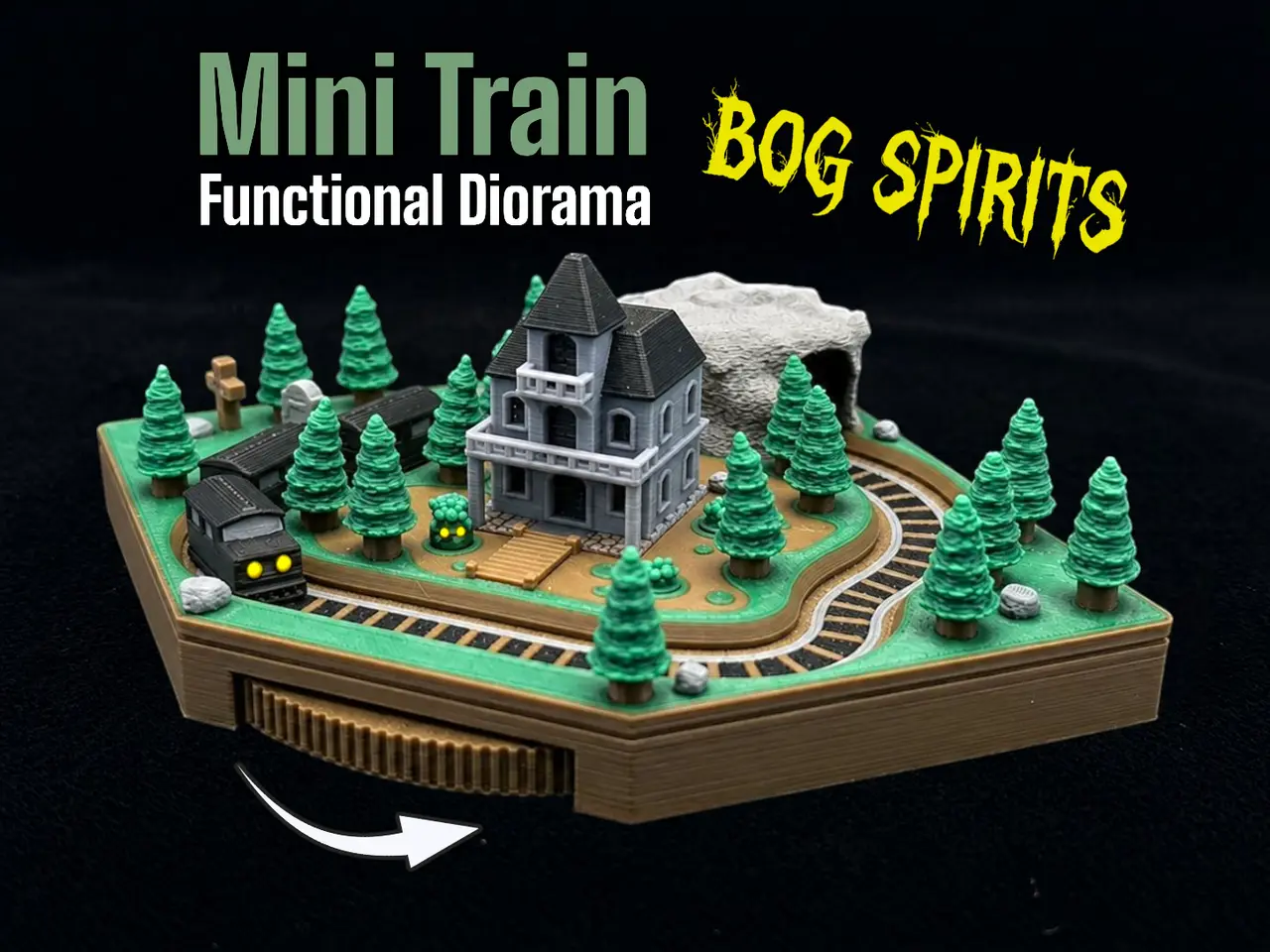

Mini Train - The Bog Spirit Diorama

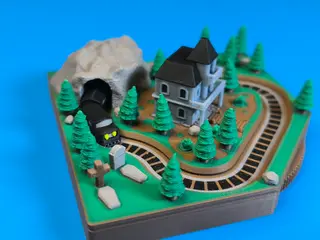

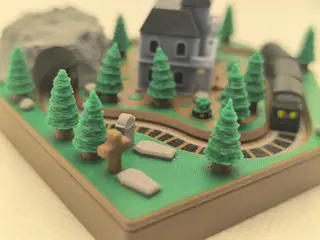

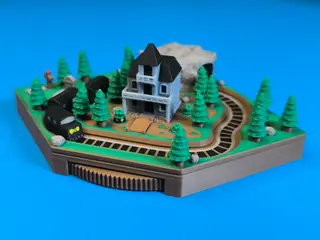

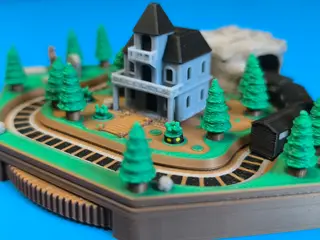

The Bog Spirit Diorama (Mini train Functional Diorama) A new Mini Train Diorama just in time for Halloween! Deep in a dark, eerie spruce forest stands a lonely house surrounded by a mysterious bog.

But beware! As you turn the hand-wheel, not only does the spooky ghost train wind its way through the haunted landscape, the cute little bog spirits also raise their heads from the swamp as the train passes by! A little Halloween magic for your Mini Train collection!

Boost MeSupport the Mini train series with a sweet boost! Thank you Explore the Collection

Besides manual operation, there are now several ways to motorize the trains:

- https://makerworld.com/models/1124663

- https://makerworld.com/models/1630995

- https://makerworld.com/models/1657124

- https://makerworld.com/models/1886257

- https://makerworld.com/models/3271020

Example with CyberBrick motorization Printing: Note that some parts are very small. Good adhesion is necessary! Clean your Build-plate please.

Following PLA Basic Filaments are used:

- Black

- Blue Grey

- Nardo Grey (Matte)

- Cocoa Brown

- Mistletoe Green

- Yellow

Other colors are possible of course, look what you have in stock. I think it could be easy done with single color, if you want to color from hand.

The diorama you see is printed with a 0,4mm nozzle! Iam very pleased with the result, but you can try a 0,2 nozzle for more details, as well. Assembly: 6pcs Round 4x2mm Magnets are needed Insert three pcs round 4x2 magnets into the train and three more into the pins but with opposit magnetic orientation. Pins and Train must attract each other. You can also use a bit of superglue if the fit is to loose. Press the 2 ramps into the Hand-wheel. You can also use a bit of superglue if the fit is to loose. Insert the 4 bog spirits from underneath. Insert an individual train section from underneath and a magnetic pin from in the inner track so that they hold each other in place. Repeat for the other train sections. Push the hand wheel in spot. Make sure all 3 pins are captured from the slots. Terrain on top and fix position with the trees and cross. Use carefully super glue. (Do not glue the bog spirits accidentally)

Happy Printing: I hope you like this little project and the whole series. If you want to support me, you can simply follow, boost & like the model.

You want to sell printed parts from my designs? Commercial license you get at my Makerworld profile or on Patreon: https://www.patreon.com/BamBamDesign/
