Mini FPV Tricopter
por Eric Maglio en Thingiverse
Here's my latest design, a 3D printed mini tricopter. I wanted an FPV racer, but also something that would stand out from the masses of other minis out there. It's either 250 or 280 size depending on the arms installed. Complete specs: - SunnySky 2204 2300kV motors - Gemfan 5x3 Props - Magic 12A...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Eric Maglio.
Archivos (13)
- Front_Arm.stl STL · 201 KB
- Battery_Tray.stl STL · 77 KB
- Front_Arm_280mm.stl STL · 201 KB
- Tail_Arm.stl STL · 151 KB
- Frame_Top.stl STL · 540 KB
- Battery_Cover.stl STL · 168 KB

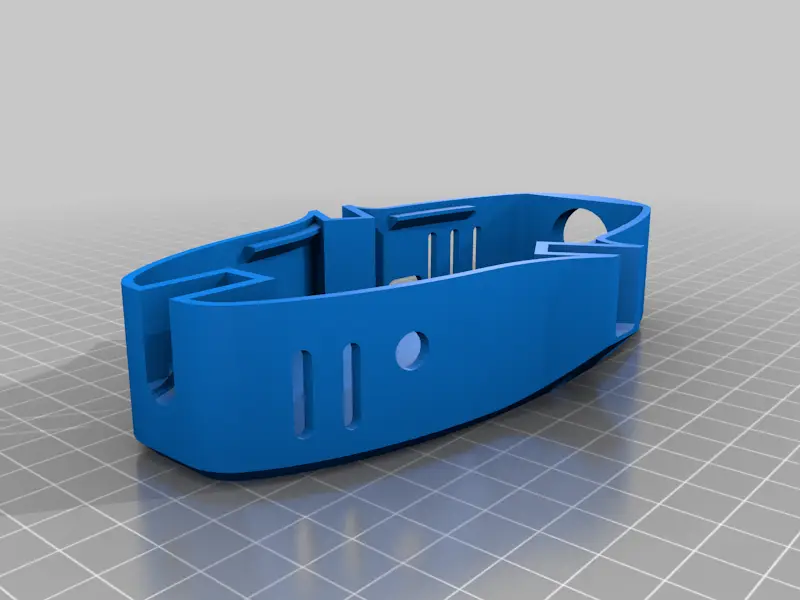

- Frame_Bottom.stl STL · 747 KB
- Tail_Arm_280mm.stl STL · 156 KB
- Tail_Motor_Mount.stl STL · 209 KB
- Tail_Motor_Mount.stp STP · 114 KB
- Front_Arm.stp STP · 122 KB
- Front_Arm_280mm.stp STP · 122 KB
- Alternate_Frame_Bottom_for_7mm_Antenna_Adapter.stl STL · 950 KB
- Categoría
- Repuestos
- Formatos
- STL, STP
- Descargas
- 17,692
- Publicado
Sobre este modelo

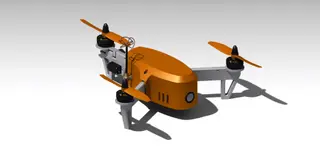

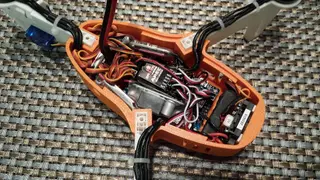

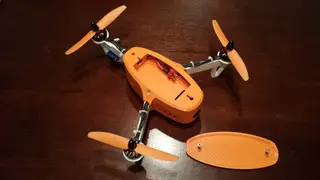

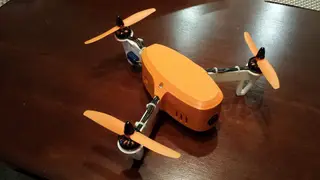

Here's my latest design, a 3D printed mini tricopter. I wanted an FPV racer, but also something that would stand out from the masses of other minis out there. It's either 250 or 280 size depending on the arms installed. Complete specs: - SunnySky 2204 2300kV motors - Gemfan 5x3 Props - Magic 12A ESCs with SimonK - Glacier 3S 1000mah Battery - Naze32 Flight Controller - HS-55 Tail Servo - PZ0420M FPV Camera - HobbyKing TS5823 Mini Video Transmitter - 6x M3x14mm screws for the body/arm connections - 2x M3x8mm screws for the battery cover - 1x M3x35mm screw, 2x M3 washers, and 1x M3 lock nut for the tail I sell kits for those without 3D printers, though I have a feeling that everyone on here would rather print one for themselves. Enjoy!
Descripción original del autor, publicada en Thingiverse.
