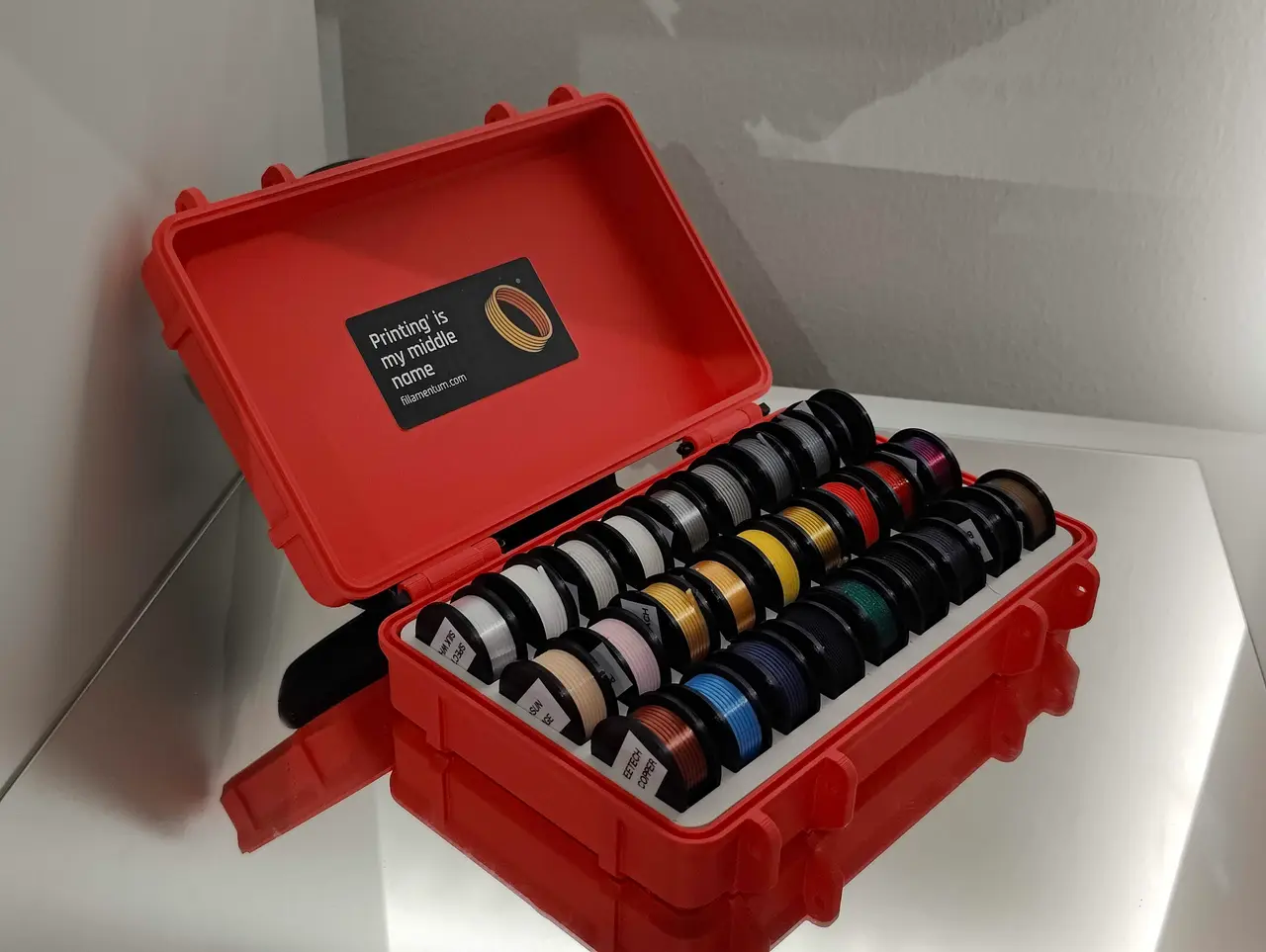

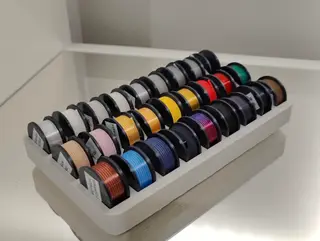

Mini Filament Spool Swatches Box

This is combination of multiple remixes to create filament spool swatches box that holds 27 spools. Fun way to see what colors of filament you have in stock and sometimes the raw color is different from printed one. I added filament brand and name to side of spool. Print settings - 0.2mm layer hight - Supports: Box.stl requires supports, other files doesn't - Bottom fill pattern: Concentric on textured PEI buildplate - Spool settings: 0.4mm nozzle or under. Enable detect thin walls or use arachne perimeter generator- I would also set extrusion width, external perimeters to automatic (0) (PrusaSlicer)

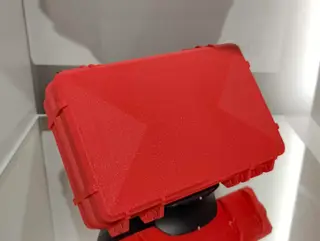

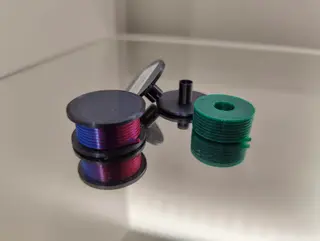

Filament color roll takes around ~15min to print. Tip for PrusaSlicer users. Add filament roll model in shapes gallery, so that when printing something with new color its easy to throw in there. What is modified from original authors - Prusament Spool Token (alex_3dprint) - spool honeycomb removed as scaling it down makes it not printable - Rugged Box (Whity)- changed size to match filament insert - Filament Spool Knob (DaHaubi)- Filament roll modified and resized - Small Spool swatches Box (KilianHerbst)- as is

Hardware - 6x M3 30mm screws for hinge and latch

Edit 19.7.2023 - Added adjusted_box. Supports no longer required. Thanks for the fix @MakeAUsername_285162

Edit 9.4.2023 - Box.stl requires supports

Edit 16.2.2023 - Updated latch print orientation

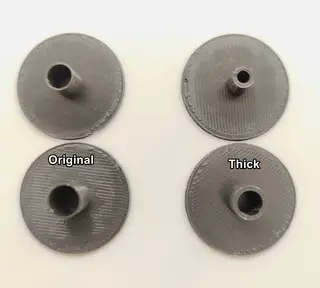

Edit 11.3.2023 - Simplified filament spool knob mesh with v2 - Added two THICK versions of filament spool to make it easier to print, high and loose tolerance, 0.1mm and 0.22mm
