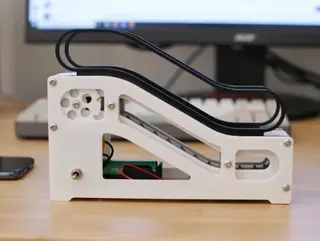

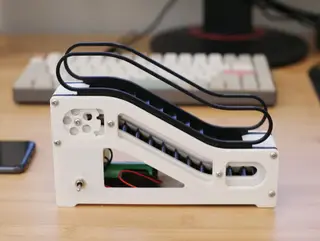

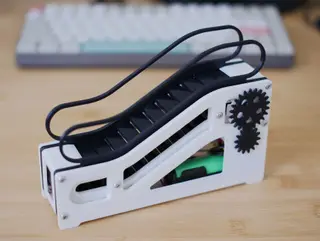

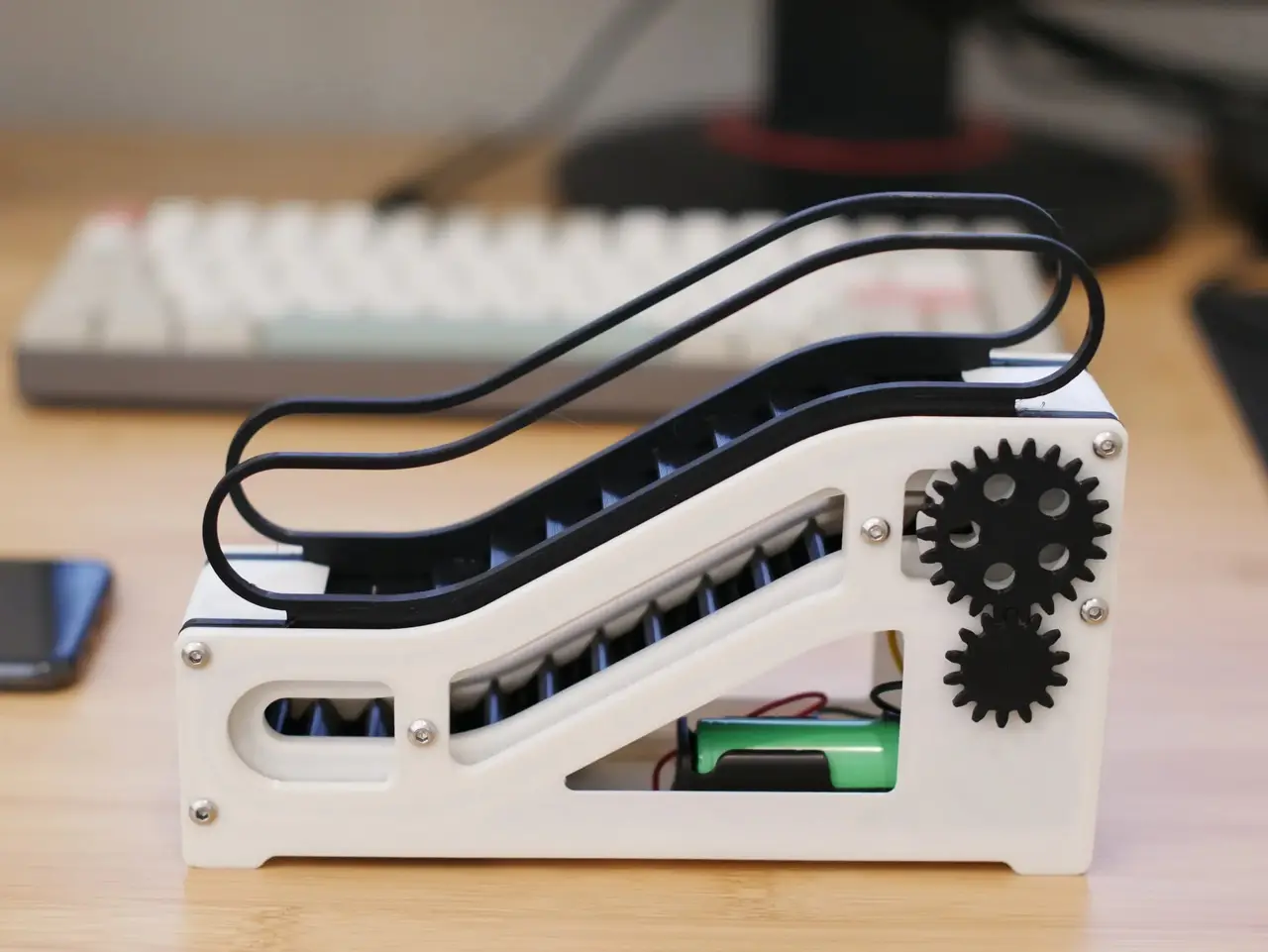

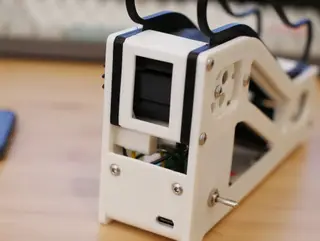

Motorized Mini Escalator

2024 update: I've released a new version of the non-motorized escalator, which contains a bunch of improvements: https://www.thingiverse.com/thing:6474393. Stay tuned for the motorized update! This is a motorized version of my mini escalator design. If you're looking for the non-motorized design, Thingiverse seems to be bugging as usual and 404s the page. You can instead find it at Printables here: https://www.printables.com/model/165271-mini-desktop-escalator This design is also available on Printables: https://www.printables.com/model/190972-motorized-mini-desktop-escalator Demo: https://youtu.be/d-7QTrCJvpQ Latest Fusion 360 file: https://a360.co/38LBZJZ You will need: - 19 M3x12mm bolts - 18 M3 nuts - N20 geared motor, 30RPM 6V - TP4056 battery charging board (USB C preferred) - 18650 battery and holder (pouch cells probably work too, just need to find one that fits) - DPDT 3-position On-Off-On toggle switch - Wires - Hot glue or double sided tape, to attach battery holder and charging board

Assembly is essentially the same as the non-motorized version, and parts are generally cross-compatible. Make sure to install the motor onto the right side outer guide before attaching the guide to the rest of the escalator. Will add a more detailed set of assembly instructions when I find the time, likely in video form.
