Milwaukee M18 battery adapter (Power Wheels upgrade) — modelo 3D

Milwaukee M18 battery adapter (Power Wheels upgrade)

por Justin en Printables

battery adapter for M18 series Milwaukee power tools.

Descargar gratis Ver en Printables

Todos los archivos (2) en un ZIP

Licencia

Solo uso personal

CC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas

Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.

Al descargar aceptas respetar la licencia y dar crédito a Justin.

Archivos (2)
Categoría
Herramientas
Formatos
STL
Descargas
3,065
Publicado

Sobre este modelo

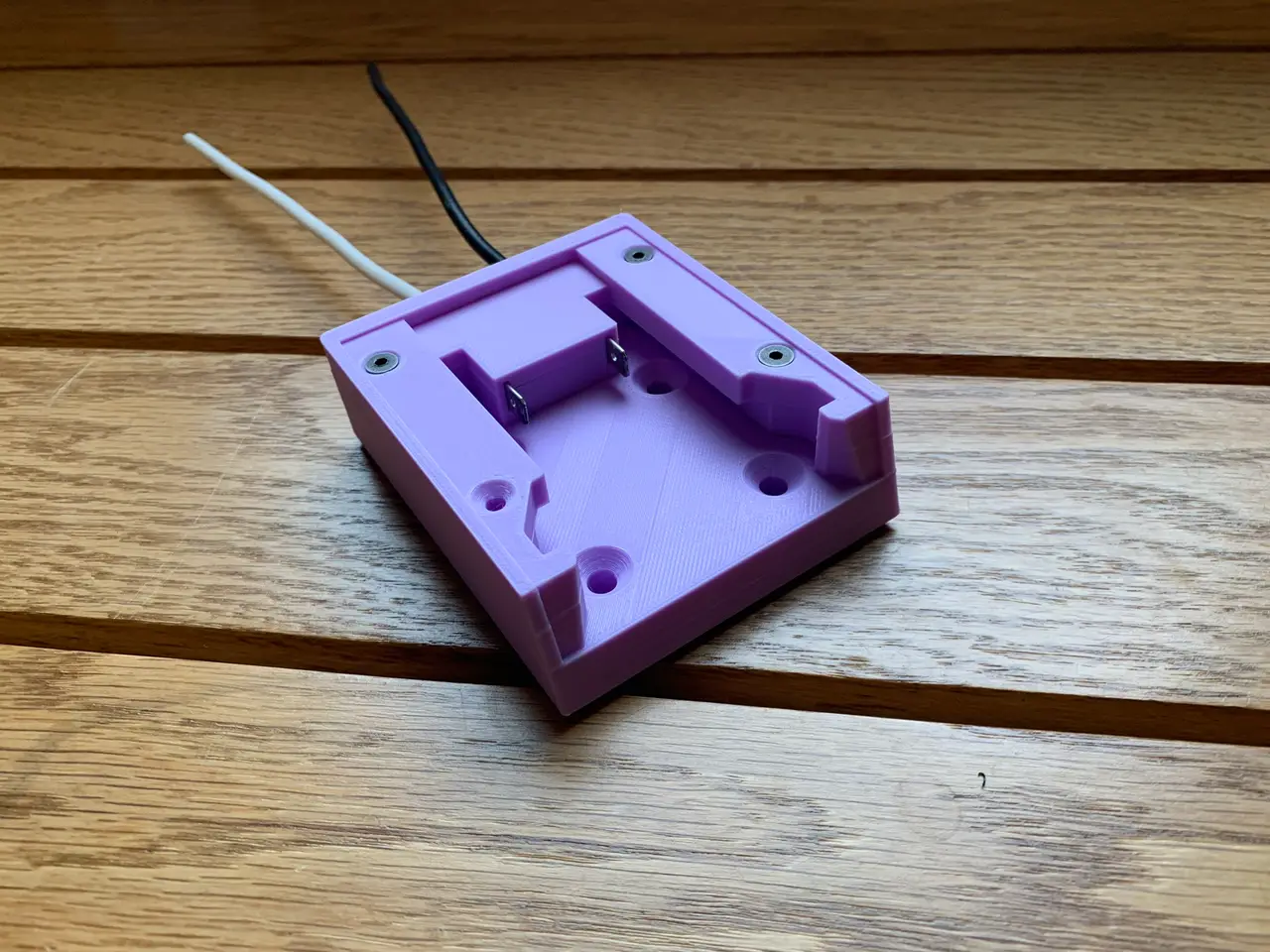

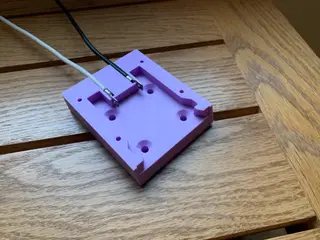

Decided to make my own version of the M18 battery adapter. This is a bit more involved than some of the others on here. Its two pieces which can be printed without supports. It uses 5 M3 flat head screws and nuts to hold together. The two halves will clamp the wires and spades in place. I used the crimp style "blue" sized spades. I removed the blue plastic sleeve and solder the wires in place. These spades come from many different places so your millage may vary with fit. Has three holes on the bottom for #8 sized wood screws or M5 bolts to hold to attached it to something. Photo shows an earlier version but the STLs have the updated screw positions.

Descripción original del autor, publicada en Printables.
