Milwaukee 2162-21 Flashlight Gridfinity 5x2

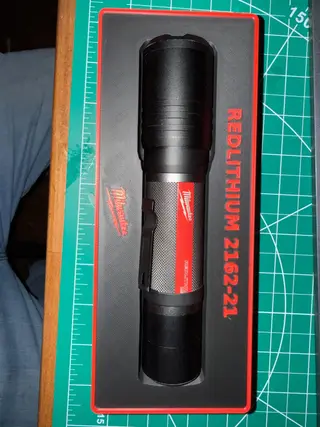

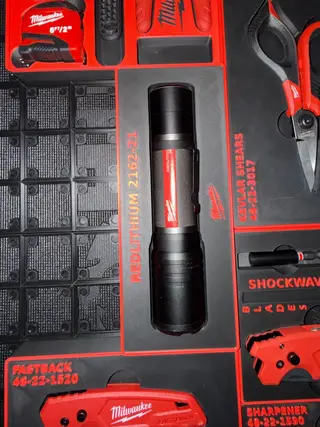

A Gridfinity tray for the Milwaukee 2162-21 REDLITHIUM USB 2,000L Slide Focus Flashlight. The light lies in a round cradle shaped to it, head to tail.

Fits

The Milwaukee 2162-21 REDLITHIUM USB 2,000L Slide Focus Flashlight, about 7 in (178 mm) long and 38 mm across the head, measured on mine. The pocket clip can face up or to the side.

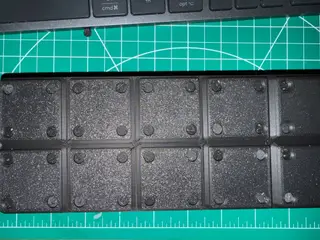

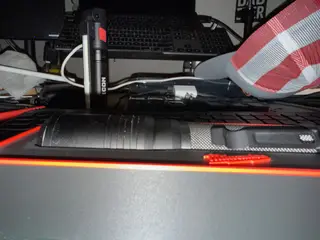

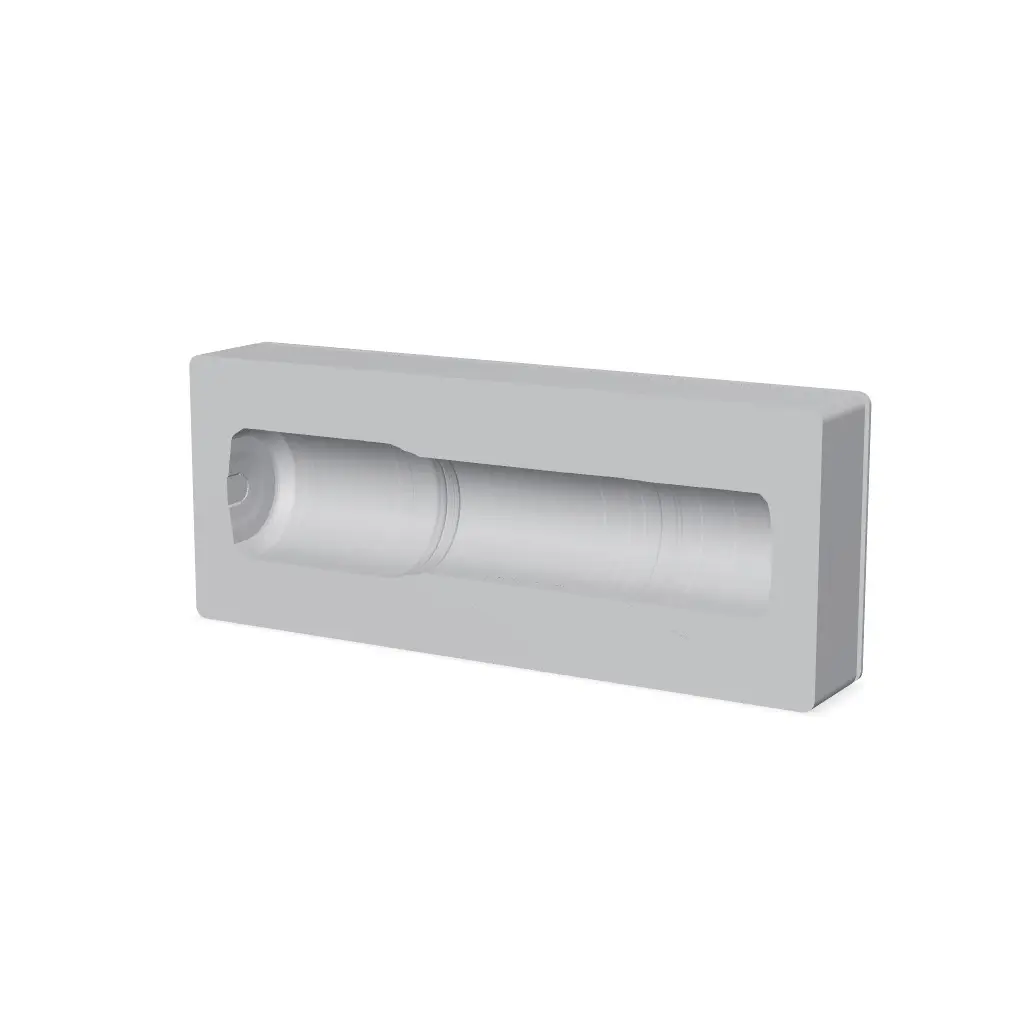

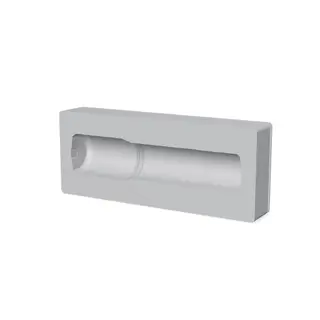

The tray - Gridfinity 5x2, 5 units tall: 209.5 x 83.5 x 35 mm, with a raised rim round the top. - The cradle follows the light's shape with about 1.5 mm all round and 2.5 mm at each end. The light stands about 13 mm proud, so it lifts straight out. - Magnet pockets in every foot (6.5 x 2.4 mm, standard Gridfinity). - "REDLITHIUM 2162-21" and the Milwaukee wordmark are raised either side of the light. A version without the wordmark is included; it keeps the REDLITHIUM 2162-21 label.

Printing - No supports. - Two colours: body in filament 1, rim and lettering in filament 2. Mine is PLA Matte Charcoal with PLA Matte Scarlet Red. - About 2 h 34 min and 87 g on an H2D with 0.2 mm layers. The no-logo version is about the same. - One colour: use the STL. - The 3MFs are Bambu Studio projects for the H2D; any slicer can open the STLs. - Not sure about the fit? The test-fit ring is a 3 mm outline of the cradle and prints in about 10 minutes. Lay the light in it before you commit to the full tray.

Independent design. Not affiliated with or endorsed by Milwaukee Tool. "Milwaukee", "REDLITHIUM" and the part number name the tool this tray fits.

Licence: CC BY-NC-SA 4.0 (Creative Commons Attribution-NonCommercial-ShareAlike). Print it, remix it, share it, credit me. Please don't sell prints of it.
