Milwaukee 2016R Flat Flashlight Gridfinity 4x2

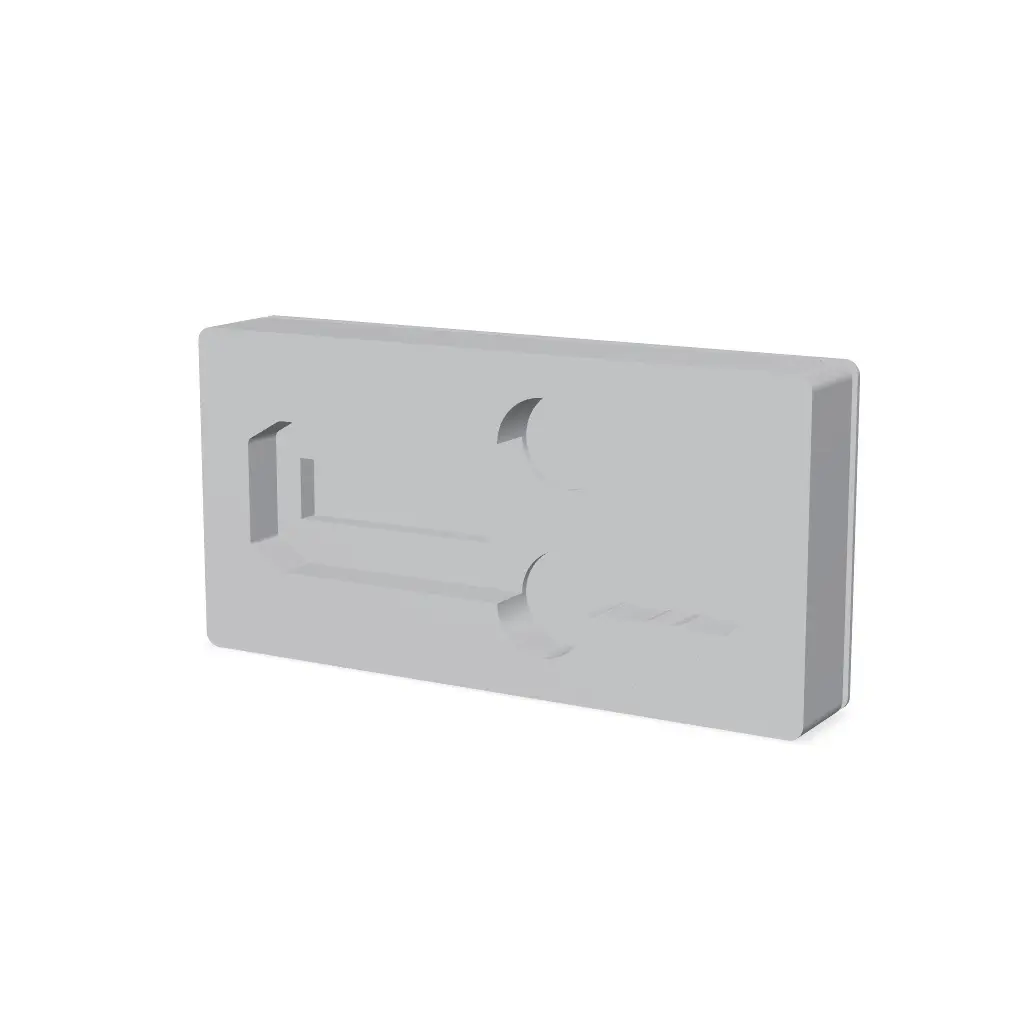

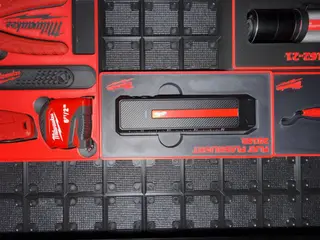

A Gridfinity tray for the Milwaukee 2016R Rechargeable Flat Flashlight w/ Green Laser. The light lies face up in a pocket shaped to it, with a channel underneath for the pocket clip.

Fits

The Milwaukee 2016R Rechargeable Flat Flashlight w/ Green Laser, 5.27 x 1.38 x 0.65 in (133.9 x 35.1 x 16.5 mm). The clip stays on.

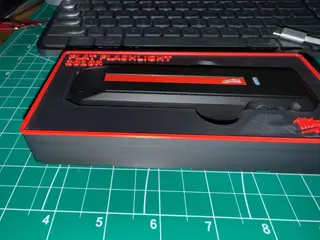

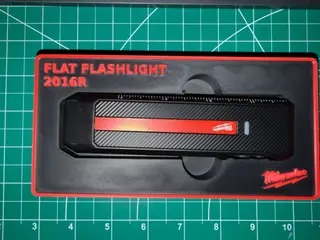

The tray - Gridfinity 4x2, 4 units tall: 167.5 x 83.5 x 28 mm, with a raised rim round the top. - The pocket follows the light's outline with about 2 mm all round, 12 mm deep, so the light stands about 4.5 mm proud. A finger hole on each side lifts it out. - The removable pocket clip on the back drops into a 6 mm channel under the tail end. - Magnet pockets in every foot (6.5 x 2.4 mm, standard Gridfinity). - "FLAT FLASHLIGHT / 2016R" and the Milwaukee wordmark are raised on the top. A version without the wordmark is included; it keeps the label.

Printing - No supports. - Two colours: body in filament 1, rim and lettering in filament 2. Mine is PLA Matte Charcoal with PLA Matte Scarlet Red. - About 2 h and 68 g on an H2D with 0.2 mm layers. The no-logo version is about the same. - One colour: use the STL. - The 3MFs are Bambu Studio projects for the H2D; any slicer can open the STLs. - Not sure about the fit? The test-fit ring is a 3 mm outline of the pocket and prints in about 9 minutes. Lay the light in it before you commit to the full tray.

Independent design. Not affiliated with or endorsed by Milwaukee Tool. "Milwaukee" and the part number name the tool this tray fits.

Licence: CC BY-NC-SA 4.0 (Creative Commons Attribution-NonCommercial-ShareAlike). Print it, remix it, share it, credit me. Please don't sell prints of it.
