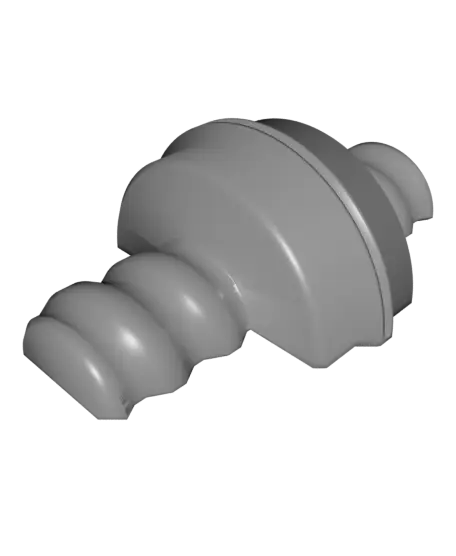

Mid Hole - Bolt Locker
por Jonathan K en Thangs
Used for bolt-locking inserts to parts that have mid holes. For example, a Base Plate (https://thangs.com/search/%22MG22%22%20creator%3A%22Keep%20Making%22?scope=thangs&view=grid) to an Insert Bracket (https://thangs.com/search/%22MB123%22%20creator%3A%22Keep%20Making%22?scope=thangs&view=grid), or
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- Mid Hole - Bolt Locker.stl STL · 427 KB
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 6,502
- Publicado
Sobre este modelo

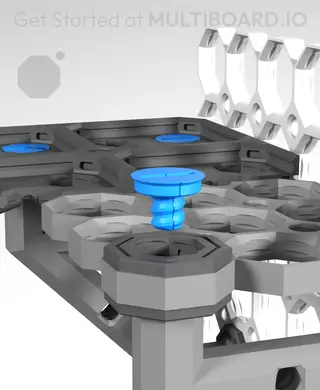

Used for bolt-locking inserts to parts that have mid holes. For example, a Base Plate (https://thangs.com/search/%22MG22%22%20creator%3A%22Keep%20Making%22?scope=thangs&view=grid) to an Insert Bracket (https://thangs.com/search/%22MB123%22%20creator%3A%22Keep%20Making%22?scope=thangs&view=grid), or a DS Snap (https://thangs.com/search/%22MB8%22%20creator%3A%22Keep%20Making%22?scope=thangs&view=grid) to an Insert.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
For more information about printer settings, click here (https://multiboard.io/knowledge-hub/printing-guidelines).
---
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
