MicroMax - SD card grip
por FH en Printables

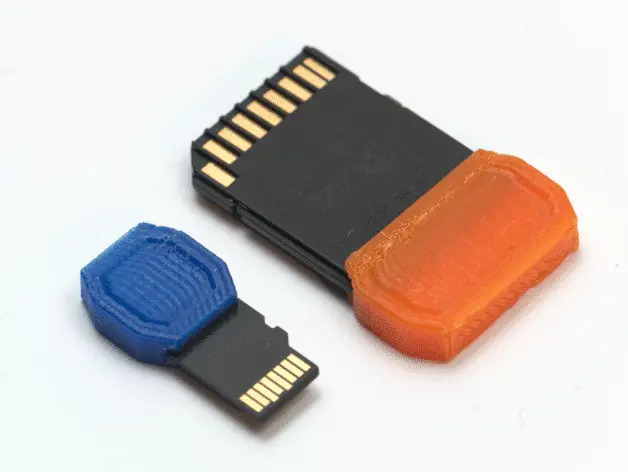

A simple yet effective grip for your SD card.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a FH.
Archivos (7)
- micromax-standard-press-fit.stl STL · 24 KB
- micromax-standard-close-fit.stl STL · 24 KB
- micromax-micro-press-fit.stl STL · 26 KB
- micromax-micro-close-fit.stl STL · 25 KB
- micromax-micro.f3d F3D · 197 KB
- micromax-standard.f3d F3D · 280 KB
- micromax-micro-press-fit_0.2mm_PLA_MINI_40m.gcode GCODE · 1,2 MB
- Categoría
- Para tu impresora
- Formatos
- STL, F3D, GCODE
- Descargas
- 12,617
- Publicado
Sobre este modelo
In order to find the perfect fit for your setup, just print a bunch of these with different scaling in Y/X-direction (+/- 10 %).

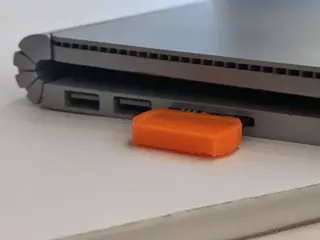

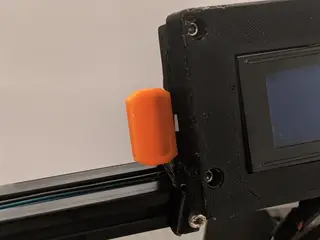

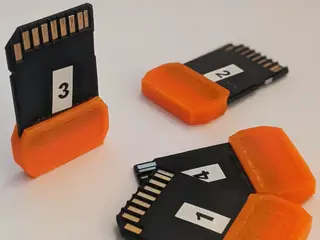

MicroMax Standard The card is recessed by 6 mm and will fit every typical card slot. I tested these with my laptop, an external card reader and the generic LCD 2004 controller. A standard SD card is 2.1 mm in thickness. Choose between two tolerance options: - Close-fit (2.25 mm) - Press-fit (2.15 mm)

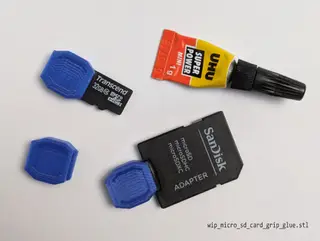

MicroMax Micro The card is recessed by only 1 mm. It still works with the push-lock mechanism of an Ender 3. The slot on the press fit version is undersized by five hundreds (0.95 mm) to compensate the shallow recess. Be careful, try to slide in the card from one side. - Close-fit (1.1 mm) - Press-fit (0.95mm)
Print Settings This model is optimized to be printed with a 0.4 mm nozzle. Activate ‘brim’ to increase bed adhesion and select a layer height below or equal to 0.2 mm.
Descripción original del autor, publicada en Printables.
