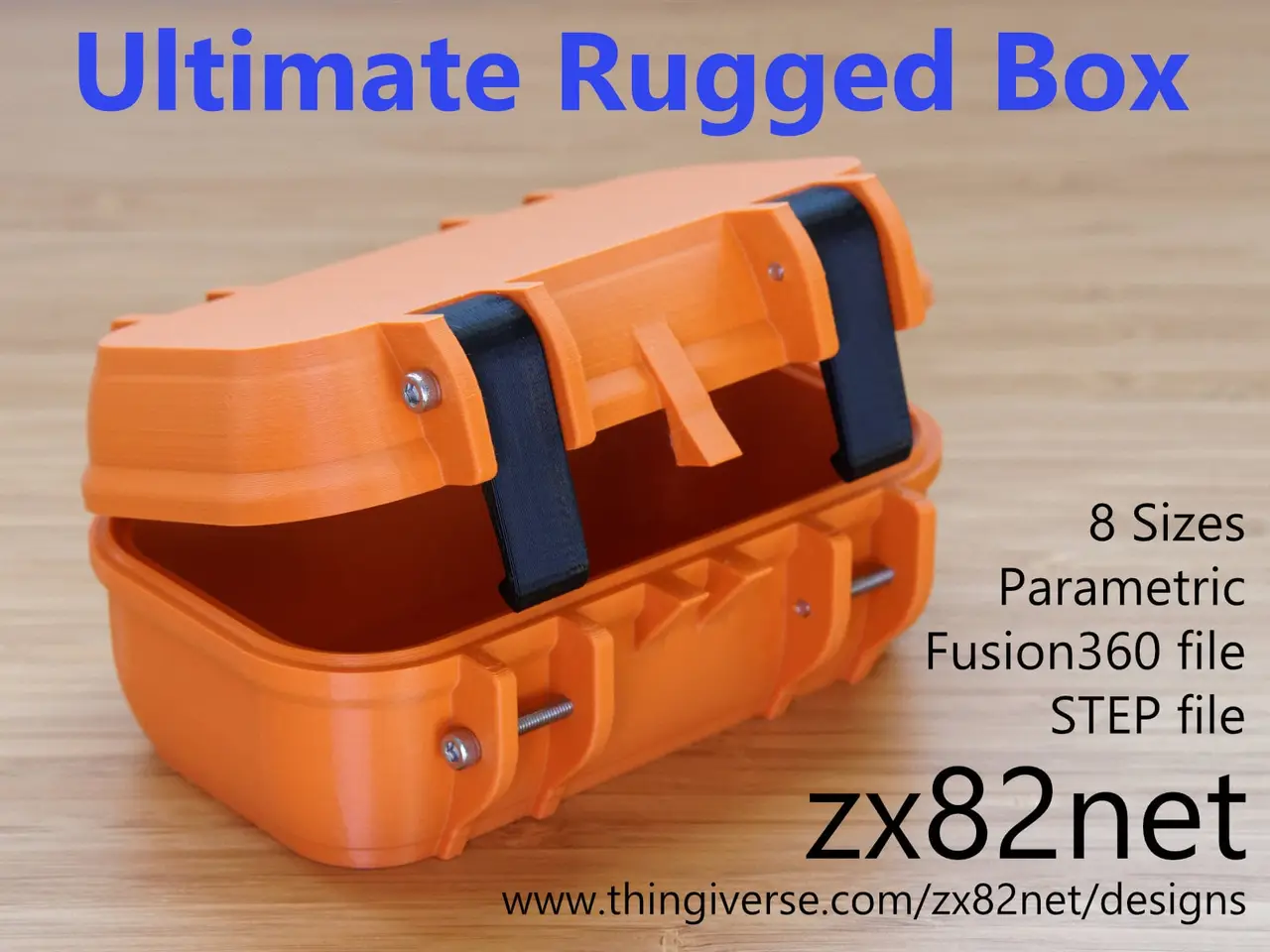

zx82net Ultimate Parametric Rugged Box - Snap Closure
por Luke Pi en Thingiverse
Remix of my original Rugged Storage Box with a new snap closure and easy two-finger opening. Check out the video: https://youtu.be/GLi2h6P3wFk and take a look at Version 2 of my waterproof box: https://www.thingiverse.com/thing:4838803 The cam-latch closure on my original rugged box is still the...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Luke Pi.
Archivos (16)
- 120x60x35_zx82net_rugged_box_2a_v1_Fill_zx82net_rugged_box_2a_v1.stl STL · 347 KB
- 120x60x35_zx82net_rugged_box_2a_v1_Top_zx82net_rugged_box_2a_v1.stl STL · 1,5 MB
- 120x60x35_zx82net_rugged_box_2a_v1_Bottom_with_Lanyard_zx82net_rugged_box_2a_v1.stl STL · 2,0 MB
- 120x60x35_zx82net_rugged_box_2a_v1_Bottom_solid_zx82net_rugged_box_2a_v1.stl STL · 1,5 MB
- 120x60x35_zx82net_rugged_box_2a_v1_Bottom_zx82net_rugged_box_2a_v1.stl STL · 1,8 MB

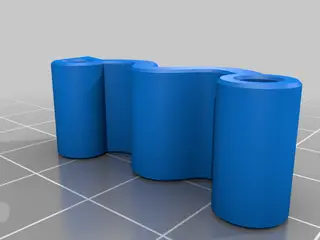

- hinge.stl STL · 766 KB
- 150x80x30mm.zip ZIP · 1,8 MB
- 180x110x50mm.zip ZIP · 1,8 MB
- 180x110x90mm.zip ZIP · 1,9 MB
- 110x60x30mm.zip ZIP · 2,0 MB
- 150x80x50mm.zip ZIP · 1,9 MB
- 160x50x130mm.zip ZIP · 2,1 MB
- zx82net_rugged_box_2a_-_Snap_Latch.f3d F3D · 2,6 MB
- zx82net_rugged_box_2a_STP.step STEP · 2,3 MB
- 160x55x35mm.zip ZIP · 2,0 MB
- Ultimate_Box_Snap_Latch_zx82net_rugged_box_2a_v2.stl STL · 140 KB
- Categoría
- Organización
- Formatos
- STL, ZIP, F3D, STEP
- Descargas (todas las plataformas)
- 55,151
- Publicado
También en
Sobre este modelo

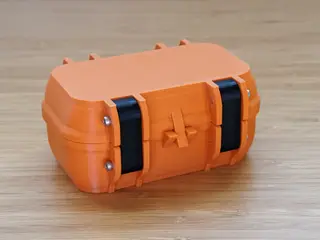

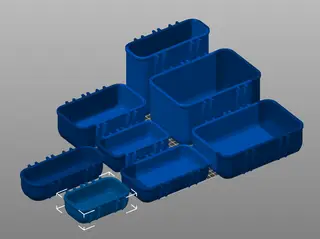

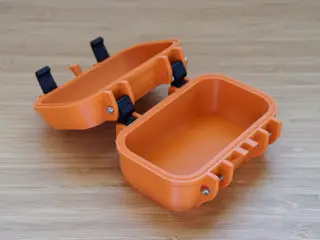

Remix of my original Rugged Storage Box with a new snap closure and easy two-finger opening. Check out the video: https://youtu.be/GLi2h6P3wFk and take a look at Version 2 of my waterproof box: https://www.thingiverse.com/thing:4838803 The cam-latch closure on my original rugged box is still the toughest 3D printed box closure of all, but I know snap closures are convenient too. I made this extra tough snap closure, which will not break because it doesn't rely on layer adhesion. Even if you do somehow manage to break it, the catch can be replaced with a single screw. Features: - Snap Closure - easy 2-finger opening - Extra tough & replaceable catch - 8 sizes - Parametric Fusion 360 archive - STEP file - Optional lanyard loop - Optional filled body stl - generate your own internal cut-out in Meshmixer
If you like it, please hit like! Requires 8x M3 x 20mm screws. Tested in PLA and PETG, should work with any rigid filament. Assembly Guide Video: https://youtu.be/at3_RNBc5bM My Universal Project Box: https://www.thingiverse.com/thing:4801005 My Original Rugged Box: https://www.thingiverse.com/thing:3338826 Check out my other designs including 3D Printed Hi-fi speaker projects and subwoofer speakers: https://www.thingiverse.com/thing:5077425
https://www.thingiverse.com/thing:4980197
Want a battery holder? Check this one out: https://www.thingiverse.com/thing:4982271
