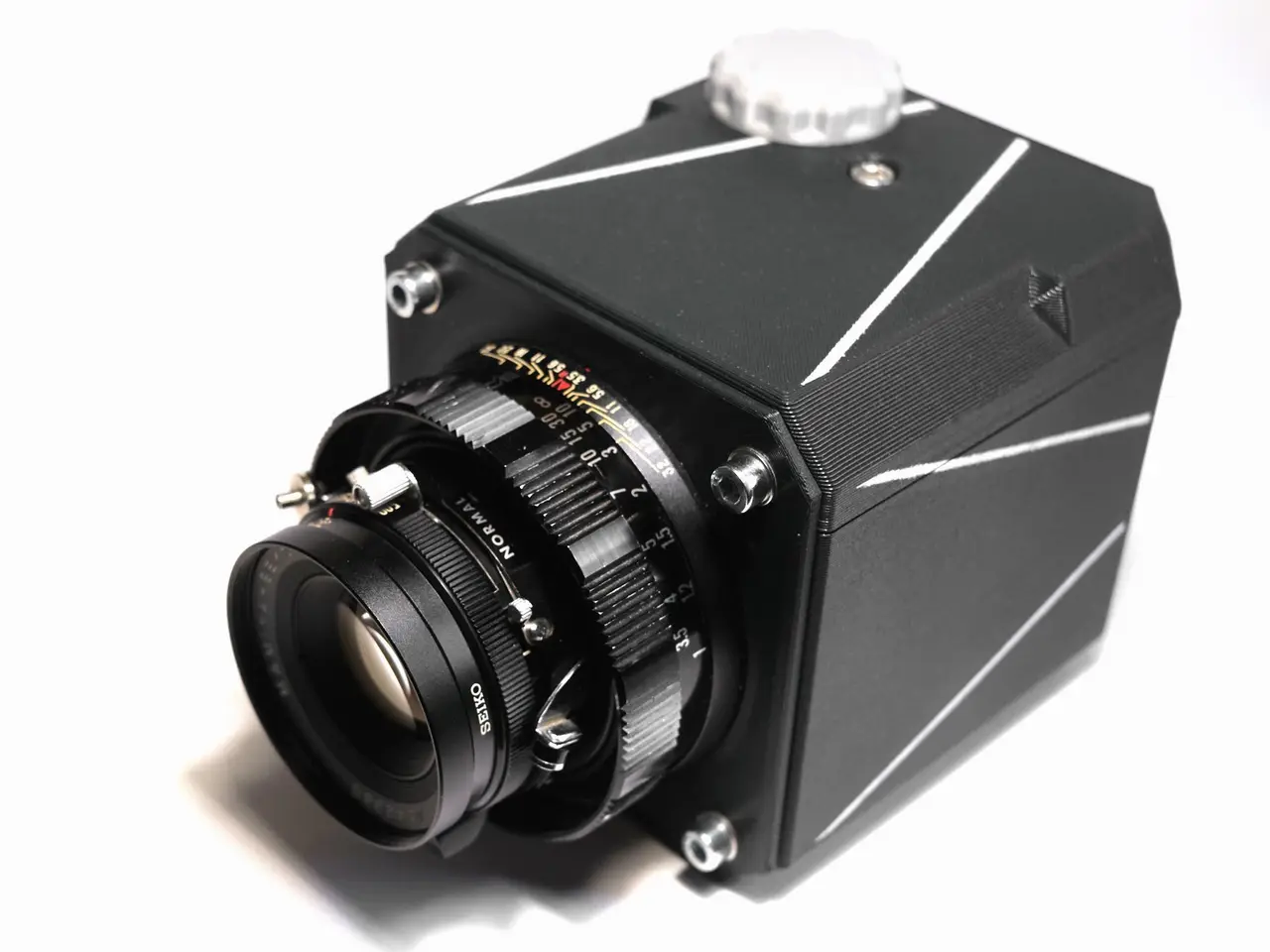

MEDIUM FORMAT CAMERA - VERSION 2

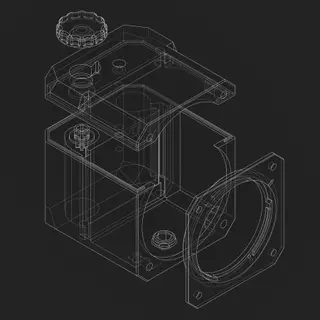

I uploaded a video where I show the design and assembly process. I tried making the camera as simple as possible, but some parts might be difficult to get. The ratchet wrench components used for the film advance mechanism are totally worth it: makes the winding experience very satisfactory. If you can't find the exact same wrench (or another different that works) there is a remix with a 3D printed mechanism. The metal rods could also be 3D printed or modified in the design. Parts list: - 4 M5x20mm screws for the front part. - 1 M5x30mm screw for the top part (an M5x20mm is also suitable). - 5 M5 7mm long threaded inserts (shorter ones are also suitable). - 4 washers (optional). - 1/4"-20 nut (for the tripod mount. Keep in mind that the one I used was a blind one. If you are using normal nut, you'll need to print the ‘Nut cap’ stl).

Compatible lenses: All Mamiya Press lenses. For any further information don't hesitate to contact me via [email protected], @fdezjavier on Instagram or leave a comment.
